| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 42AWG |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Custom 42 AWG Poly Wire Blue Enameled Copper Wire For Guitar Pickup | Insulation: | Poly Coated |
|---|---|---|---|
| Size: | 42AWG | Application: | Guitar Pickups Coils |
| Quantity: | 2kg/roll | Key Word: | Custom 42 AWG Poly Wire Blue Enameled Copper Wire For Guitar Pickup |
| Highlight: | Custom Guitar Pickup Wire,42 AWG Guitar Pickup Wire,Blue Enameled Copper Guitar Pickup Wire |
||

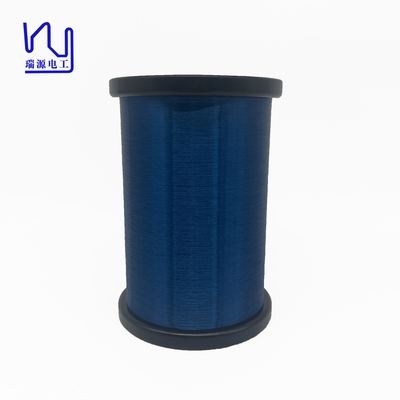

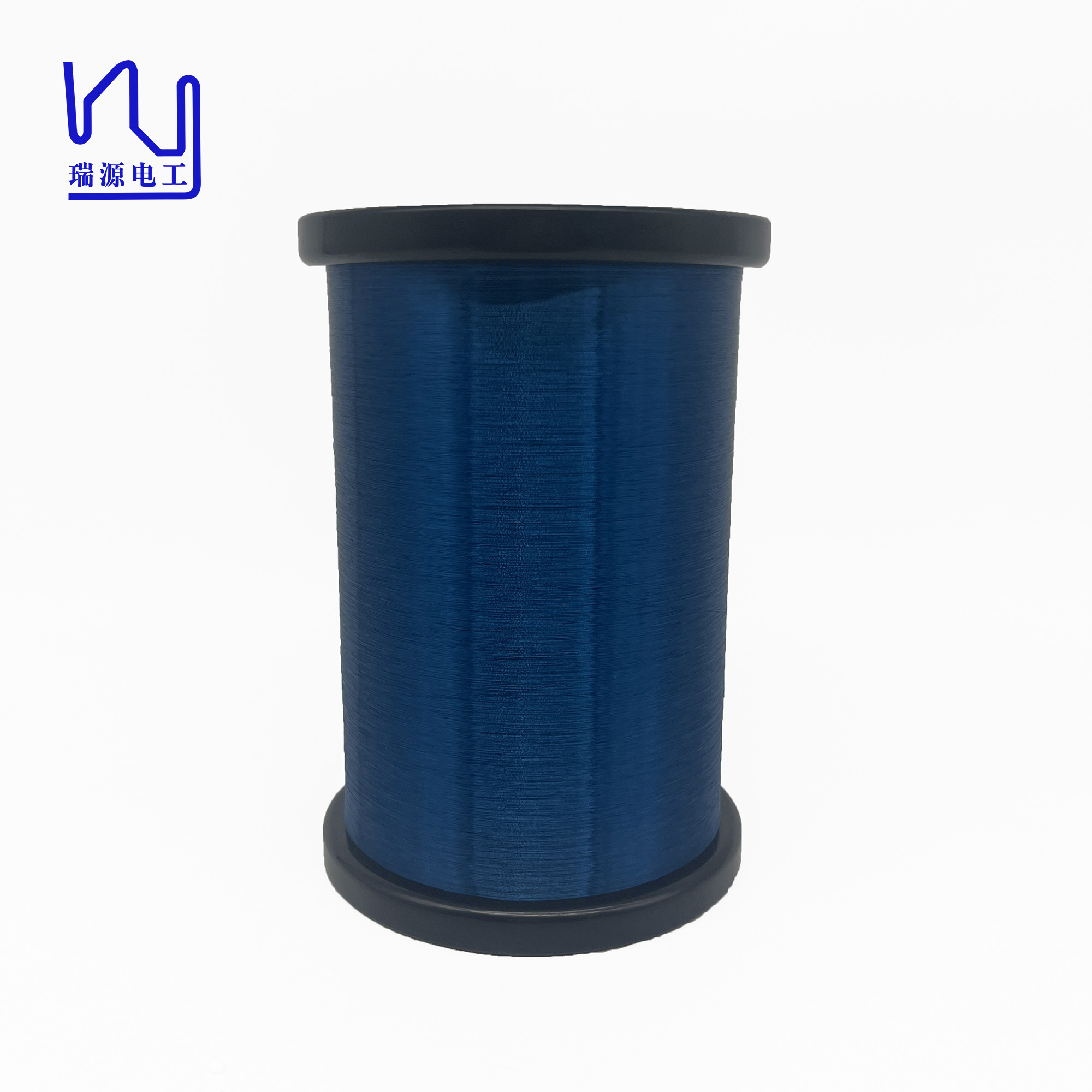

Custom 42 AWG Poly Wire Blue Enameled Copper Wire For Guitar Pickup
The wire features standard diameter 42 AWG wire, which is ideal for achieving the sound and performance you need. Each shaft is approximately a small shaft, and the packaging weight ranges from 1kg to 2kg, ensuring convenience and ease of use.
We are proud to offer test samples as well as small batch customization options with a minimum order quantity of 10kg. Whether it's color or size, we can customize wires to your exact requirements.
|
Characteristics
|
Technical requests
|
Test Results |
|||
|
Sample 1 |
Sample 2 |
Sample 3 |
|||
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
