| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 42AWG |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Custom Purple Color Enameled Copper Wire Poly Magnet Wire For Guitar Pickup Windings | Insulation: | Poly Coated |
|---|---|---|---|
| Size: | 42AWG | Application: | Guitar Pickups Coils |
| Quantity: | 2kg/roll | Key Word: | Custom Purple Color Enameled Copper Wire Poly Magnet Wire For Guitar Pickup Windings |
| Highlight: | Guitar Pickup Windings Enameled Copper Wire,Poly Magnet Wire Enameled Copper Wire,Custom Purple Color Enameled Copper Wire |
||

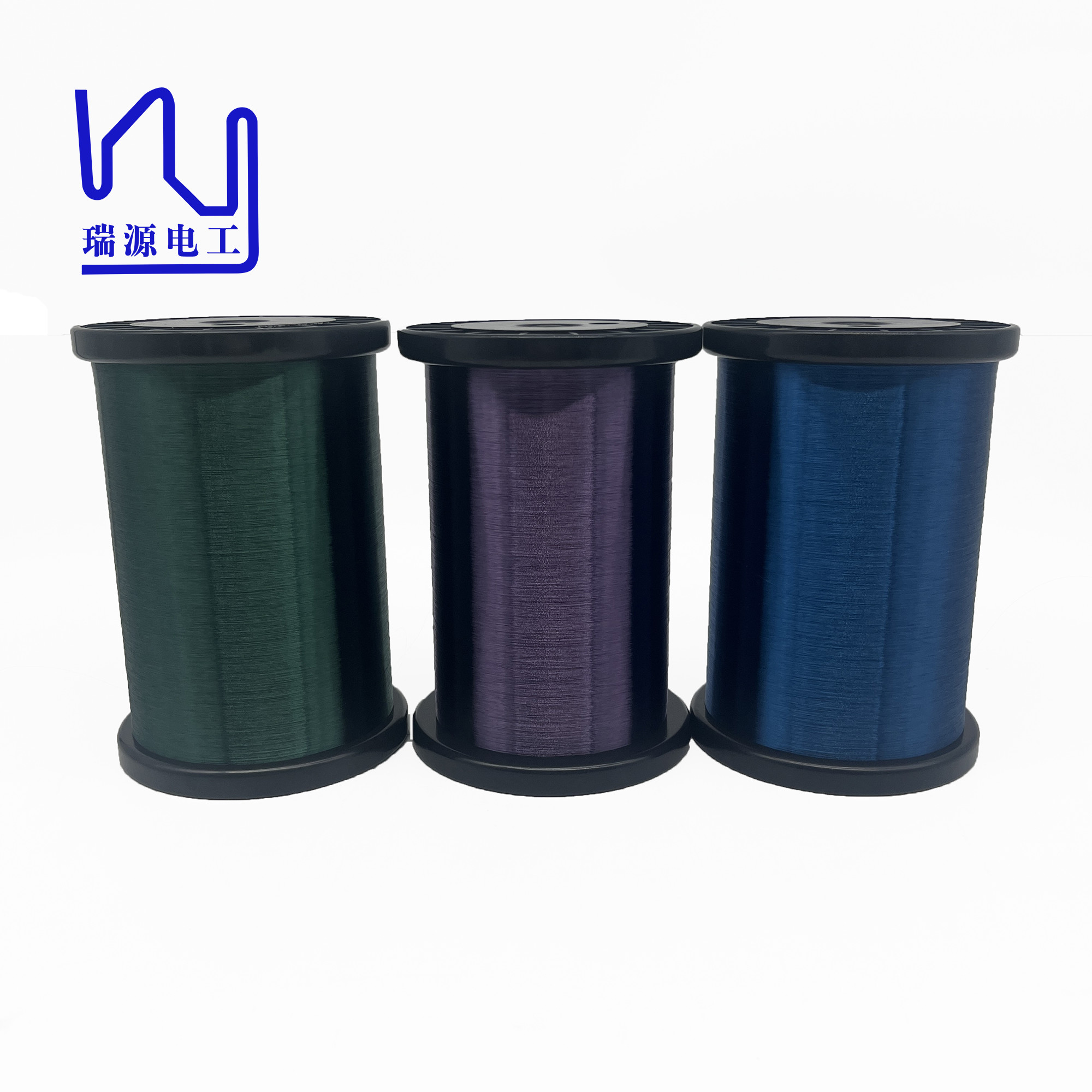

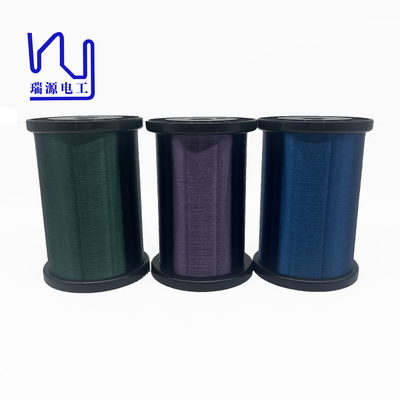

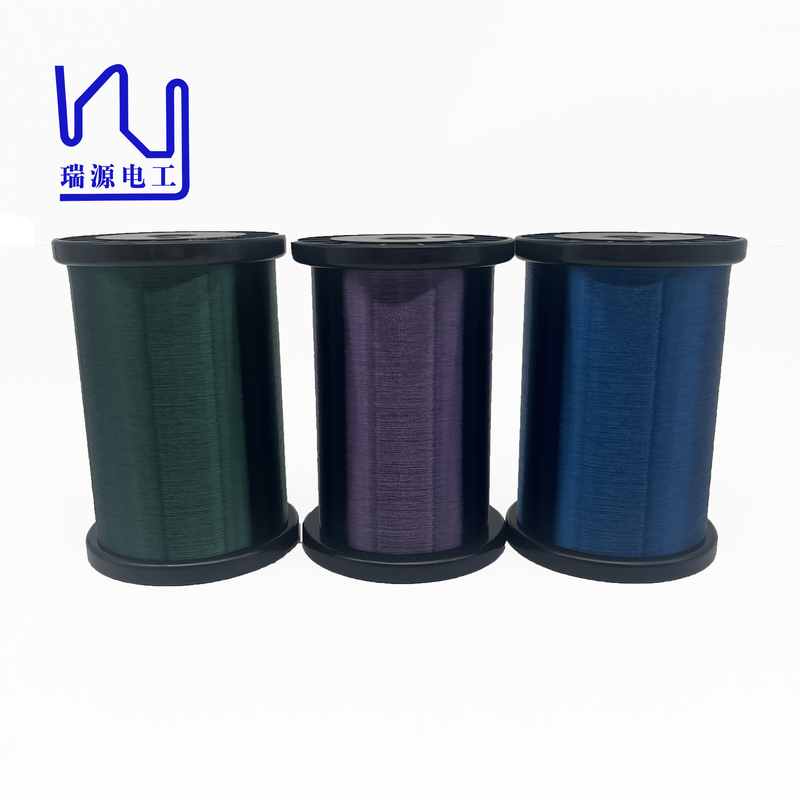

Custom Purple Color Enameled Copper Wire Poly Magnet Wire For Guitar Pickup Windings
Our purple enameled copper wire is just the beginning. We can also create a rainbow of red, blue, green, black, and other colors to suit your wildest guitar customization dreams. We're all about making your guitar stand out from the crowd, and we're not afraid to achieve that with a little color.
|
Characteristics
|
Technical requests
|
Test Results |
|||
|
Sample 1 |
Sample 2 |
Sample 3 |
|||
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
