| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 42 AWG Green Color Poly Coated Enameled Copper Wire Guitar Pickup Winding Wire | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 42 AWG Green Color Poly Coated Enameled Copper Wire Guitar Pickup Winding Wire |
| Highlight: | Green Color enameled copper wire,guitar pickup winding coated copper wire,42 AWG coated copper wire |
||

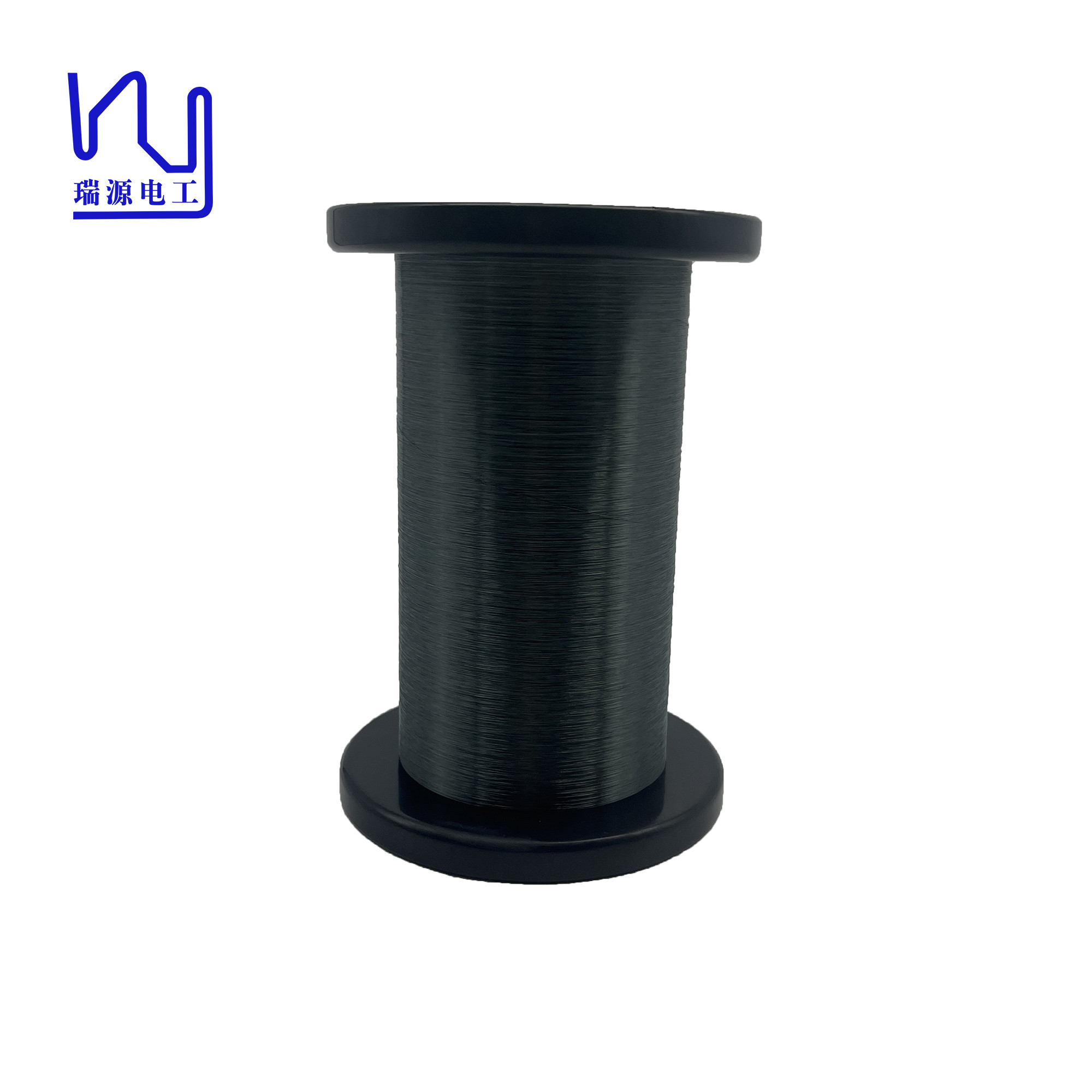

42 AWG Green Color Poly coated enameled copper wire guitar pickup winding wire
Guitar pickup cables play a vital role in producing high-quality sound from an electric guitar. It is responsible for capturing the vibrations of the guitar strings and converting them into electrical signals, which are then amplified and projected into music.
There are various types of guitar pickup cables on the market, each with its own unique properties and uses. One type is polyester-coated enamelled copper wire, which is popular for its superior performance in guitar pickups.
|
Characteristics |
Technical requests |
Test Results |
|||
|
|
|
Sample 1 |
Sample 2 |
Sample 3 |
|
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
