| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Custom Guitar Pickup Wire 42 AWG 43 AWG 44 AWG Plain Coating | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.05mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | Custom Guitar Pickup Wire 42 AWG 43 AWG 44 AWG Plain Coating |
| Highlight: | custom bondable magnet wire,44 awg bondable magnet wire,0.05 mm guitar pickup coil wire |
||

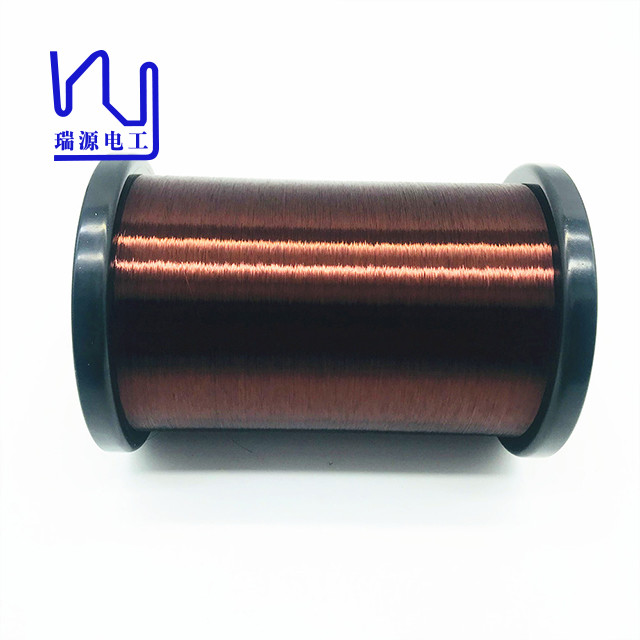

Custom guitar pickup wire 42 AWG 43 AWG 44 AWG Plain coating
Winding methods of Rvyuan Magnet Wire for Pickups
Machine Winding-through the machine, the spinning bobbin moves back and forth at a regular speed so to distribute wires evenly.
Hand Winding-the wire is distributed by workman with hands when the bobbin spins with the help of a machine. Different from machine winding, hand-made pickups is made by craftsmen according to their own understanding of timbre.
Scattered Winding (random wrap)-a machine spins the bobbin, and the pickup wire goes through the hands of an operator who distributes the wire along the bobbin in an intentionally scattered or random pattern. As "scattered winding" is irregular, the pickups produced in this way can form their own characteristics.
| Conductor | Pure copper |
| Size | 44 AWG(American Wire Gauge) 0.05mm |
| Net Weight | 1.5kg or so for 1 spool |
| Length | Approx. 57,200 meters |
| Usage | Single coil or humbuckers |
| MOQ | 1 reel |
| Other enamel options | Plain enamel, Heavy Formvar |
|
Product |
Custom guitar pickup wire 42 AWG 43 AWG 44 AWG Plain coating |
|
Conductor diameter |
0.056mm±0.002 |
|
Key word |
Custom guitar pickup wire 42 AWG 43 AWG 44 AWG Plain coating |
|
Coating |
Heavy formvar |
