| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.065mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 41.5 AWG 0.065mm Plain Guitar Pickup Wire | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.065mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 41.5 AWG 0.065mm Plain Guitar Pickup Wire |
| Highlight: | 41.5 awg guitar pickup wire,0.065mm guitar pickup wire,bondable guitar pickup coil wire |
||

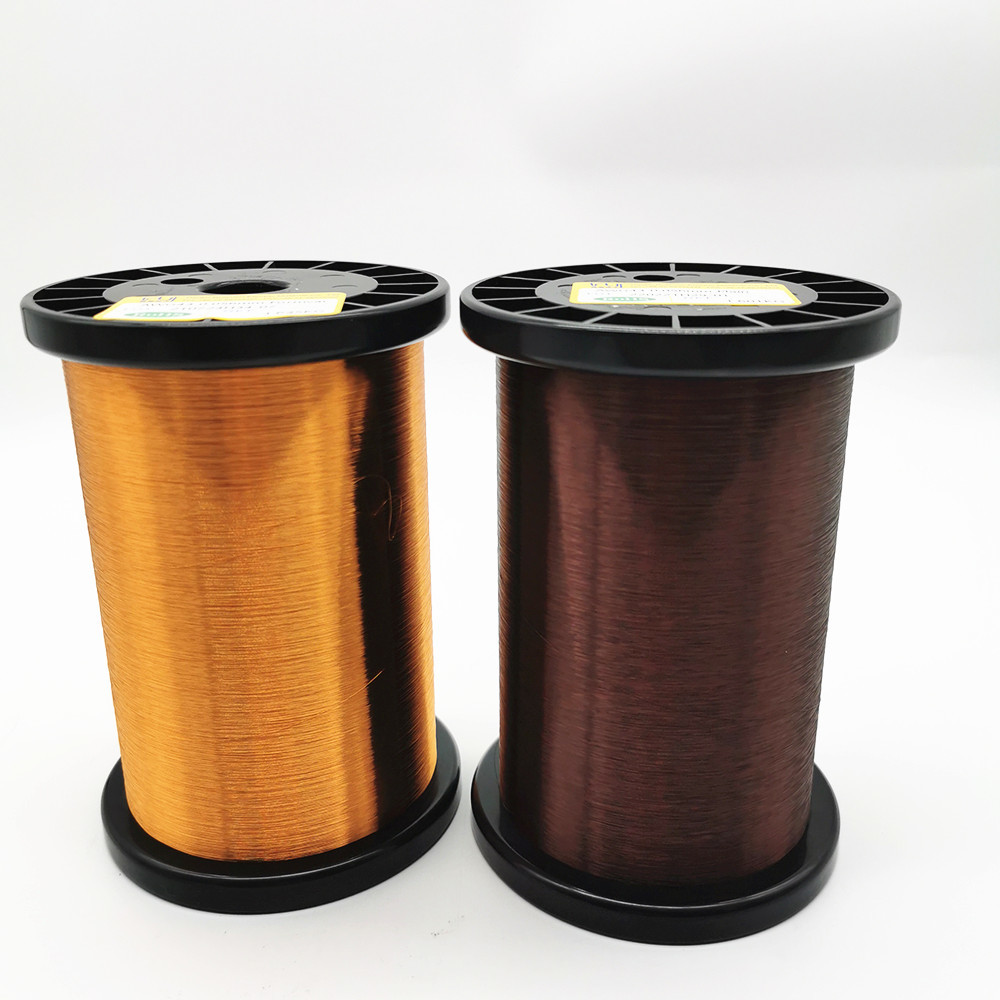

41.5 AWG 0.065mm Plain guitar pickup wire
It’ s know to all music fans that the type of insulation of magnet wire is vital to pickups. The most commonly used insulation are heavy formvar and PE(plain enamel). Different insulation exerts influences on overall inductance and capacitance of pickups due to their chemical composition varies. So tones of electric guitar differ.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.065±0.001mm | 0.065mm |
| Thickness of insulation | Min. 0.008 | 0.0093mm |
| Overall diameter | Max. 0.075mm | 0.0743mm |
|
Continuity of covering (50V/30m) |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 1,000V | Min. 1,685V |
| Resistance to softening | Continue 3 times pass | 230℃/Good |
| Solder test(390℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | 5.10-5.30 Ω/m | 5.16 Ω/m |
| Elongation | Min. 15% | 24% |
|
Product |
41.5 AWG 0.065mm Plain guitar pickup wire |
|
Conductor diameter |
0.056mm±0.002 |
|
Key word |
41.5 AWG 0.065mm Plain guitar pickup wire |
|
Coating |
Heavy formvar |
