| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Custom Wire Green Color 44 AWG 43 AWG 42 AWG Guitar Pickup Wire | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.05mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | Custom Wire Green Color 44 AWG 43 AWG 42 AWG Guitar Pickup Wire |
| Highlight: | green enamel coated magnet wire,enamel coated magnet wire 44 awg,guitar pickup coil wire 43 awg |
||

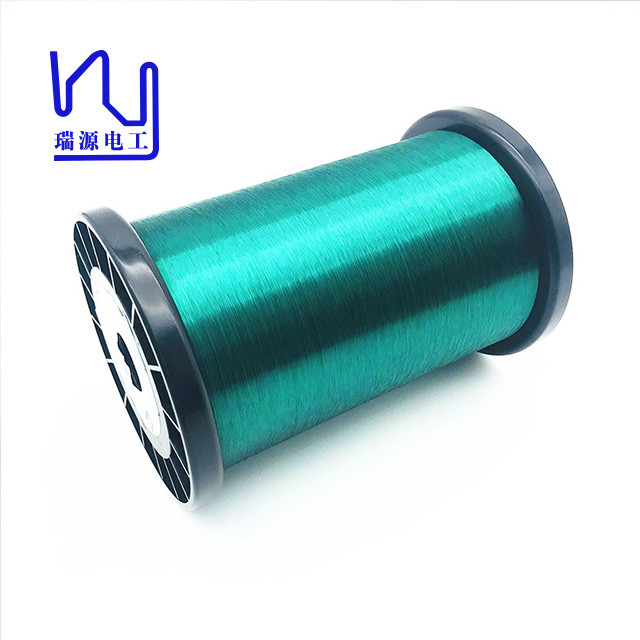

Custom wire green color 44 AWG 43 AWG 42 AWG guitar pickup wire
Polyurthane coating, master’ s Choice
Polyurthane enamel, widely used for pickup wire enamel, can be soldered. Normally it’ s transparent. But it could be brown-violet if a "vintage" vibe is required. Numerous colors are available for customization, blue, pink, red, you name it.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.050±0.002mm | 0.050mm |
| Thickness of insulation | Min. 0.007 | 0.0094mm |
| Overall diameter | Max. 0.060mm | 0.0594mm |
|
Continuity of covering (50V/30m) |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 400V | Min. 1,628V |
| Resistance to softening | Continue 2 times pass | 230℃/Good |
| Solder test(390℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | 8.6-9.0 Ω/m | 8.80 Ω/m |
| Elongation | Min. 12% | 23% |
|
Product |
Custom Green Color Enamel Coated Magnet Wire 44 Awg 43 Awg 42 Awg |
|
Conductor diameter |
0.05mm |
|
Key word |
Custom Green Color Enamel Coated Magnet Wire 44 Awg 43 Awg 42 Awg |
|
Coating |
Polyurethane |
