| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Green Color Guitar Pickup Wire 0.05mm Magnet Wire For Modern Style Guitar | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.05mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | Green Color Guitar Pickup Wire 0.05mm Magnet Wire For Modern Style Guitar |
| Highlight: | guitar pickup wire 0.05 mm,modern guitar pickup wire,guitar pickup coil wire 0.05 mm |
||

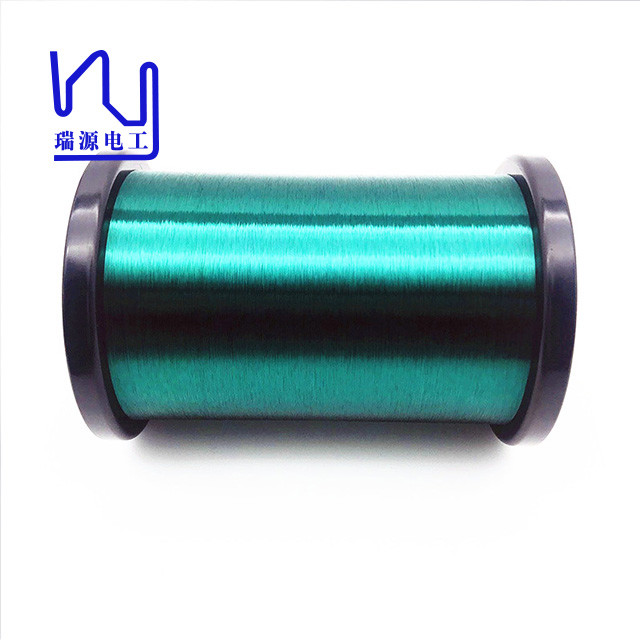

Green color guitar pickup wire 0.05mm magnet wire for modern style guitar
About Winding
The enameled wire needs to be wound several times to complete a pickup winding. There are requirements for the soldering pen. The power should not be too large, otherwise the enameled wire will be damaged.
Warranty
We’ ve got your back! Most suppliers in the industry don’ t have any warranty of wire. Here at Rvyuan, we promise to give full refund to customers if any issues regarding to quality happen.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.050±0.002mm | 0.050mm |
| Thickness of insulation | Min. 0.007 | 0.0094mm |
| Overall diameter | Max. 0.060mm | 0.0594mm |
|
Continuity of covering |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 400V | Min. 1,628V |
| Resistance to softening | Continue 2 times pass | 230℃/Good |
| Solder test(390℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | 8.6-9.0 Ω/m | 8.80 Ω/m |
| Elongation | Min. 12% | 23% |
|
Product |
Green color guitar pickup wire 0.05mm magnet wire for modern style guitar |
|
Conductor diameter |
0.05mm |
|
Key word |
Green color guitar pickup wire 0.05mm magnet wire for modern style guitar |
