| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001 /UL/SGS |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | 0.05mm CCA For Voice Coil | Conductor Thickness: | 0.05mm |
|---|---|---|---|
| Standard: | IEC/JIC/NEMA | Material: | Copper |
| Conductor: | Aluminum And Copper | Thermal Class: | 155 |
| Min Bonding Strength: | 2g | Insulation: | UEW/polyurethane |
| Highlight: | self solderable copper wire,flat copper wire |
||

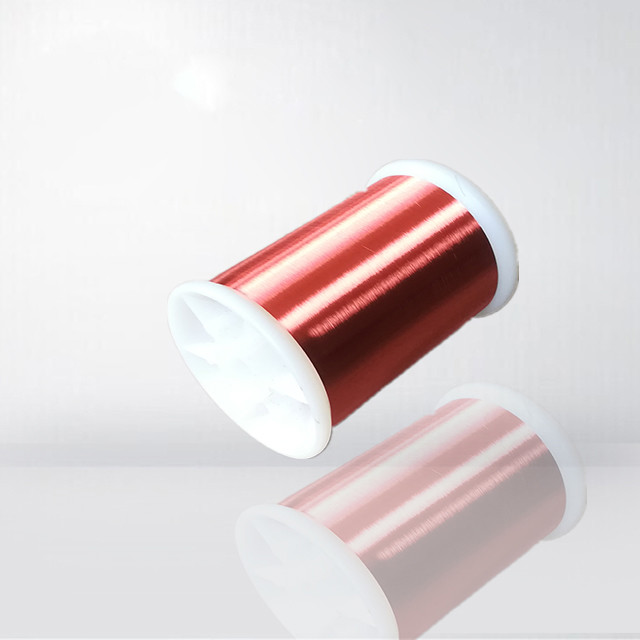

AWG 44 0.05mm self bonding CCA wire for voice coilAWG 44 0.5MM
CCA is an electrical conductor composed of an inner aluminium core and outer copper cladding,The primary applications of this conductor revolve around weight reduction requirements. These applications include high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables.
Features:
Application:
| Copper Clad aluminum wire (CCA) | |||||||||||||
| Dia (mm) |
Tolerance (mm) | Resistance/Ω/m20℃ | Elongation% | G2 Max OD (mm) |
Min.Insulation(mm) | Min Adhesive (g) | G2 Max OD (mm) |
Min.Insulation(mm) | Min Adhesive (g) | ||||
| SKHT | KHT | SKHT | KHT | Insulation | Bonding layer | Insulation | Bonding layer | ||||||
| 0.025 | 0.025±0.001 | 52.42±5% | 56.18±5% | 3 | 3 | 0.037 | 0.002 | 0.002 | 5 | 0.032 | 0.002 | 0.001 | 2 |
| 0.030 | 0.030±0.001 | 36.40±7% | 39.03±7% | 4 | 4 | 0.043 | 0.002 | 0.002 | 5 | 0.040 | 0.002 | 0.001 | 2 |
| 0.035 | 0.035±0.001 | 26.75±7% | 28.67±7% | 5 | 5 | 0.048 | 0.002 | 0.002 | 5 | 0.045 | 0.002 | 0.001 | 3 |
| 0.040 | 0.040±0.001 | 20.48±7% | 21.95±7% | 6 | 6 | 0.055 | 0.002 | 0.002 | 5 | 0.052 | 0.002 | 0.001 | 3 |
| 0.045 | 0.045±0.001 | 16.18±7% | 17.34±7% | 7 | 7 | 0.060 | 0.002 | 0.002 | 8 | 0.057 | 0.002 | 0.001 | 3 |
| 0.050 | 0.050±0.002 | 13.11±7% | 14.05±7% | 5 | 8 | 0.067 | 0.003 | 0.003 | 8 | 0.064 | 0.003 | 0.0015 | 5 |
| 0.055 | 0.055±0.002 | 10.83±7% | 11.61±7% | 8 | 8 | 0.073 | 0.003 | 0.003 | 8 | 0.069 | 0.003 | 0.0015 | 5 |
| 0.060 | 0.060±0.002 | 9.10±7% | 9.76±7% | 9 | 9 | 0.078 | 0.003 | 0.003 | 8 | 0.075 | 0.003 | 0.0015 | 5 |
| 0.065 | 0.065±0.002 | 7.75±7% | 8.25±7% | 11 | 11 | 0.084 | 0.003 | 0.003 | 8 | 0.080 | 0.003 | 0.0015 | 5 |
| 0.070 | 0.070±0.002 | 6.69±7% | 7.11±7% | 12 | 12 | 0.090 | 0.003 | 0.003 | 8 | 0.085 | 0.003 | 0.0015 | 5 |
| 0.075 | 0.075±0.002 | 5.82±7% | 6.19±7% | 12 | 12 | 0.096 | 0.003 | 0.003 | 10 | 0.090 | 0.003 | 0.0015 | 8 |
| 0.080 | 0.080±0.002 | 5.12±7% | 5.36±7% | 14 | 14 | 0.101 | 0.003 | 0.003 | 10 | 0.097 | 0.003 | 0.002 | 8 |
