| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.012- 1.6mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Thermal Class: | 155-220℃ | Colro: | Red/Blue/Green |
|---|---|---|---|
| Deliver Time: | 2-15days | Size Range: | 0.012-1.6mm |
| Highlight: | thin coated copper wire,soldering copper wire |
||

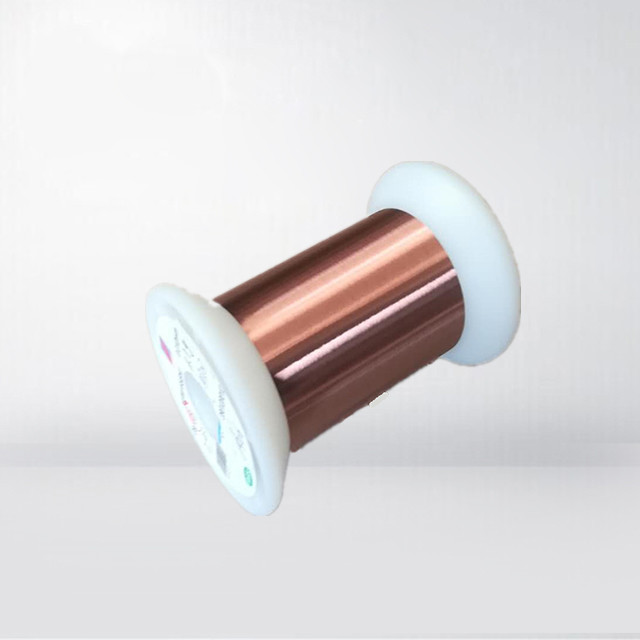

0.012- 1.6MM EXTREME FINE ENAMELED COPPER WIRE COPPER MAGNET WIRE FOR TRANSFORMER
The enamelled copper wire type is a winding wire with a round copper conductor according to EN13601 Cu-ETP with a polyurethane coating with thermal class 155-220℃ enamelled copper wire which can be directly soldered. A special feature of this wire is the efficient and safe bonding via quick solderability at solder bath temperatures of 390 °C and higher without previous mechanical dissolving of the coating. It is also suitable for bonding techniques, such as welding, connecting, and crimping, and fulfils the requirements of modern winding technology
FEATURES
1) With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
2) Superior ''Q'' characteristic at high frequencies.
3) Excellent film adhension and flexibility.
4) Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
APPLICATION
Switching transformers, information & telecommunications equipment, game machines, consumer goods, inverters and other similar devices.
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | Elongation | Pin Hole | Electrical Resistance | ||
| mm | ≥ V | ≥% | ≤Default/5m | Ω/km (20℃) | |||||
| Mandrel Method | Twisted Method | Min. | Max. | ||||||
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
