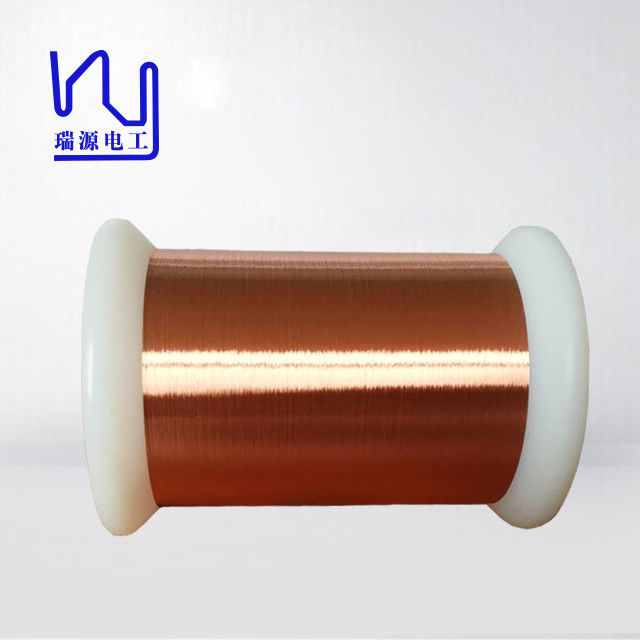

Solderable super Thin 0.032mm Enameled Copper Winding Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.032mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Solderable Super Thin 0.032mm Enameled Copper Winding Wire Diameter: 0.032mm
Insulation: UEW Thermal Class: 155/180
Type: Solid Key Word: Solderable Super Thin 0.032mm Enameled Copper Winding Wire
Highlight:

Super Thin Enameled Copper Winding Wire

,

Solderable Enameled Copper Winding Wire

,

0.032mm Enameled Copper Winding Wire


Product Description

Solderable super Thin 0.032mm Enameled Copper Winding Wire



Transformers are essential components in electrical systems and also rely on our high-quality enameled copper wire. The efficiency of a transformer depends largely on the quality of the winding wire used in its construction. Ruiyuan's ultra-fine enameled wire has excellent electrical properties, ensuring that energy losses are minimized during operation. Using our wire, manufacturers can produce transformers that are not only efficient but also compact to meet the growing demand for space-saving solutions in electrical engineering.



Characteristics

Technical requests

Test Results

Conclusion

Sample 1

Sample 2

Surface

Good



OK

OK

OK

Bare Wire Diameter

0.032±

0.001

0.032

0.032

OK

0.001

Coating Thickness

≥ 0.005 mm

0.009

0.008

OK

Overall Diameter

≤ 0.042 mm

0.041

0.04

OK

Conductor Resistance

≤ 22.843 Ω/m

22.032

22.076

OK

Elongation

≥ 10 %

14

15

OK

Breakdown Voltage

≥ 275 V

1456

1312

OK

Pinhole Test

≤ 5 faults/5m

0

0

OK

Continuity

----

----

----

----

Test Items

Technical Requests

Resulat





Adhesive

Coating layer is good

OK





Cut-through

230℃ 2min no breakdown

OK





Heat Shock

200± 5℃/30min no crack

OK





Solder Ability

390± 5℃ 2Sec Smooth

OK





Solvent Resistance

No blister, no expansion, no shed

OK
