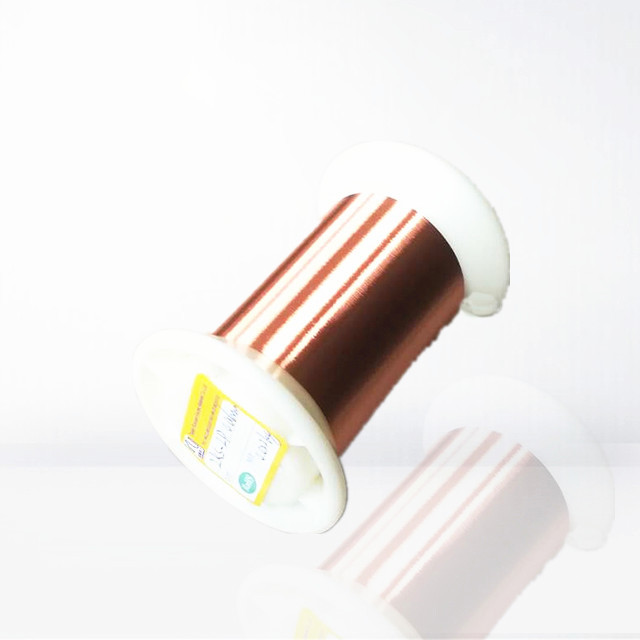

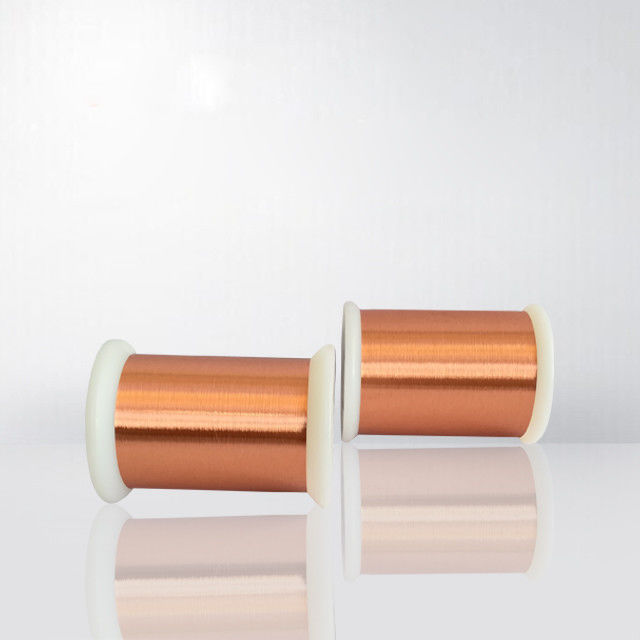

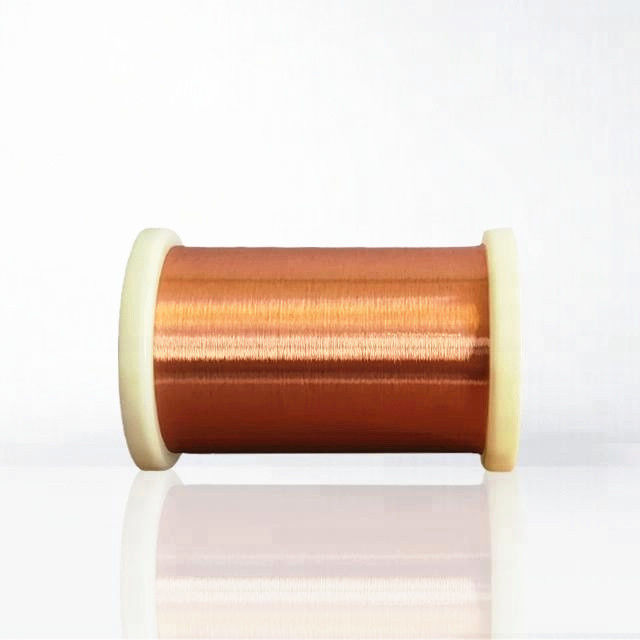

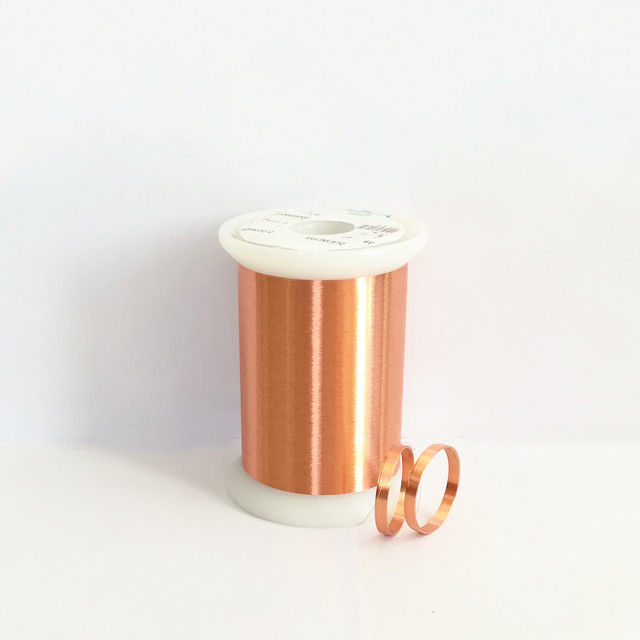

Name: Ultra Fine 0.012mm Enameled Copper Wire 0.012 - 0.4mm UEW Magnet Copper Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.012mm
Price: Negotiable USD
Availability: InStock

Detail Information

Thermal Class:

155/180

Insulation:

UEW

Color:

Red/Green/Blue

Size Range:

0.012-0.4mm

Highlight:

round copper wire

thin coated copper wire

Product Description

ULTRA FINE 0.012MM ENAMELED COPPER WIRE 0.012-0.4MM UEW MAGNET COPPER WIRE

UEW is a film insulation compcsed of Polyisocy-anate & Polyol. It's widely used in coils and motor windings.Enamelled resistance wires have found increasing use in Electrofusion fittings. The heating wires can move as the polymer in the fitting melts at the fusion points when they are energised, causing the heating effect to be distorted. This can cause the fitting to 'fail' it's fusion cycle which is monitored by the controller/power source. Some designs also require the wire to cross over a flat coil, greatly increasing the chances of shorting. Class 200 enamel provides just enough insulation for the electrofusion process without significantly affecting the heat transfer characteristics of the system.

FETURES

With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
Superior ''Q'' characteristic at high frequencies.
Excellent film adhension and flexibility.
Extremely resistant to a variety of solvents including most varnishes and hardener catalysts

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION

Transformer
Touch screen
Sensor
Relay
household appliances

Ultra Fine 0.012mm Enameled Copper Wire 0.012 - 0.4mm UEW Magnet Copper Wire 0

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50	----	5	10	142.64	157.65
0.013	----	0.015	0.017	70	----	5	10	118.41	133.98
0.014	----	0.016	0.018	70	----	5	10	102.64	120.45
0.015	----	0.017	0.02	80	----	5	10	89.83	104.41
0.016	----	0.018	0.021	90	----	5	8	74.67	97.56
0.017	----	0.019	0.022	90	----	5	8	66.6	85.75
0.018	----	0.02	0.023	100	----	5	8	59.77	75.95
0.019	----	0.021	0.024	100	----	5	8	53.95	67.75
0.02	0.001	0.022	0.024	100	----	8	8	51.83	60.81
0.05	±0.002	0.007	0.062	400	1200	12	5	7981	9528
0.055	±0.002	0.007	0.068	400	1200	12	5	6642	7815
0.06	±0.002	0.007	0.073	500	1200	14	5	5614	6526
0.065	±0.002	0.007	0.078	500	1200	14	5	4807	5531
0.07	±0.002	0.007	0.083	500	1200	15	5	4163	4747
0.075	±0.002	0.007	0.088	550	1200	15	5	3640	4119
0.08	±0.002	0.008	0.094	550	1200	16	5	3209	3608
0.085	±0.002	0.008	0.099	550	1200	16	5	2851	3187
0.09	±0.002	0.01	0.106	650	1200	16	5	2550	2835
0.095	±0.002	0.01	0.111	650	1200	17	5	2294	2538
0.1	±0.002	0.011	0.118	650	1200	17	5	2074	2286
0.11	±0.002	0.011	0.129	----	1300	17	5	1720	1882
0.12	±0.002	0.011	0.139	----	1500	17	5	1450	1577
0.13	±0.002	0.011	0.149	----	1500	18	5	1239	1340
0.14	±0.002	0.011	0.159	----	1600	19	5	1070	1153
0.15	±0.002	0.011	0.169	----	1700	20	5	934.1	1002
0.16	±0.002	0.012	0.18	----	1700	21	5	822.3	879.4
0.17	±0.003	0.013	0.192	----	2000	22	5	721.1	787.1
0.18	±0.003	0.014	0.204	----	2000	22	5	644.4	700.7
0.19	±0.003	0.014	0.214	----	2000	23	5	579.4	627.8
0.2	±0.003	0.014	0.224	----	2000	23	5	523.7	565.7
0.21	±0.003	0.014	0.234	----	2000	23	5	475.7	512.3
0.22	±0.003	0.014	0.245	----	2200	23	5	434	466.2
0.23	±0.003	0.016	0.257	----	2200	24	5	397.5	426
0.24	±0.003	0.016	0.267	----	2200	24	5	365.5	390.8
0.25	±0.003	0.016	0.277	----	2300	24	5	337.1	359.8
0.26	±0.004	0.018	0.287	----	2300	25	5	309.6	335
0.27	±0.004	0.018	0.297	----	2300	25	5	287.4	310.3
0.28	±0.004	0.022	0.313	----	2300	25	5	267.6	288.2
0.29	±0.004	0.022	0.323	----	2500	25	5	249.7	268.4
0.3	±0.004	0.022	0.334	----	2500	25	5	233.5	250.6
0.31	±0.004	0.022	0.344	----	2500	25	5	218.9	234.4
0.315	±0.004	0.022	0.349	----	2500	25	5	212.1	227
0.32	±0.004	0.023	0.355	----	2700	25	5	205.6	219.8
0.33	±0.004	0.023	0.365	----	2700	25	5	193.5	206.6
0.35	±0.004	0.023	0.385	----	2700	26	5	172.2	183.4
0.355	±0.004	0.023	0.39	----	2700	26	5	167.4	178.2
0.37	±0.004	0.024	0.406	----	2900	26	5	154.3	163.9
0.38	±0.004	0.024	0.416	----	2900	26	5	146.4	155.3
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.012mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
