| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.012 - 0.08mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Ton/Tons per Month |
| Insulation: | SBUEW | Thermal Class: | 155/180 |
|---|---|---|---|
| Color: | Red/Blue/Green | Delviery: | 2-30days |
| Size Range: | 0.012-0.8mm | ||
| Highlight: | round copper wire,soldering copper wire |
||

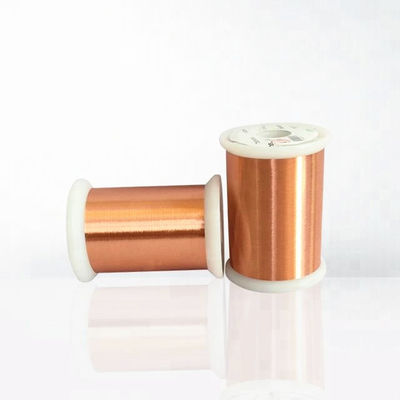

0.012 - 0.08MM ULTRA THIN ENAMELED COPPER WIRE SELF BONDING MAGNET WIRE
Enameled copper wire or magnet wire is a fundamental part of a winding in every electrical machine or apparatus. Compared to fibrous insulations, enamelled copper & aluminium wire offers a favourable space saving factor together with a high level of breakdown voltage. The main application of Enamelled Copper Wire & Enamelled Aluminium wire is in winding of Motor and Transformers.Enamelled Aluminium Wire or Enameled Copper Wire is a wire coated with a thin layer of enamel (varnish) insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil. Aluminum Enameled Wire and Copper Enamelled Winding Wire are used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.
FEATURES AND BENEFITS
Excellent resistance to abrasion and solvent,
Excellent electricity performance
Excellent heat shock, adherence and flexibility
High cut through
APPLICATION
Dry type transformers ( For power distribution, Vehicles & etc. )
Transformer for measuring instrument
For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
Coil-motor ( Class H )
SPECIFICATIONS
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | Elongation | Pin Hole | Electrical Resistance | ||
| mm | ≥ V | ≥% | ≤Default/5m | Ω/km (20℃) | |||||
| Mandrel Method | Twisted Method | Min. | Max. | ||||||
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
