Detail Information

Product Name:	0.017mm Super Fine Copper Wire	Tolerance:	0.001
Thermal Rating:	155/180	Insulation Layer:	Polyurethane
AWG Size:	53	Size Range:	0.012mm-0.017mm, 0.017-0.8mm
Size:	0.017mm
Highlight:	enamelled winding wire , enameled magnet wire

Product Description

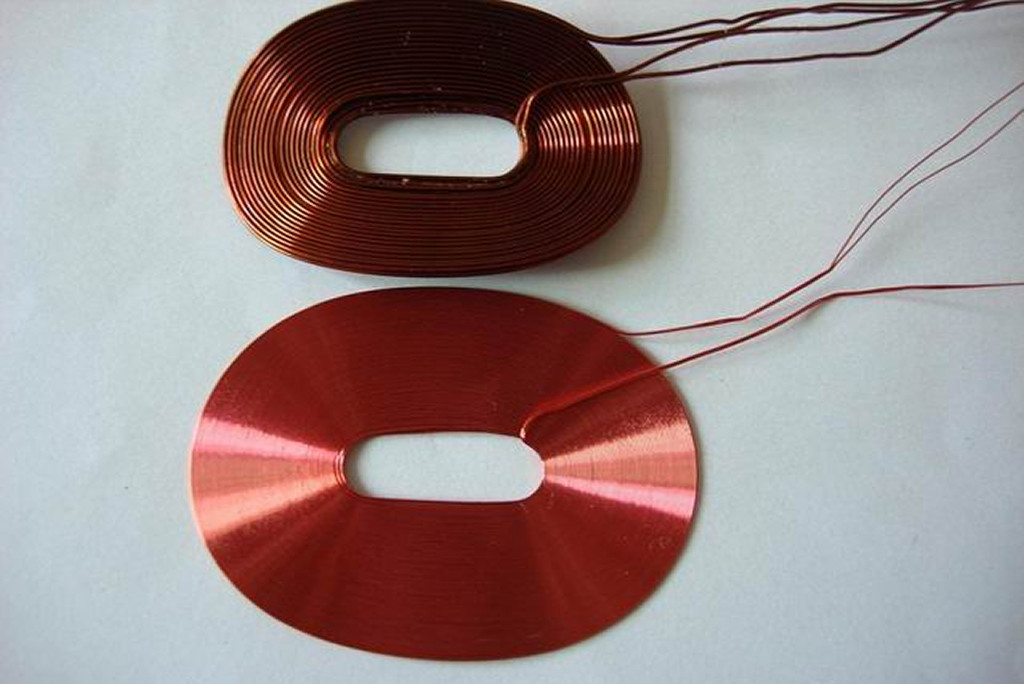

0.012- 0.8MM GOOD SOLDERABILITY ULTRA FINE ENAMELED COPPER WIRE MAGNET WIRE FOR IGNITION COILS

INSULATION DESCRIPTION

UEW is a film insulation composed of Polyisocyanate & Polyol. It's widely used in coils and motor windings.

FEATURES AND BENEFITS

(a) With good solderability, reduces coil production costs due to elimination of mechanical or chemical

stripping.

(b) Superior "Q" characteristics at high frequencies.

(d) Extremely resistant to a variety of solvents ncluding most varnishes and hardener catalysts

(f) And superfine size wire provides important benefits for design engineers, and improve signal intensity for

optimal sensing performance and reduce costs.

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

Executive standards: IEC, JIS and NEMA.

0.012mm - 0.8mm Good Solderability Ultra Fine Enameled Copper Wire Magnet Wire For Ignition Coils 0

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50.000	----	5.00	10.00	142.64	157.65
0.013	----	0.015	0.017	70.000	----	5.00	10.00	118.41	133.98
0.014	----	0.016	0.018	70.000	----	5.00	10.00	102.64	120.45
0.015	----	0.017	0.020	80.000	----	5.00	10.00	89.83	104.41
0.016	----	0.018	0.021	90.000	----	5.00	8.00	74.67	97.56
0.017	----	0.019	0.022	90.000	----	5.00	8.00	66.60	85.75
0.018	----	0.020	0.023	100.000	----	5.00	8.00	59.77	75.95
0.019	----	0.021	0.024	100.000	----	5.00	8.00	53.95	67.75
0.020	0.001	0.022	0.024	100.000	----	8.00	8.00	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	1200.00	12.00	5.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	1200.00	12.00	5.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	1200.00	14.00	5.00	5614.00	6526.00
0.065	±0.002	0.007	0.078	500.000	1200.00	14.00	5.00	4807.00	5531.00
0.070	±0.002	0.007	0.083	500.000	1200.00	15.00	5.00	4163.00	4747.00
0.075	±0.002	0.007	0.088	550.000	1200.00	15.00	5.00	3640.00	4119.00
0.080	±0.002	0.008	0.094	550.000	1200.00	16.00	5.00	3209.00	3608.00
0.085	±0.002	0.008	0.099	550.000	1200.00	16.00	5.00	2851.00	3187.00
0.090	±0.002	0.010	0.106	650.000	1200.00	16.00	5.00	2550.00	2835.00
0.095	±0.002	0.010	0.111	650.000	1200.00	17.00	5.00	2294.00	2538.00
0.100	±0.002	0.011	0.118	650.000	1200.00	17.00	5.00	2074.00	2286.00
0.110	±0.002	0.011	0.129	----	1300.00	17.00	5.00	1720.00	1882.00
0.120	±0.002	0.011	0.139	----	1500.00	17.00	5.00	1450.00	1577.00
0.130	±0.002	0.011	0.149	----	1500.00	18.00	5.00	1239.00	1340.00
0.140	±0.002	0.011	0.159	----	1600.00	19.00	5.00	1070.00	1153.00
0.150	±0.002	0.011	0.169	----	1700.00	20.00	5.00	934.10	1002.00
0.160	±0.002	0.012	0.180	----	1700.00	21.00	5.00	822.30	879.40
0.170	±0.003	0.013	0.192	----	2000.00	22.00	5.00	721.10	787.10
0.180	±0.003	0.014	0.204	----	2000.00	22.00	5.00	644.40	700.70
0.190	±0.003	0.014	0.214	----	2000.00	23.00	5.00	579.40	627.80
0.200	±0.003	0.014	0.224	----	2000.00	23.00	5.00	523.70	565.70
0.210	±0.003	0.014	0.234	----	2000.00	23.00	5.00	475.70	512.30
0.220	±0.003	0.014	0.245	----	2200.00	23.00	5.00	434.00	466.20
0.230	±0.003	0.016	0.257	----	2200.00	24.00	5.00	397.50	426.00
0.240	±0.003	0.016	0.267	----	2200.00	24.00	5.00	365.50	390.80
0.250	±0.003	0.016	0.277	----	2300.00	24.00	5.00	337.10	359.80
0.260	±0.004	0.018	0.287	----	2300.00	25.00	5.00	309.60	335.00
0.270	±0.004	0.018	0.297	----	2300.00	25.00	5.00	287.40	310.30
0.280	±0.004	0.022	0.313	----	2300.00	25.00	5.00	267.60	288.20
0.290	±0.004	0.022	0.323	----	2500.00	25.00	5.00	249.70	268.40
0.300	±0.004	0.022	0.334	----	2500.00	25.00	5.00	233.50	250.60
0.310	±0.004	0.022	0.344	----	2500.00	25.00	5.00	218.90	234.40
0.315	±0.004	0.022	0.349	----	2500.00	25.00	5.00	212.10	227.00
0.320	±0.004	0.023	0.355	----	2700.00	25.00	5.00	205.60	219.80
0.330	±0.004	0.023	0.365	----	2700.00	25.00	5.00	193.50	206.60
0.350	±0.004	0.023	0.385	----	2700.00	26.00	5.00	172.20	183.40
0.355	±0.004	0.023	0.390	----	2700.00	26.00	5.00	167.40	178.20
0.370	±0.004	0.024	0.406	----	2900.00	26.00	5.00	154.30	163.90
0.380	±0.004	0.024	0.416	----	2900.00	26.00	5.00	146.40	155.30
0.400	±0.004	0.025	0.437	----	2900.00	27.00	5.00	132.20	140.00
0.410	±0.004	0.025	0.447	----	2900.00	27.00	5.00	125.90	133.20
0.440	±0.004	0.025	0.477	----	2900.00	27.00	5.00	109.50	115.50
0.450	±0.004	0.025	0.487	----	2900.00	27.00	5.00	104.70	110.40
0.470	±0.004	0.026	0.508	----	3100.00	27.00	5.00	96.05	101.10
0.500	±0.004	0.026	0.539	----	3100.00	27.00	5.00	84.96	89.23
0.550	±0.004	0.027	0.590	----	3300.00	28.00	5.00	70.31	73.64
0.600	±0.005	0.027	0.640	----	3500.00	28.00	5.00	58.96	62.01
0.650	±0.005	0.027	0.690	----	3500.00	28.00	5.00	50.30	52.77
0.700	±0.005	0.029	0.742	----	3500.00	28.00	5.00	43.42	45.45
0.750	±0.005	0.030	0.794	----	3800.00	28.00	5.00	37.86	39.55
0.800	±0.005	0.032	0.846	----	3800.00	28.00	5.00	33.30	34.73

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.017MM

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T, L/C
Supply Ability:	Satisfy your demand
