| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | OCC |
| Minimum Order Quantity: | 2 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10/week |
| Product Name: | 0.254mm ETFE Insulated Silver Conductor OCC Silver Wire For Audio | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW Enamel | Diameter: | 0.254mm |
| Conductor Material: | Silver | Key Word: | 0.254mm ETFE Insulated Silver Conductor OCC Silver Wire For Audio |
| Jacket: | ETFE |

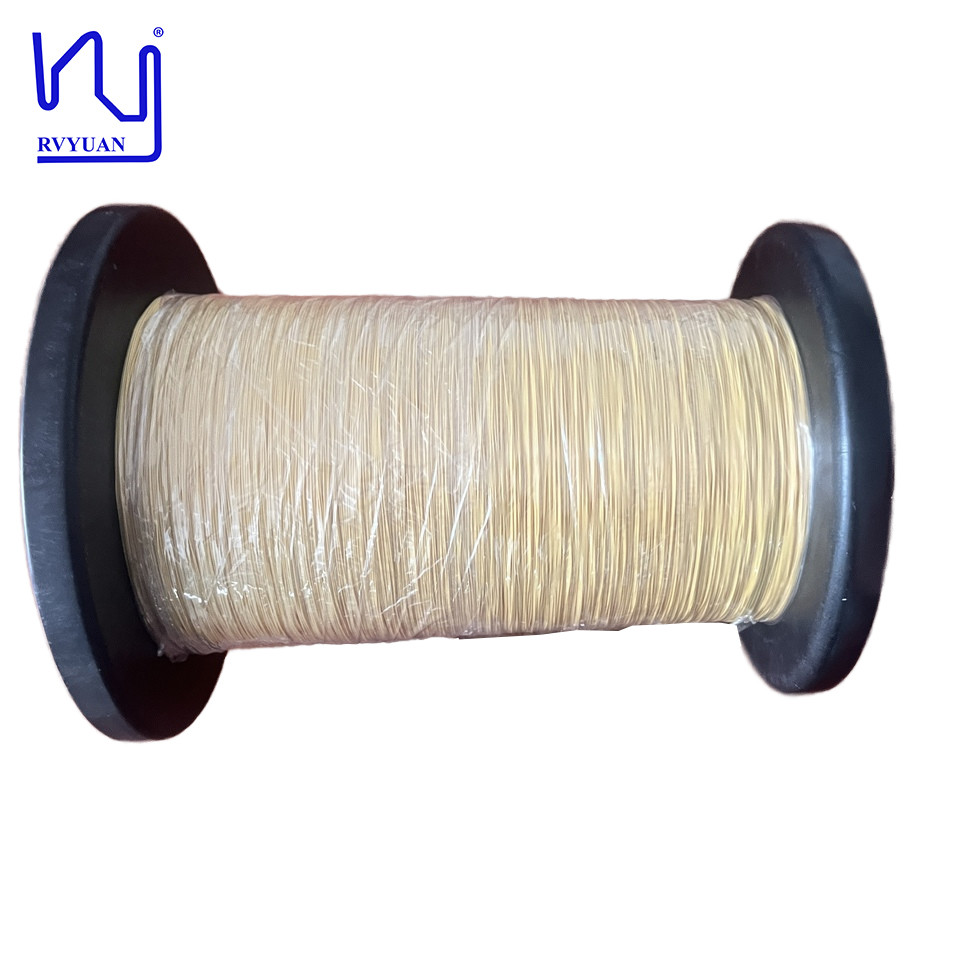

0.254mm ETFE Insulated Silver Conductor OCC Silver Wire For Audio
To protect this highly efficient conductor, the outer layer of the wire is wrapped in robust ETFE (Ethylene Tetrafluoroethylene). This advanced insulation provides excellent environmental protection, ensuring that the wire is protected from moisture, chemicals and physical abrasion. the ETFE coating also helps to increase the wire's resistance to stress, making it suitable for a wide range of applications, from home audio setups to professional installations.
|
Standard specifications for monocrystalline silver |
|||||||
|
Diameter(mm) |
Tensile strength(Mpa) |
Elongation(%) |
conductivity(IACS%) |
Purity(%) |
|||
|
Hard state |
Soft state |
Hard state |
Soft state |
Hard state |
Soft state |
||
|
3.0 |
≥320 |
≥180 |
≥0.5 |
≥25 |
≥104 |
≥105 |
≥99.995 |
|
2.05 |
≥330 |
≥200 |
≥0.5 |
≥20 |
≥103.5 |
≥104 |
≥99.995 |
|
1.29 |
≥350 |
≥200 |
≥0.5 |
≥20 |
≥103.5 |
≥104 |
≥99.995 |
|
0.102 |
≥360 |
≥200 |
≥0.5 |
≥20 |
≥103.5 |
≥104 |
≥99.995 |
Multi-scenario application
High-end home theater, high-end hifi system, KTV wiring, car audio system, multimedia audio-visual room, cinema, banquet hall, lecture hall, multimedia classroom, gym hotel restaurant audio system, office meeting room, concert and other multi-channel use.
