| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | OCC |
| Minimum Order Quantity: | 1 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10/week |
| Product Name: | Class 155 6N 99.9999% OCC High Purity Enameled Copper Wire Hot Wind Self-adhesive | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.025mm |
| Conductor Material: | Copper | Key Word: | Class 155 6N 99.9999% OCC High Purity Enameled Copper Wire Hot Wind Self-adhesive |
| Highlight: | Self-adhesive enameled copper wire,High purity enameled copper wire,99.9999% OCC enameled copper wire |
||

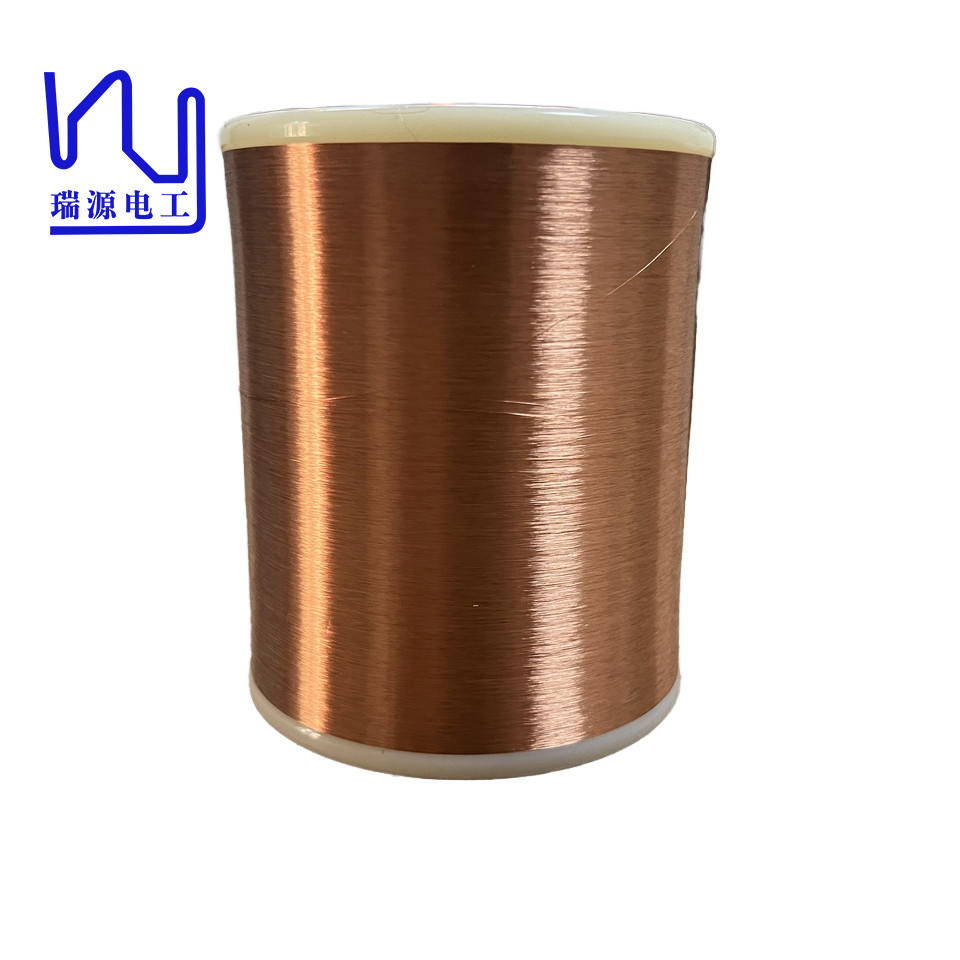

Class 155 6N 99.9999% OCC High purity enameled copper wire hot wind self-adhesive
In the world of high-end audio, the quality of the components used is crucial to achieving the ultimate sound experience. At the forefront of this pursuit is our custom-made 6N high-purity enameled copper wire, designed for audiophiles and professionals seeking the best.
With a wire diameter of just 0.025mm, this ultra-fine enameled copper wire is designed to deliver unparalleled performance, ensuring every note and nuance of your favorite music is transmitted with pristine clarity.
|
Name |
Class 155 6N 99.9999% OCC High purity enameled copper wire hot wind self-adhesive |
|
Key word |
Class 155 6N 99.9999% OCC High purity enameled copper wire hot wind self-adhesive |
|
Thermal rating |
155 |
| Item | Tech requirement | Test value | ||
| Overall dimention mm | Max.0.035 | 0.035 | 0.034 | 0.0345 |
| Conductor Diameter mm |
0.025±0.002 |
0.025 |
0.025 |
0.025 |
|
Conductor resistance Ω/m
|
Tested value |
35.1 |
35.1 |
35.1 |
| Pinhole (5m) pcs |
Max 5 |
0 |
0 |
0 |
| Elongation % |
Min 10 |
16.8 |
15.2 |
16 |
| Solderability |
Max 2 |
OK |
||
