| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Conductor Dimension (Width): | 2mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.35mm | Applications: | AIW 220 0.35mmx2.0mm Polyamideimide Enameled Flat Copper Wire For Transformers |
| Thermal Grade: | 220 | Key Word: | AIW 220 0.35mmx2.0mm Polyamideimide Enameled Flat Copper Wire For Transformers |

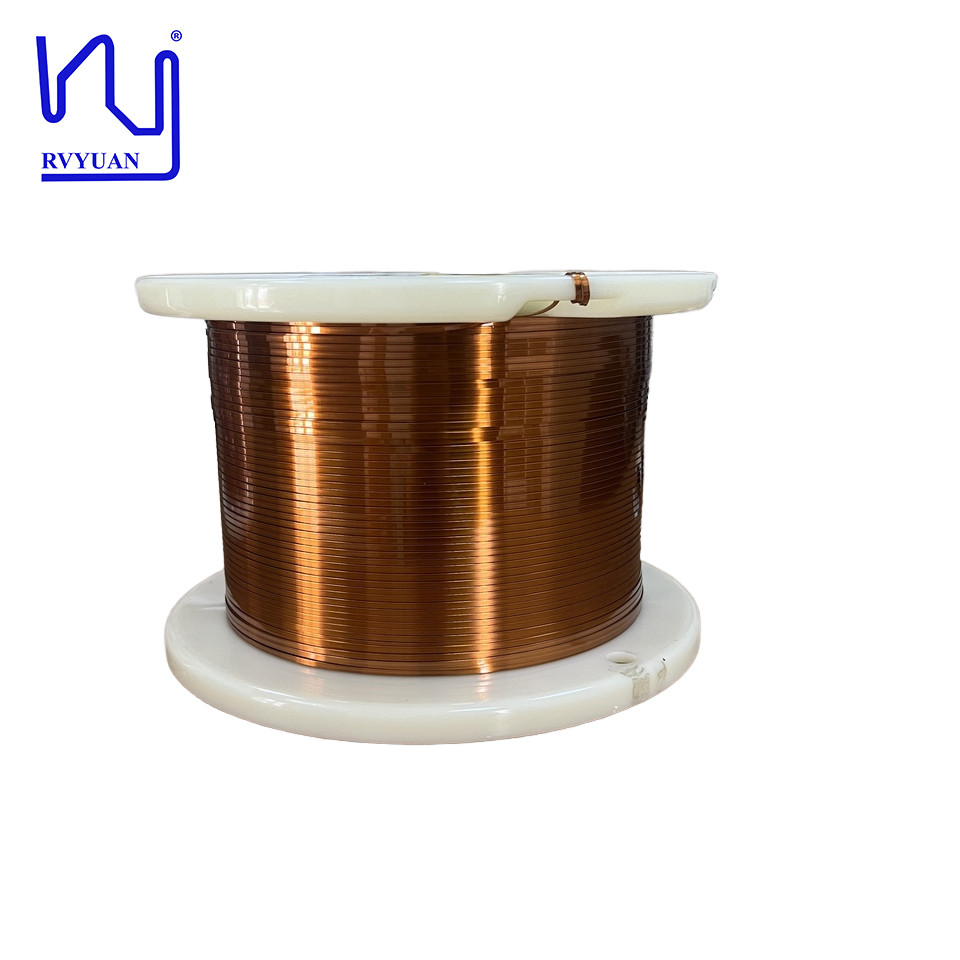

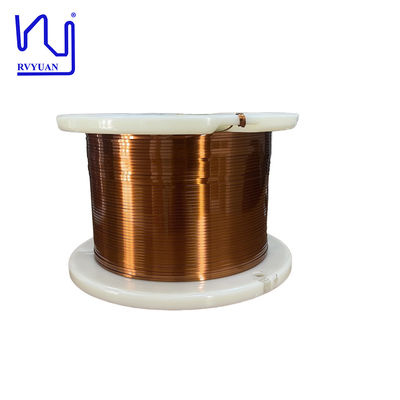

AIW 220 0.35mmx2.0mm Polyamideimide Enameled Flat Copper Wire for Transformers
Enameled flat copper wire is distinguished by its unique structure, which combines the excellent conductivity of copper with a strong enamel coating. This coating not only enhances the electrical insulation properties of the wire, but also provides a protective barrier against environmental factors such as moisture and corrosion. The wire's flat design allows for efficient use of space, making it ideal for applications where traditional round wires are less efficient. High temperature resistance of 220 degrees Celsius ensures the wire can operate in harsh environments without affecting its integrity or performance.
|
TEST REPORT |
||||||||
|
Model |
SFT-AIW |
Date |
||||||
|
Size(mm): |
0.35 × 2.000 |
Lot |
||||||
|
Item |
Conductor dimension |
Unilaterali nsulationlayer thickness |
Overall dimension |
Breakdown |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
voltage |
||
|
Unit |
|
mm |
mm |
mm |
mm |
mm |
mm |
kv |
|
SPEC |
Ave |
0.350 |
2.000 |
0.025 |
0.025 |
|
|
|
|
Max |
0.359 |
2.060 |
0.040 |
0.040 |
0.400 |
2.100 |
|
|
|
Min |
0.341 |
1.940 |
0.010 |
0.010 |
|
|
0.7 |
|
|
No. 1 |
|
0.350 |
1.999 |
0.019 |
0.019 |
0.385 |
2.037 |
1.650 |
|
No. 2 |
|
|
|
|
|
|
1.870 |
|
|
No. 3 |
|
|
|
|
|
|
2.140 |
|
|
No. 4 |
|
|
|
|
|
|
2.680 |
|
|
No. 5 |
|
|
|
|
|
|
2.280 |
|
|
Avg |
0.350 |
1.999 |
0.018 |
0.019 |
0.385 |
2.037 |
2.124 |
|
|
Number of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
|
|
Min. reading |
0.350 |
1.999 |
0.018 |
0.019 |
0.385 |
2.037 |
1.650 |
|
|
Max. reading |
0.350 |
1.999 |
0.018 |
0.019 |
0.385 |
2.037 |
2.680 |
|
|
Range |
0 |
0 |
0 |
0 |
0 |
0 |
1.030 |
|
