| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Conductor Dimension (Width): | 2mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Overall Dimension (Thickness): | 0.1mm |
| Applications: | High-end Electronic Transformers, High-power Inductors, Micro Motors, Drive Motors, Mobile Phones, New Energy Vehicles, And Other Industries | Test Report Number Of Readings: | 5 |
| Thermal Grade: | 220 | Key Word: | 2mm X 0.1mm Enameled Flat Copper Wire For Energy Vehicles |
| Highlight: | 2mm Enameled Flat Copper Wire,0.1mm Enameled Flat Copper Wire |
||

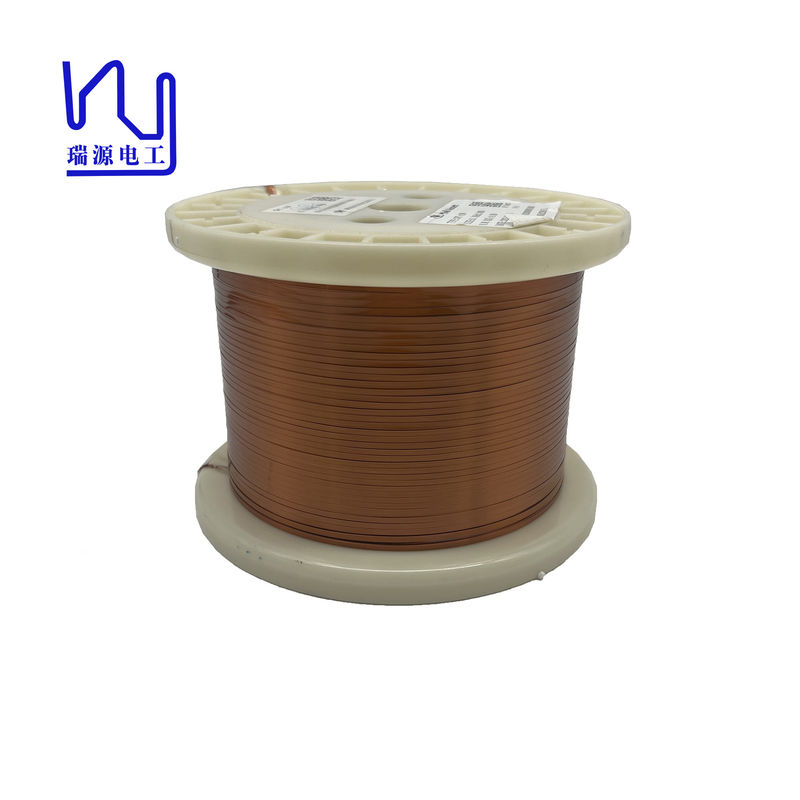

2mm x 0.1mm Enameled Flat Copper Wire for Energy Vehicles
AIW220 flat enameled copper wire is perfect for a variety of applications. It can be used for motor winding in various industries, including automotive, aerospace, and even in household appliances. Copper wire is the perfect material for motor winding because of its excellent conductivity and durability.
The breakdown voltage of this copper wire is 1.067kv, making it ideal for high-voltage applications. Its overall dimension is 0.1mm, making it easy to handle and install. The rectangular shape of this product ensures that it fits perfectly in motor windings, making the motor more efficient and reliable.
| TEST REPORT | ||||||||
| Model | SFT-AIW | Date | ||||||
| Size(mm): | 0.100 × 2.000 | Lot | ||||||
| Item |
Conductor dimension |
Unilateral insulation layer thickness |
Overall dimension | Breakdown | ||||
| Thickness | Width | Thickness | Width | Thickness | Width | voltage | ||
| Unit | mm | mm | mm | mm | mm | mm | kv | |
| SPEC | Ave | 0.1 | 2 | 0.025 | 0.025 | |||
| Max | 0.109 | 2.06 | 0.04 | 0.04 | 0.15 | 2.1 | ||
| Min | 0.091 | 1.94 | 0.01 | 0.01 | 0.7 | |||
| No. 1 | 0.104 | 2.003 | 0.021 | 0.012 | 0.146 | 2.027 | 1.063 | |
| No. 2 | 1.085 | |||||||
| No. 3 | 1.132 | |||||||
| No. 4 | 1.041 | |||||||
| No. 5 | 1.015 | |||||||
| Avg | 0.104 | 2.003 | 0.021 | 0.012 | 0.146 | 2.027 | 1.067 | |
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |
| Min. reading | 0.104 | 2.003 | 0.021 | 0.012 | 0.146 | 2.027 | 1.015 | |
| Max. reading | 0.104 | 2.003 | 0.021 | 0.012 | 0.146 | 2.027 | 1.132 | |
| Range | 0 | 0 | 0 | 0 | 0 | 0 | 0.117 | |
