| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Conductor Dimension (Width): | 1mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.5mm | Applications: | AIW 220 1.0mm High Temperature Flat Rectangular Enameled Copper Wire For Vehicle |
| Thermal Grade: | 220 | Key Word: | AIW 220 1.0mm High Temperature Flat Rectangular Enameled Copper Wire For Vehicle |
| Highlight: | 1.0mm Rectangular Enameled Copper Wire,Vehicle Rectangular Enameled Copper Wire,High Temperature Rectangular Enameled Wire |
||

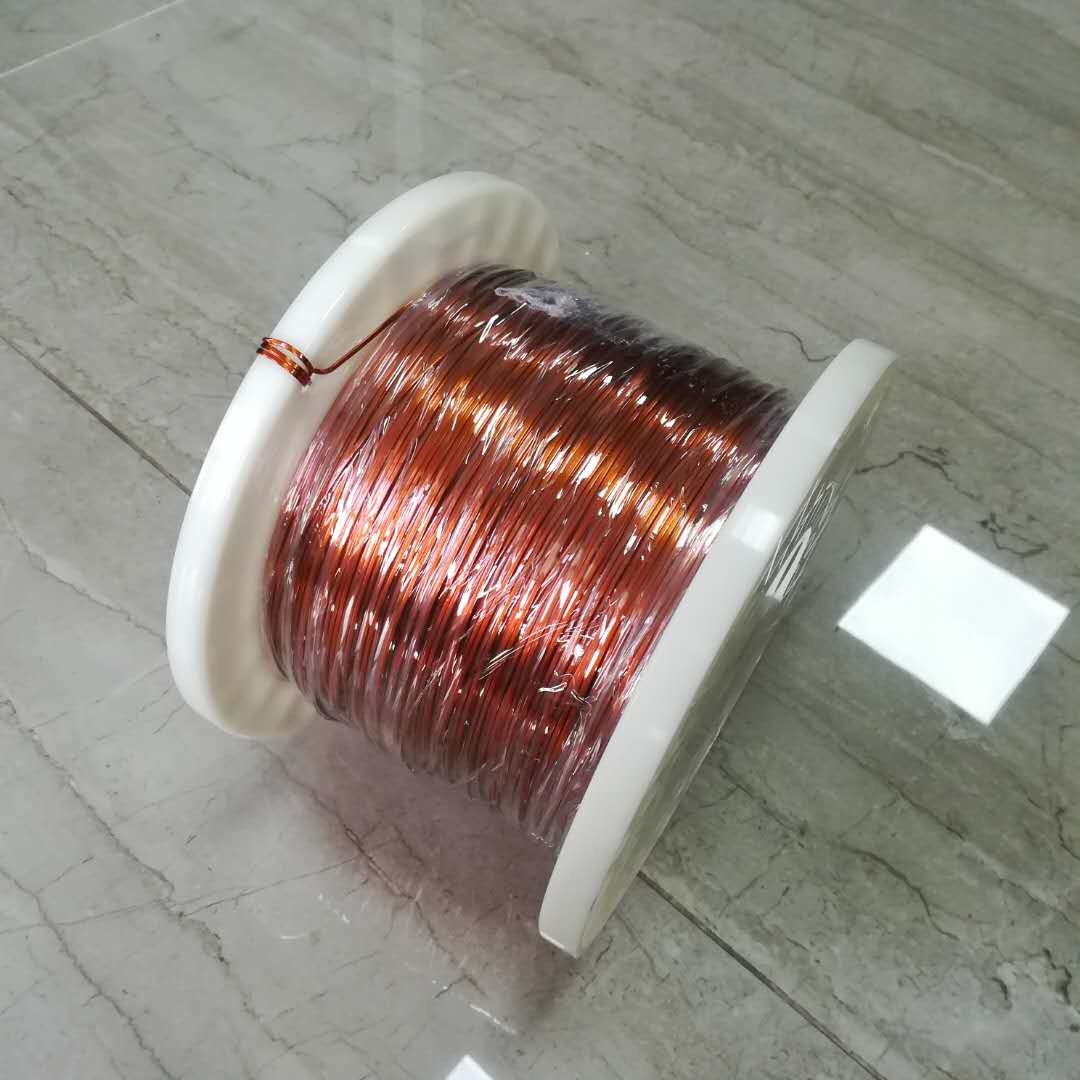

AIW 220 1.0mm High Temperature Flat Rectangular Enameled Copper Wire for Vehicle
The manufacturing process for our enameled flat copper wire follows strict quality control standards, ensuring that every product meets the highest industry benchmarks. Our commitment to quality means customers can trust that our enameled flat copper wire will consistently perform even in demanding environments. Whether you are designing a new motor or upgrading an existing device, our wire will deliver exceptional results.
| Item | dimension | dimension | Dielectric
breakdown voltage |
Conductor resistance | |||
| Thickness | Width | Thickness | Width | ||||
| Unit | mm | mm | mm | mm | kv | Ω/km 20℃ | |
| SPEC | AVE | 0.500 | 1.000 | 0.025 | 0.025 | ||
| Max | 0.509 | 1.060 | 0.040 | 0.040 | 41.330 | ||
| Min | 0.491 | 1.940 | 0.010 | 0.010 | 0.700 | ||
| No. 1 | 0.499 | 1.988 | 0.017 | 0.018 | 3.010 |
38.466 |
|
| No. 2 | 2.858 | ||||||
| No. 3 | 2.615 | ||||||
| No. 4 | 3.220 | ||||||
| No. 5 | 2.714 | ||||||
| No. 6 | |||||||
| No. 7 | |||||||
| No. 8 | |||||||
| No. 9 | |||||||
| No. 10 | |||||||
| Avg | 0.205 | 1.806 | 0.242 | 1.835 | 1.660 | ||
| Number of reading | 1 | 1 | 1 | 1 | 5 | ||
| Min. reading | 0.205 | 1.806 | 0.242 | 1.835 | 1.002 | ||
| Max. reading | 0.205 | 1.806 | 0.242 | 1.835 | 2.650 | ||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 1.648 | ||
| Result | OK | OK | OK | OK | OK | OK | |
