| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Conductor Dimension (Width): | 1mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.5mm | Applications: | Rectangular Wire AIW 220 0.7mm Enameled Flat Copper Wire For Motor Windings |
| Thermal Grade: | 220 | Key Word: | Rectangular Wire AIW 220 0.7mm Enameled Flat Copper Wire For Motor Windings |
| Highlight: | 0.7mm Enameled Flat Copper Wire,Motor Windings Enameled Flat Wire,AIW 220 Enameled Flat Copper Wire |
||

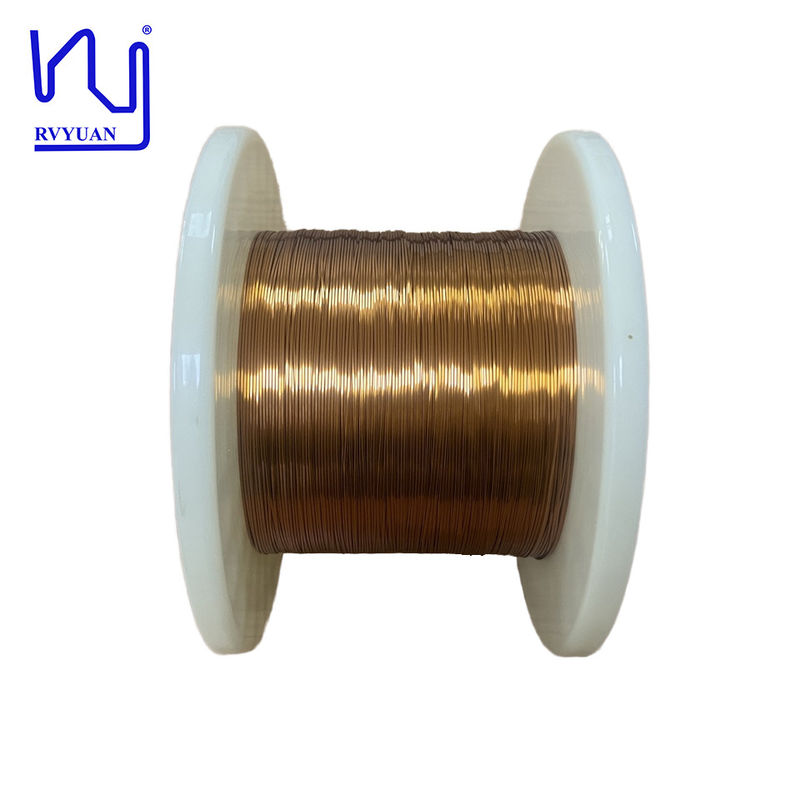

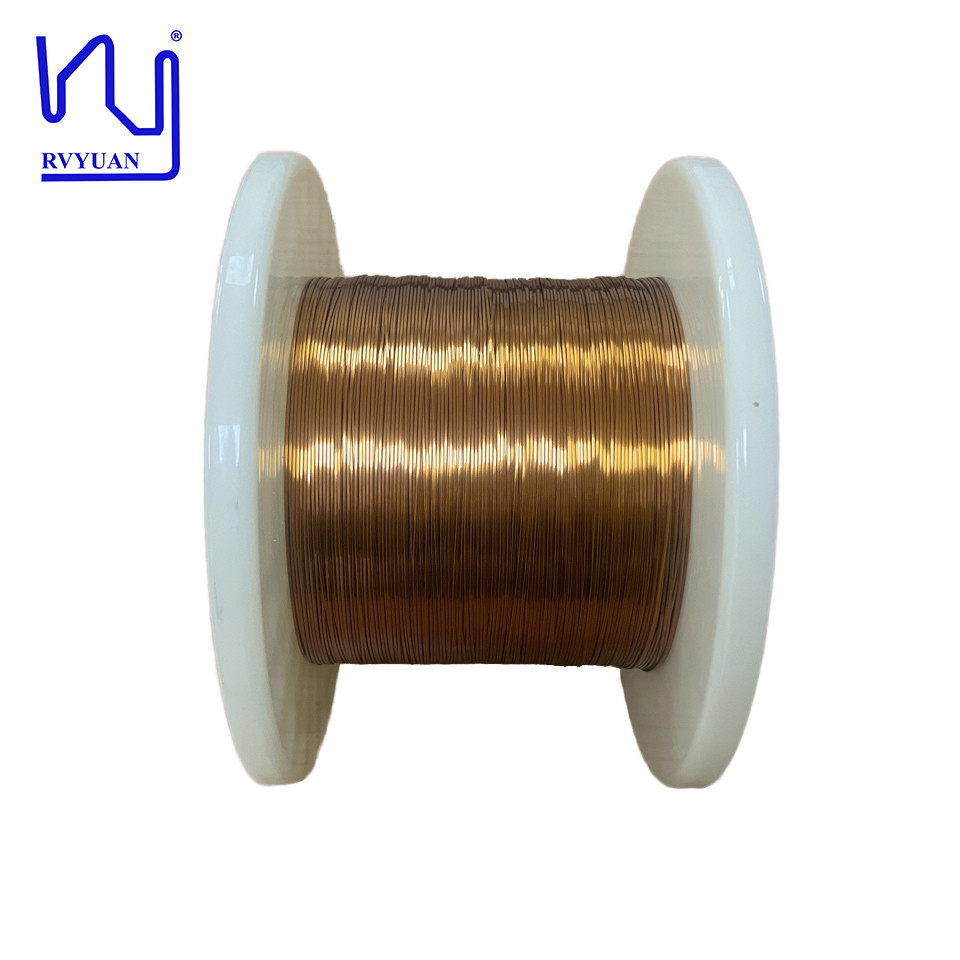

Rectangular Wire AIW 220 0.7mm Enameled Flat Copper Wire for Motor Windings
Our enameled rectangular copper wires are available in a variety of coatings, including UEW (Ultra-High Temperature Enameled Wire), AIW (Aluminum Insulated Wire), EIW (Enameled Insulated Wire), and PIW (Polyimide Insulated Wire). Each coating offers unique benefits, such as enhanced thermal stability, improved electrical insulation, and greater durability. This variety enables customers to select the most appropriate coating for their specific needs, whether they require high temperature resistance or superior electrical performance.
| Item | dimension | dimension | Dielectric
breakdown voltage |
Conductor resistance | |||
| Thickness | Width | Thickness | Width | ||||
| Unit | mm | mm | mm | mm | kv | Ω/km 20℃ | |
| SPEC | AVE | 0.500 | 1.000 | 0.025 | 0.025 | ||
| Max | 0.509 | 1.060 | 0.040 | 0.040 | 41.330 | ||
| Min | 0.491 | 1.940 | 0.010 | 0.010 | 0.700 | ||
| No. 1 | 0.499 | 1.988 | 0.017 | 0.018 | 3.010 |
38.466 |
|
| No. 2 | 2.858 | ||||||
| No. 3 | 2.615 | ||||||
| No. 4 | 3.220 | ||||||
| No. 5 | 2.714 | ||||||
| No. 6 | |||||||
| No. 7 | |||||||
| No. 8 | |||||||
| No. 9 | |||||||
| No. 10 | |||||||
| Avg | 0.205 | 1.806 | 0.242 | 1.835 | 1.660 | ||
| Number of reading | 1 | 1 | 1 | 1 | 5 | ||
| Min. reading | 0.205 | 1.806 | 0.242 | 1.835 | 1.002 | ||
| Max. reading | 0.205 | 1.806 | 0.242 | 1.835 | 2.650 | ||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 1.648 | ||
| Result | OK | OK | OK | OK | OK | OK | |
