| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Conductor Dimension (Width): | 1mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.5mm | Applications: | AIW220 Super Thin 0.5mmx1.0mm Enameled Rectangular Copper Wire For Motor |
| Thermal Grade: | 220 | Key Word: | AIW220 Super Thin 0.5mmx1.0mm Enameled Rectangular Copper Wire For Motor |
| Highlight: | Motor Enameled Rectangular Copper Wire,0.5mmx1.0mm Enameled Rectangular Copper Wire,AIW220 Enameled Rectangular Copper Wire |
||

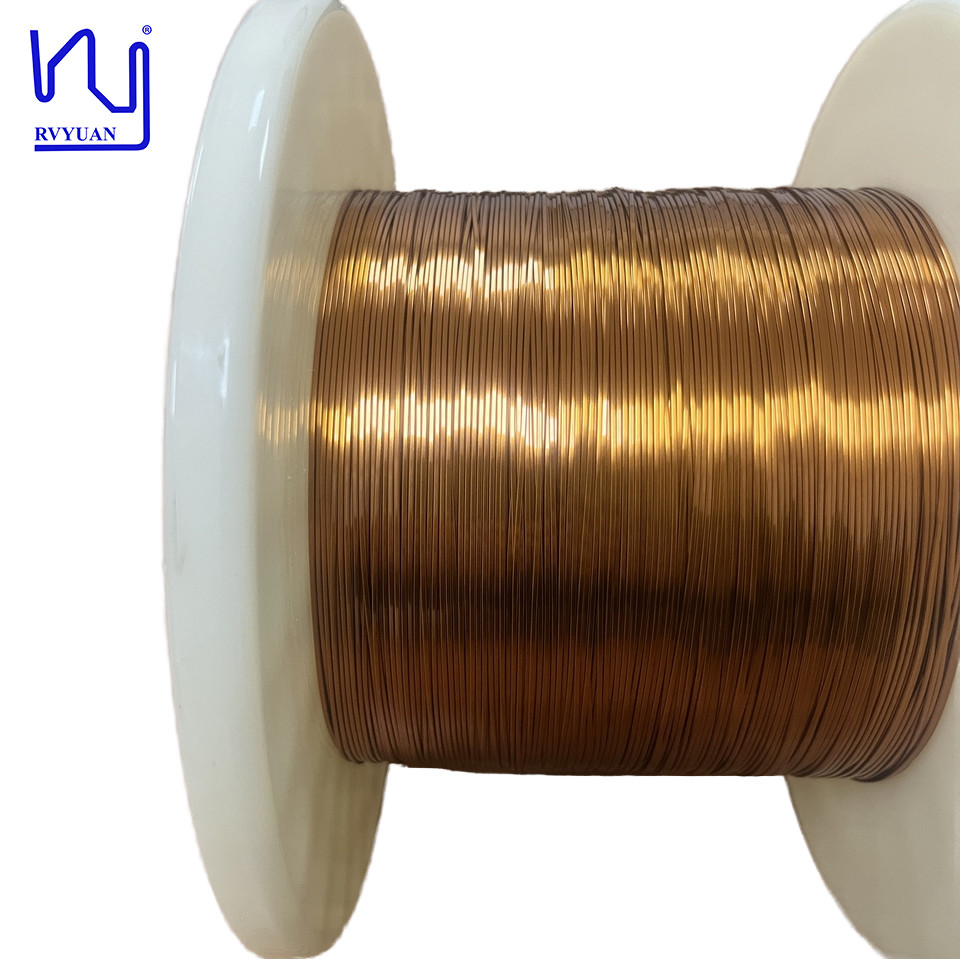

AIW220 Super Thin 0.5mmx1.0mm Enameled Rectangular Copper Wire For Motor
One of the standout features of our custom enameled rectangular copper wire is the ability to customize specifications to specific project requirements. We offer a wide range of sizes, with thicknesses ranging from 0.03mm to 3mm and widths up to 15mm. This flexibility enables engineers and designers to select the perfect wire for their application, ensuring optimal performance. Additionally, our wire boasts an impressive 25:1 width-to-thickness ratio, making it ideal for applications where space is limited but performance cannot be compromised.
| Item | dimension | dimension | Dielectric
breakdown voltage |
Conductor resistance | |||
| Thickness | Width | Thickness | Width | ||||
| Unit | mm | mm | mm | mm | kv | Ω/km 20℃ | |
| SPEC | AVE | 0.500 | 1.000 | 0.025 | 0.025 | ||
| Max | 0.509 | 1.060 | 0.040 | 0.040 | 41.330 | ||
| Min | 0.491 | 1.940 | 0.010 | 0.010 | 0.700 | ||
| No. 1 | 0.499 | 1.988 | 0.017 | 0.018 | 3.010 |
38.466 |
|
| No. 2 | 2.858 | ||||||
| No. 3 | 2.615 | ||||||
| No. 4 | 3.220 | ||||||
| No. 5 | 2.714 | ||||||
| No. 6 | |||||||
| No. 7 | |||||||
| No. 8 | |||||||
| No. 9 | |||||||
| No. 10 | |||||||
| Avg | 0.205 | 1.806 | 0.242 | 1.835 | 1.660 | ||
| Number of reading | 1 | 1 | 1 | 1 | 5 | ||
| Min. reading | 0.205 | 1.806 | 0.242 | 1.835 | 1.002 | ||
| Max. reading | 0.205 | 1.806 | 0.242 | 1.835 | 2.650 | ||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 1.648 | ||
| Result | OK | OK | OK | OK | OK | OK | |
