| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Conductor Dimension (Width): | 1mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.5mm | Applications: | AIW220 0.5mmx1.0mm Enameled Flat Copper Wire For Windings |
| Thermal Grade: | 220 | Key Word: | AIW220 0.5mmx1.0mm Enameled Flat Copper Wire For Windings |
| Highlight: | AIW220 Enameled Flat Copper Wire,Windings Enameled Flat Copper Wire,0.5mmx1.0mm Enameled Flat Copper Wire |
||

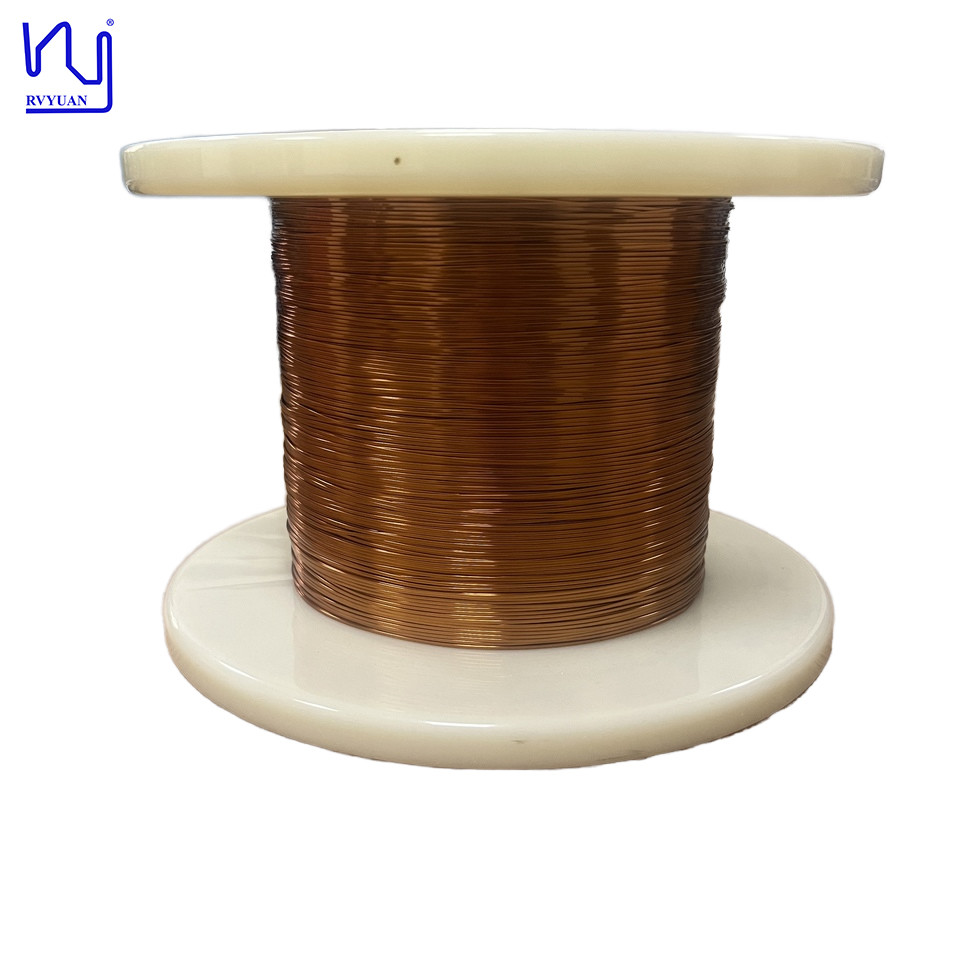

AIW220 0.5mmx1.0mm Enameled Flat Copper Wire For Windings
Enameled flat copper wire is a special type of wire that is used in a wide variety of electrical applications due to its unique properties and versatility. This wire is made of high-quality copper and then coated with an insulating enameled coating. The enameled coating not only provides electrical insulation, but also enhances the wire's resistance to heat and environmental factors. As a result, enameled flat copper wire is ideal for applications such as motors, transformers, and other electrical equipment where performance and reliability are critical.
| Item | dimension | dimension | Dielectric
breakdown voltage |
Conductor resistance | |||
| Thickness | Width | Thickness | Width | ||||
| Unit | mm | mm | mm | mm | kv | Ω/km 20℃ | |
| SPEC | AVE | 0.500 | 1.000 | 0.025 | 0.025 | ||
| Max | 0.509 | 1.060 | 0.040 | 0.040 | 41.330 | ||
| Min | 0.491 | 1.940 | 0.010 | 0.010 | 0.700 | ||
| No. 1 | 0.499 | 1.988 | 0.017 | 0.018 | 3.010 |
38.466 |
|
| No. 2 | 2.858 | ||||||
| No. 3 | 2.615 | ||||||
| No. 4 | 3.220 | ||||||
| No. 5 | 2.714 | ||||||
| No. 6 | |||||||
| No. 7 | |||||||
| No. 8 | |||||||
| No. 9 | |||||||
| No. 10 | |||||||
| Avg | 0.205 | 1.806 | 0.242 | 1.835 | 1.660 | ||
| Number of reading | 1 | 1 | 1 | 1 | 5 | ||
| Min. reading | 0.205 | 1.806 | 0.242 | 1.835 | 1.002 | ||
| Max. reading | 0.205 | 1.806 | 0.242 | 1.835 | 2.650 | ||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 1.648 | ||
| Result | OK | OK | OK | OK | OK | OK | |
