| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | OCC |
| Minimum Order Quantity: | 2 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10/week |
| Product Name: | 0.15mm High-purity 6N OCC Enameled Copper Wire For Audio | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.15mm |
| Conductor Material: | Copper | Key Word: | 0.15mm High-purity 6N OCC Enameled Copper Wire For Audio |
| Highlight: | 0.15mm OCC Enameled Copper Wire,High-purity OCC Enameled Copper Wire,6N OCC Enameled Copper Wire |
||

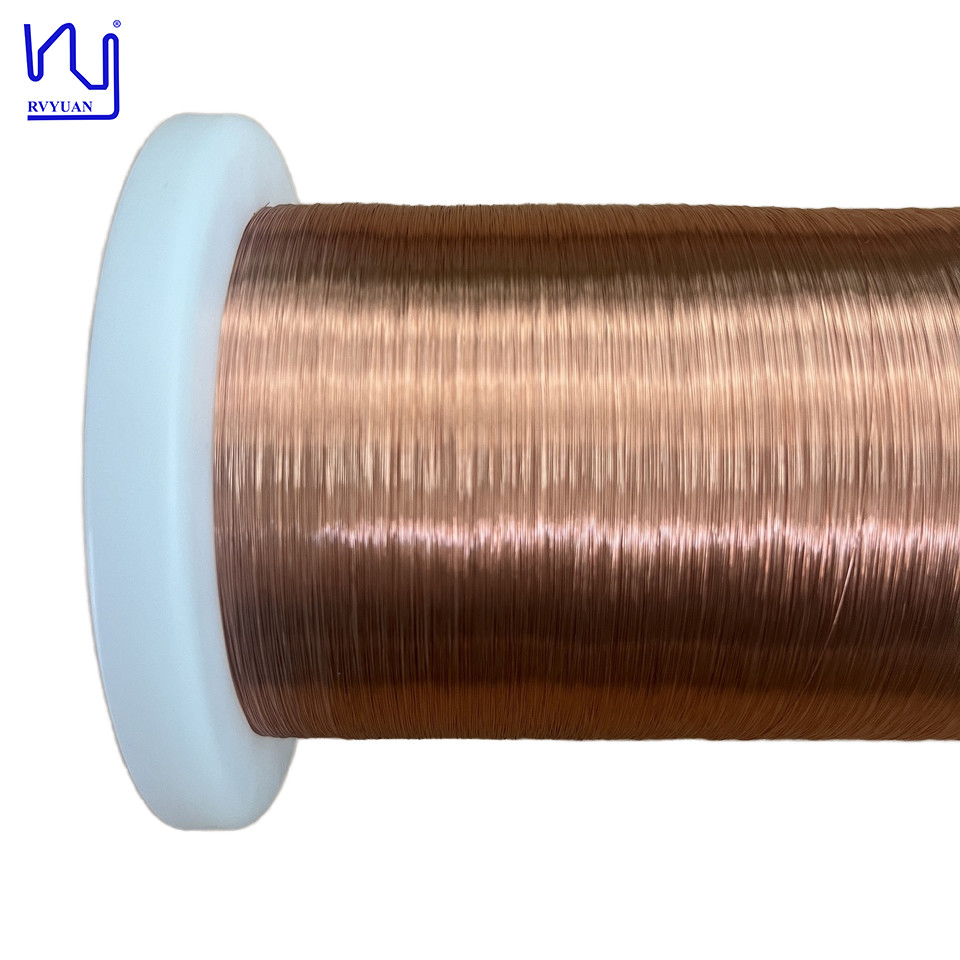

0.15mm High-purity 6N OCC Enameled Copper Wire for Audio
The OCC process is a revolutionary copper wire production method that improves the wire's conductivity and overall performance. Unlike traditional casting methods that can introduce impurities and defects, the OCC process ensures a continuous flow of molten copper, producing copper wire that is not only purer, but also more structurally uniform. This uniformity is critical for audio applications as it minimizes signal loss and distortion, resulting in clearer, more accurate sound reproduction. Our commitment to using high-purity copper wire means you can trust our products to deliver the best audio experience possible.
|
Mechanical Properties of Single crystal Copper vs. Polycrystalline Copper |
|||||
|
Sample |
Tensile strength(Mpa) |
Yield strength(Mpa) |
Elongation(%) |
Vickers hardness(HV) |
Reduction of area(%) |
|
Single crystal Copper |
128.31 |
83.23 |
48.32 |
65 |
55.56 |
|
OFC Copper |
151.89 |
121.37 |
26 |
79 |
41.22 |
Production process
Multi-scenario application
High-end home theater, high-end hifi system, KTV wiring, car audio system, multimedia audio-visual room, cinema, banquet hall, lecture hall, multimedia classroom, gym hotel restaurant audio system, office meeting room, concert and other multi-channel use.
