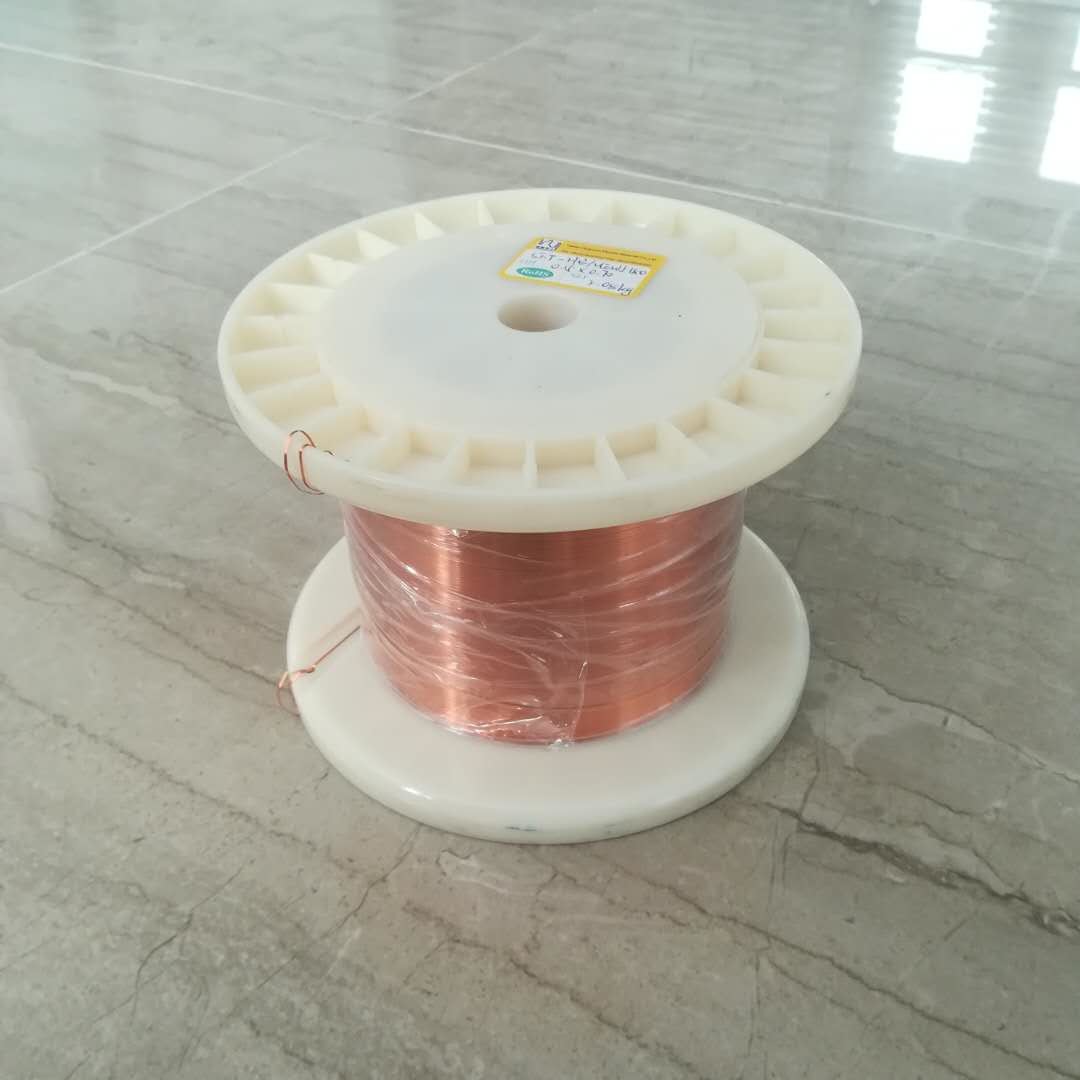

Class 155 180 220 Rectangular / Flat Enamelled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: SFT-AIW220
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 100kg/week
Detail Information
Contuctor Type: Solid Material: Copper
Shape: Rectangular Width: 9.0mm
Type: Insulated Temperature: 220℃
Certificates: ROHS/UL/SGS/ISO9001:2008 Product Name: Class 155 180 220 Rectangular / Flat Enamelled Copper Wire
Key Word: Class 155 180 220 Rectangular / Flat Enamelled Copper Wire Thickness: 0.7mm
Highlight:

Flat Enamelled Copper Wire

,

220 Enamelled Copper Wire

,

Class 155 Enamelled Copper Wire


Product Description

Class 155 180 220 Rectangular / Flat Enamelled Copper Wire



Enameled flat copper wire is a versatile and reliable solution for a wide range of electrical applications. With customizable specifications, various coating options and superior performance characteristics, it is the preferred choice of engineers and manufacturers. By choosing our enameled flat copper wire, you can ensure that your project is equipped with the best materials, ultimately improving the performance and life of your electrical system.



Characteristics

Standard

Appearance

Smooth Equality

Conductor Diameter

Width

1.60±0.06

Thickness

0.90±0.03

Thickness of Insulation

0.06-0.085

Overall Diameter

Width

1.66-1.83

Thickness

0.99-1.10

Pinhole

Max. 3 hole/m



Elongation

Min.30 %



Conductor Resistance (Ω/km at 20℃)

Max 14.57



Breakdown Voltage

Min. 2.00kv
