| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Contuctor Type: | Solid | Material: | Copper |
|---|---|---|---|
| Shape: | Rectangular | Width: | 4.5mm |
| Type: | Insulated | Temperature: | 220℃ |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Product Name: | 1.60*4.50mm 220C Flat Enamel Copper Wire For Automotive |
| Key Word: | 1.60*4.50mm 220C Flat Enamel Copper Wire For Automotive | Thickness: | 1.6mm |
| Highlight: | 220C Flat Enamel Copper Wire,1.60*4.50mm Flat Enamel Copper Wire,Automotive Flat Enamel Copper Wire |
||

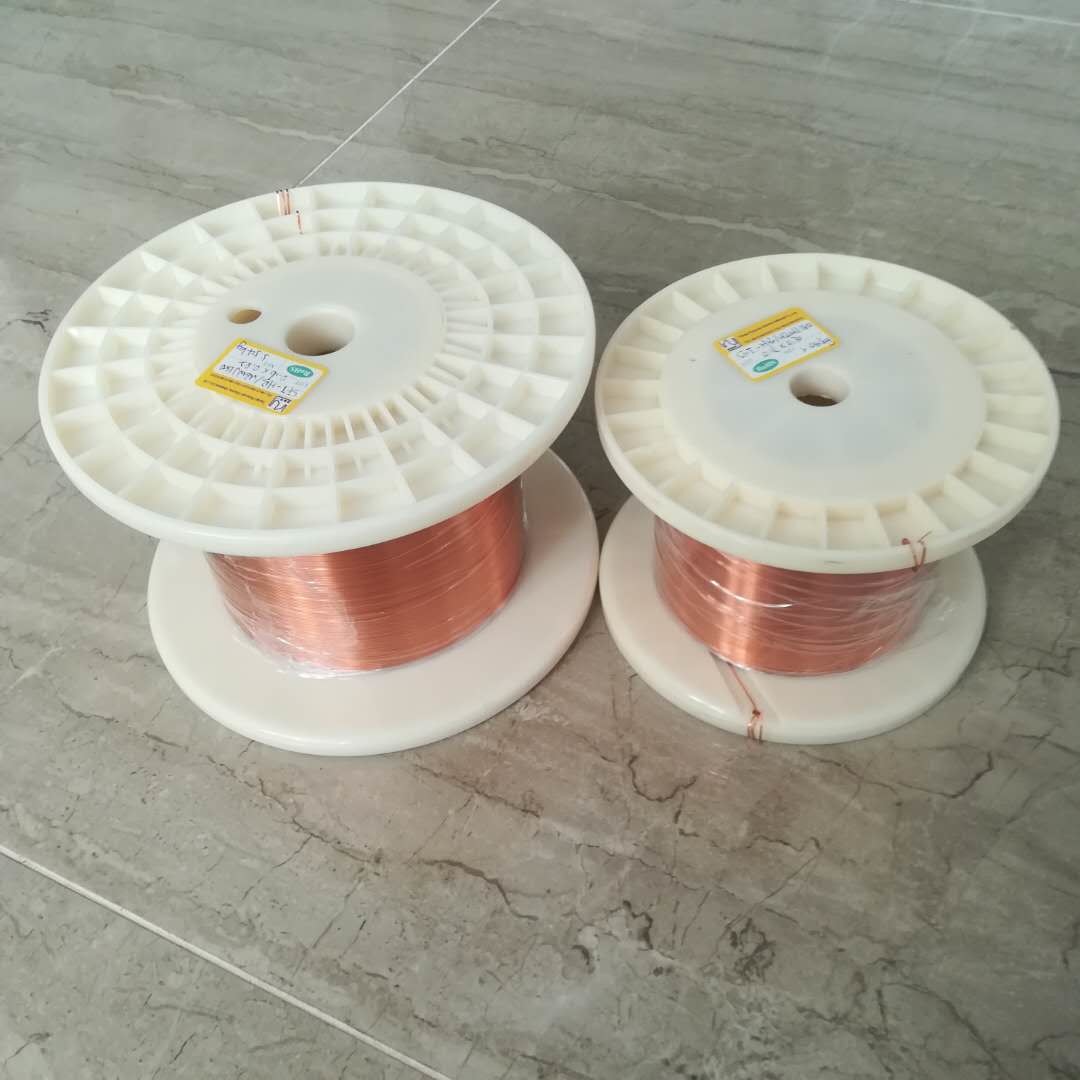

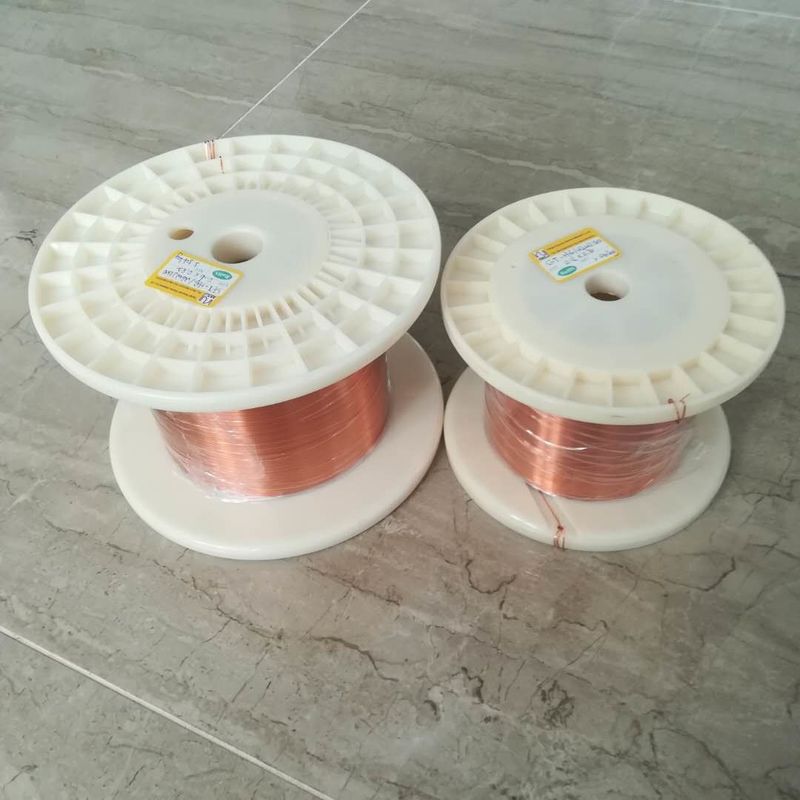

1.60*4.50mm 220C Flat Enamel Copper Wire for Automotive
The manufacturing process for our enameled flat copper wire follows strict quality control standards, ensuring that every product meets the highest industry benchmarks. Our commitment to quality means customers can trust that our enameled flat copper wire will consistently perform even in demanding environments. Whether you are designing a new motor or upgrading an existing device, our wire will deliver exceptional results.
|
Key word |
AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive |
|||||
|
Conductor Dimension(mm)
|
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km)
|
Breakdown voltage(kv) |
||
|
Width |
Thickness
|
Width |
Thickness |
|||
|
9.000±0.08 |
0.700±0.03 |
0.025±0.015 |
Max. 9.10 |
Max.0.78 |
2.978 |
0.7 Min |
