| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Contuctor Type: | Solid | Material: | Copper |
|---|---|---|---|
| Shape: | Rectangular | Width: | 9.0mm |
| Type: | Insulated | Temperature: | 220℃ |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Product Name: | UEW/EIW/AIW Insulated Copper 0.7mmmx 9.0mm Enameled Flat Copper WireUEW/EIW/AIW Class 180/200/220 Insulated Copper Enameled Flat Copper Wire For Winding |
| Key Word: | UEW/EIW/AIW Class 180/200/220 Insulated Copper Enameled Flat Copper Wire For Winding | Thickness: | 0.7mm |
| Highlight: | UEW rectangular copper wire,EIW rectangular copper wire,AIW rectangular enameled copper wire |
||

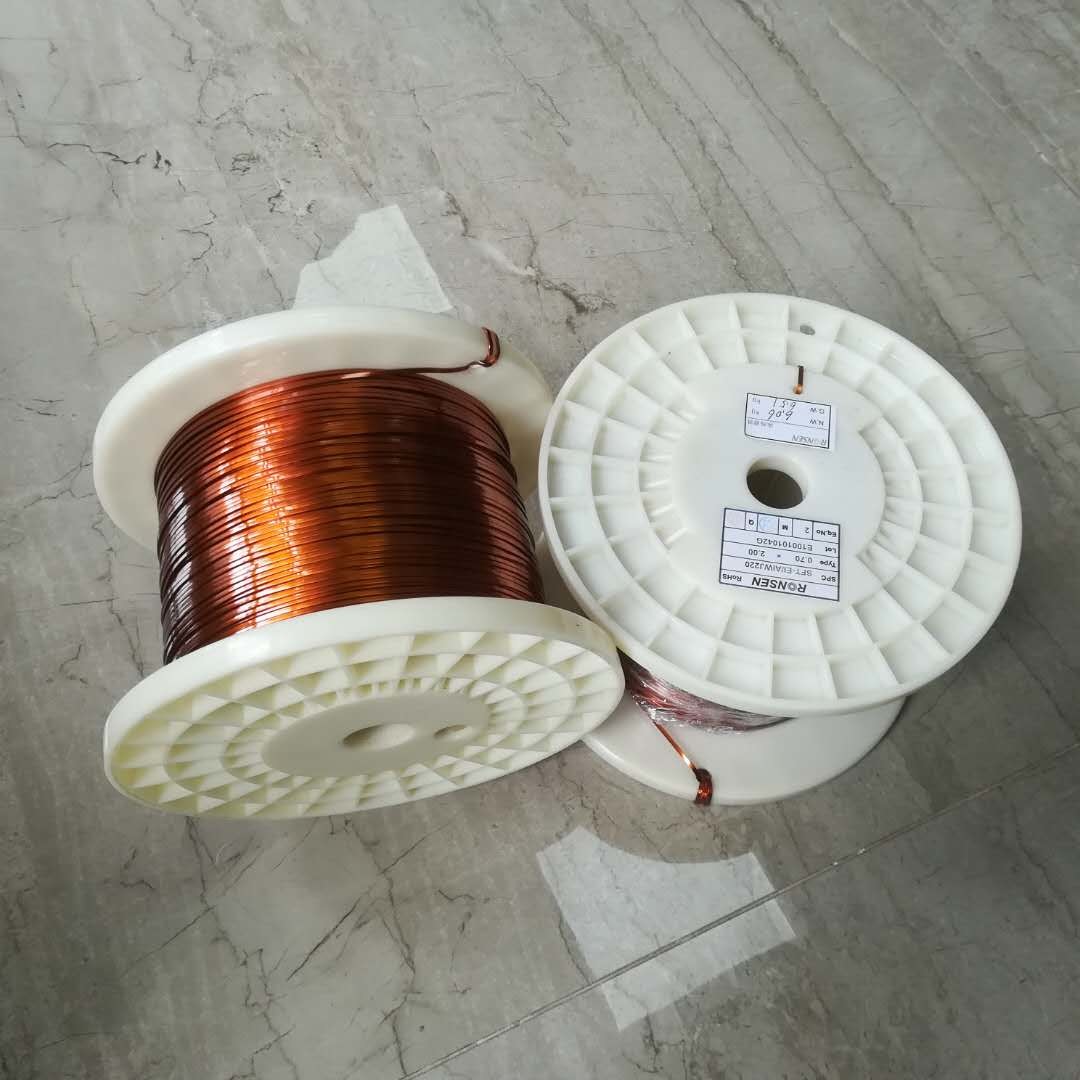

UEW/EIW/AIW Class 180/200/220 Insulated Copper Enameled Flat Copper Wire For Winding
Our enameled rectangular copper wires are available in a variety of coatings, including UEW enamel, AIW enamel, EIW enamel, and PIW enamel. Each coating offers unique benefits, such as enhanced thermal stability, improved electrical insulation, and greater durability. This variety enables customers to select the most appropriate coating for their specific needs, whether they require high temperature resistance or superior electrical performance.
|
Key word |
AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive |
|||||
|
Conductor Dimension(mm)
|
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km)
|
Breakdown voltage(kv) |
||
|
Width |
Thickness
|
Width |
Thickness |
|||
|
9.000±0.08 |
0.700±0.03 |
0.025±0.015 |
Max. 9.10 |
Max.0.78 |
2.978 |
0.7 Min |
