| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Contuctor Type: | Solid | Material: | Copper |
|---|---|---|---|
| Shape: | Rectangular | Width: | 9.0mm |
| Type: | Insulated | Temperature: | 220℃ |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Product Name: | UEW/EIW/AIW Insulated Copper 0.7mmmx 9.0mm Enameled Flat Copper Wire |
| Key Word: | UEW/EIW/AIW Insulated Copper 0.7mmmx 9.0mm Enameled Flat Copper Wire | Thickness: | 0.7mm |
| Highlight: | 0.7mmmx 9.0mm Enameled Flat Copper Wire,UEW Enameled Flat Copper Wire,AIW Enameled Flat Copper Wire |
||

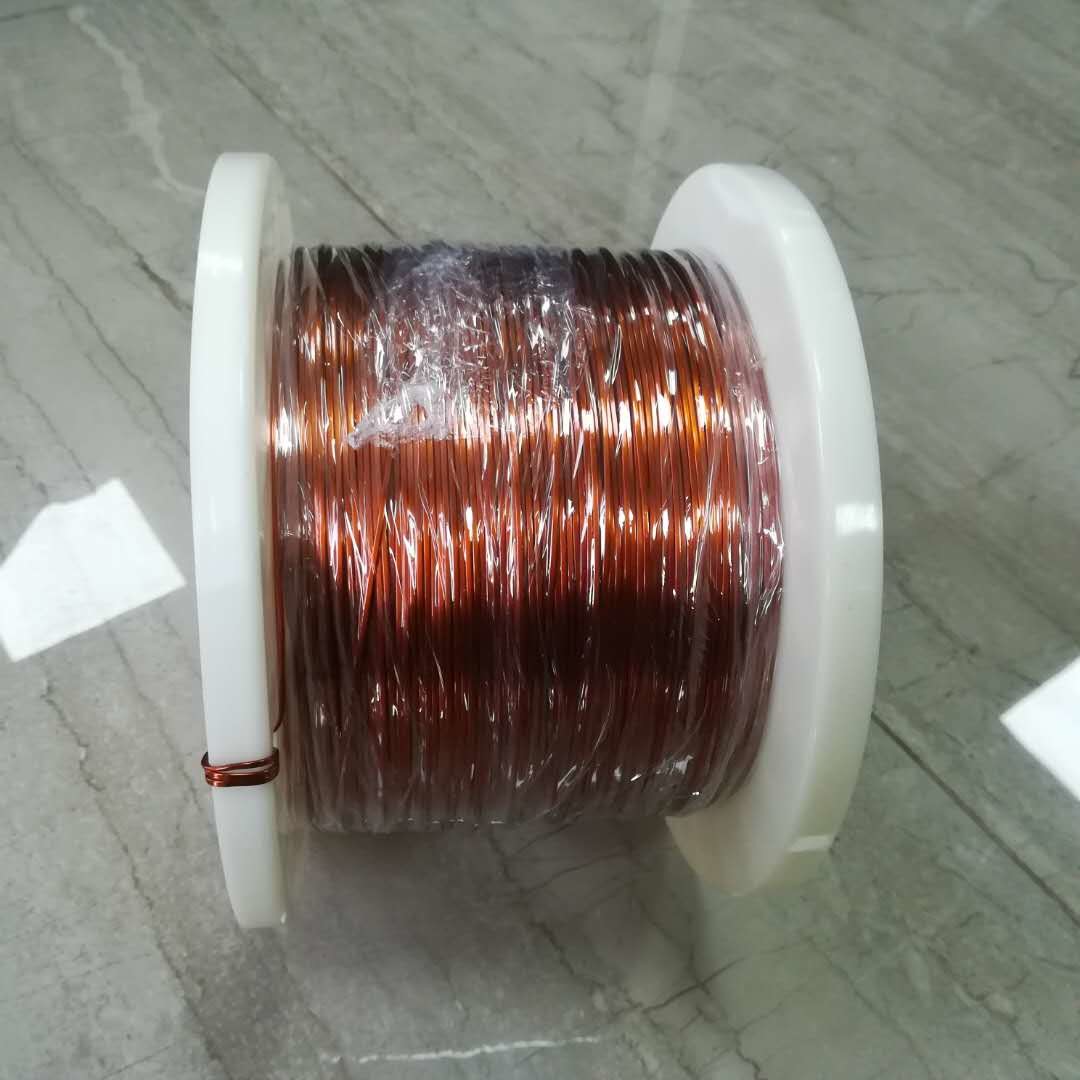

UEW/EIW/AIW Insulated Copper 0.7mmmx 9.0mm Enameled Flat Copper Wire
One of the standout features of our custom enameled rectangular copper wire is the ability to customize specifications to specific project requirements. We offer a wide range of sizes, with thicknesses ranging from 0.03mm to 3mm and widths up to 15mm. This flexibility enables engineers and designers to select the perfect wire for their application, ensuring optimal performance. Additionally, our wire boasts an impressive 25:1 width-to-thickness ratio, making it ideal for applications where space is limited but performance cannot be compromised.
|
Key word |
AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive |
|||||
|
Conductor Dimension(mm)
|
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km)
|
Breakdown voltage(kv) |
||
|
Width |
Thickness
|
Width |
Thickness |
|||
|
9.000±0.08 |
0.700±0.03 |
0.025±0.015 |
Max. 9.10 |
Max.0.78 |
2.978 |
0.7 Min |
