| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Contuctor Type: | Solid | Material: | Copper |
|---|---|---|---|
| Shape: | Rectangular | Width: | 9.0mm |
| Type: | Insulated | Temperature: | 220℃ |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Product Name: | AIW 220 0.7mmmx 9.0mm Enameled Flat Copper Wire For Automotive |
| Key Word: | AIW 220 0.7mmmx 9.0mm Enameled Flat Copper Wire For Automotive | Thickness: | 0.7mm |
| Highlight: | AIW 220 Enameled Flat Copper Wire,0.7mmmx 9.0mm Enameled Flat Copper Wire,Automotive Enameled Flat Copper Wire |
||

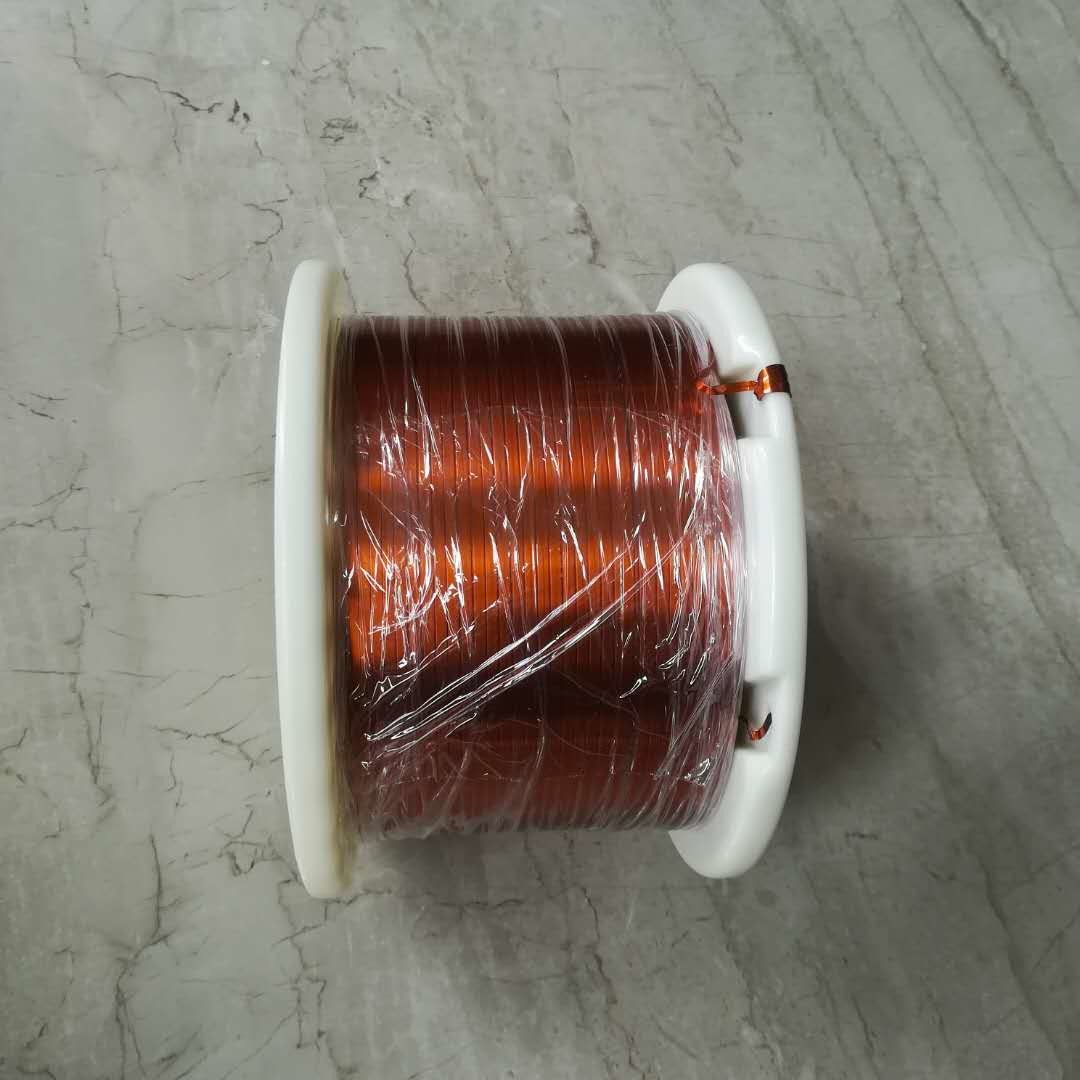

AIW 220 0.7mmmx 9.0mm Enameled Flat Copper Wire For Automotive
Enameled flat copper wire is a special type of wire that is used in a wide variety of electrical applications due to its unique properties and versatility. This wire is made of high-quality copper and then coated with an insulating enameled coating. The enameled coating not only provides electrical insulation, but also enhances the wire's resistance to heat and environmental factors. As a result, enameled flat copper wire is ideal for applications such as motors, transformers, and other electrical equipment where performance and reliability are critical.
|
Key word |
AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive |
|||||
|
Conductor Dimension(mm)
|
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km)
|
Breakdown voltage(kv) |
||
|
Width |
Thickness
|
Width |
Thickness |
|||
|
9.000±0.08 |
0.700±0.03 |
0.025±0.015 |
Max. 9.10 |
Max.0.78 |
2.978 |
0.7 Min |
