| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Contuctor Type: | Solid | Material: | Copper |
|---|---|---|---|
| Shape: | Rectangular | Width: | 9.0mm |
| Type: | Insulated | Temperature: | 220℃ |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Product Name: | AIW 220 8.0mm Enameled Flat Copper Wire For Automotive |
| Key Word: | AIW 220 8.0mm Enameled Flat Copper Wire For Automotive | Thickness: | 0.7mm |
| Highlight: | AIW 220 Enameled Flat Copper Wire,8.0mm Enameled Flat Copper Wire,Automotive Enameled Flat Copper Wire |
||

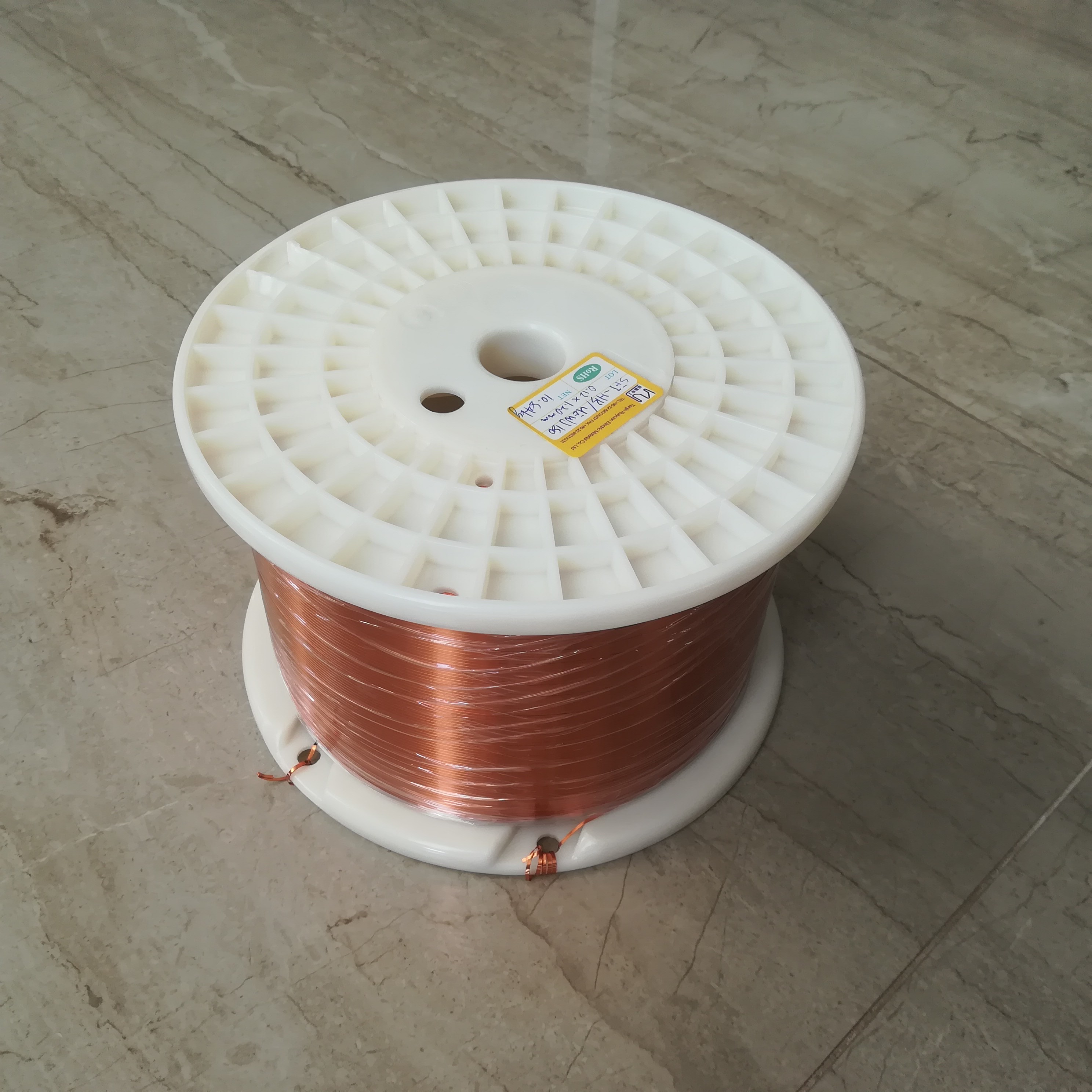

AIW 220 8.0mm Enameled Flat Copper Wire For Automotive
Enameled flat copper wire is a versatile and reliable solution for a wide range of electrical applications. With customizable specifications, various coating options and superior performance characteristics, it is the preferred choice of engineers and manufacturers. By choosing our enameled flat copper wire, you can ensure that your project is equipped with the best materials, ultimately improving the performance and life of your electrical system.
|
Key word |
AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive |
|||||
|
Conductor Dimension(mm)
|
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km)
|
Breakdown voltage(kv) |
||
|
Width |
Thickness
|
Width |
Thickness |
|||
|
9.000±0.08 |
0.700±0.03 |
0.025±0.015 |
Max. 9.10 |
Max.0.78 |
2.978 |
0.7 Min |
