| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | EI/AIW 200/220 1.5x5mm Rectangular Flat Enameled Copper Wire For Motor | Width: | 5.0mm |
|---|---|---|---|
| Product Name: | EI/AIW 200/220 1.5x5mm Rectangular Flat Enameled Copper Wire For Motor | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 1.5mm |
| Material: | Copper | Key Word: | EI/AIW 200/220 1.5x5mm Rectangular Flat Enameled Copper Wire For Motor |
| Highlight: | 1.5x5mm Rectangular Copper Wire,EI/AIW Rectangular Copper Wire,Motor Rectangular Copper Wire |
||

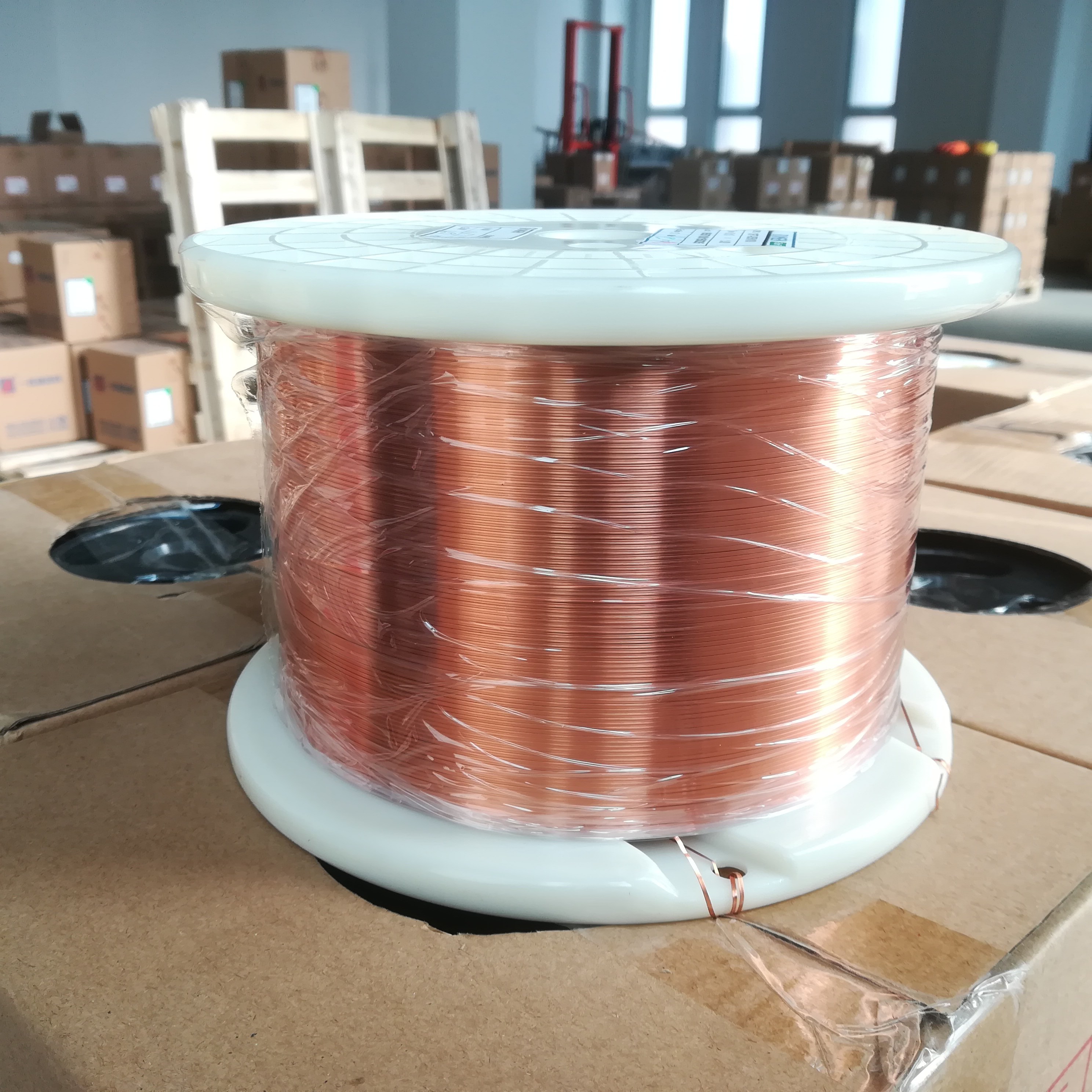

EI/AIW 200/220 1.5x5mm Rectangular Flat Enameled Copper Wire For Motor
One of the standout features of our custom enameled rectangular copper wire is the ability to customize specifications to specific project requirements. We offer a wide range of sizes, with thicknesses ranging from 0.03mm to 3mm and widths up to 15mm. This flexibility enables engineers and designers to select the perfect wire for their application, ensuring optimal performance. Additionally, our wire boasts an impressive 25:1 width-to-thickness ratio, making it ideal for applications where space is limited but performance cannot be compromised.
|
Model |
Size(mm) |
Conductor Dimension(mm) |
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km) |
Breakdown voltage(kv) |
Pinhole |
Elongation |
Soderability |
||||||
|
Width |
Tolerance |
Thickness |
Tolerance |
Width |
Thickness |
||||||||||
|
SFT-AIW |
1.50x5.00 |
|
±0.06 |
1.500 |
±0.03 |
0.025±0.015 |
Max.5.1 |
Max.1.58 |
2.960 |
0.7 Min |
3Max. |
30 Min. |
350 ℃ |
||
