| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom UEW / EIW / PEW Enameled Copper Wire Solid Conductor 0.012mm - 0.10mm | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | Custom UEW / EIW / PEW Enameled Copper Wire Solid Conductor 0.012mm - 0.10mm |
| Highlight: | Solid Conductor Enameled Copper Wire,Custom Enameled Copper Wire,0.10mm Enameled Copper Wire |
||

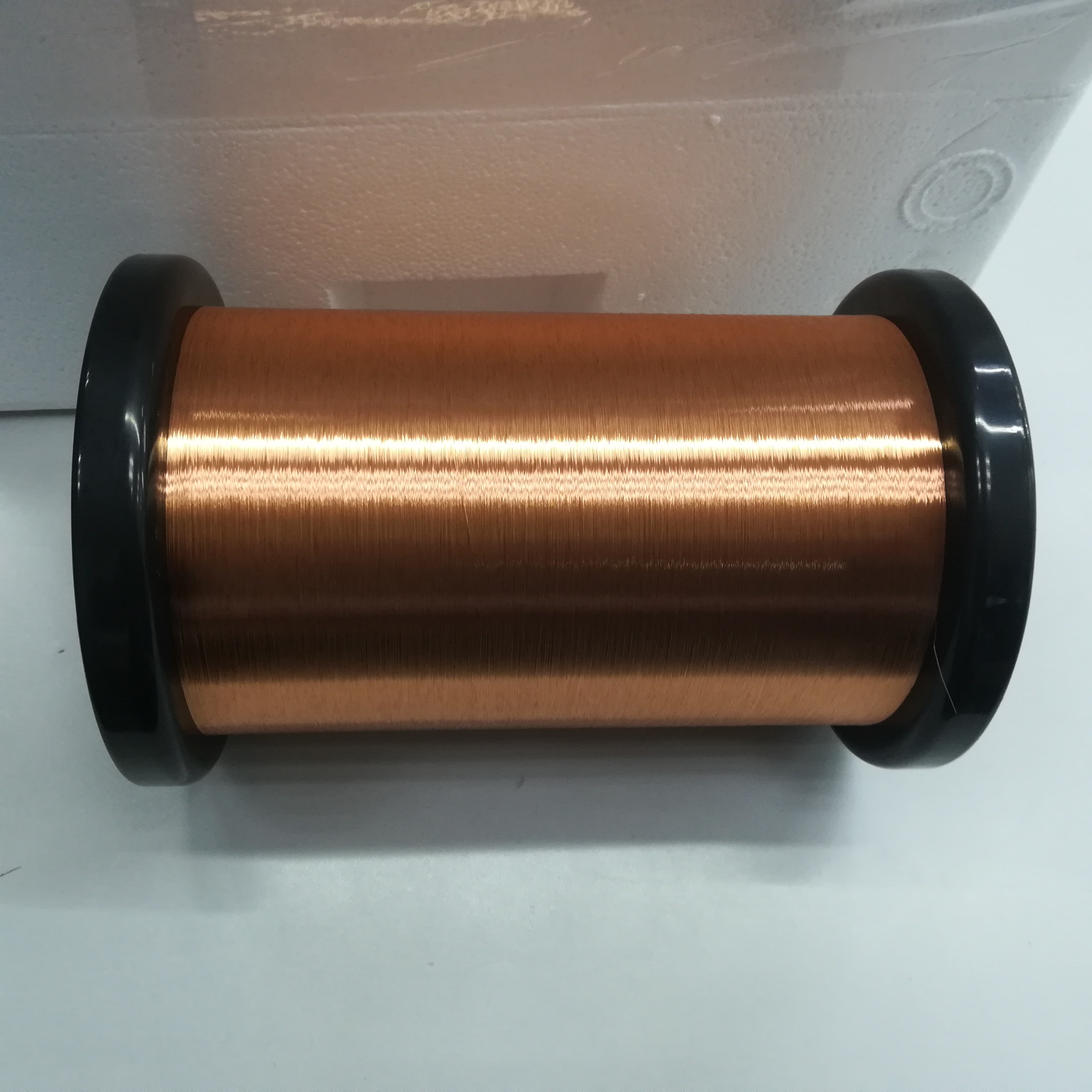

Custom UEW / EIW / PEW Enameled Copper Wire Solid Conductor 0.012mm - 0.10mm
In the medical field, the importance of high-quality materials cannot be overstated.
Ruiyuan's enameled copper wire is used in medical devices where precision and reliability are critical. From MRI machines to ultrasound equipment, our ultra-fine winding wire is an integral part of the operation of these precision instruments.
The temperature ratings of our wire (155 degrees, 180 degrees, 200 degrees, and 220 degrees) ensure that it can withstand the harsh environments common in medical applications. This durability not only improves the performance of medical equipment, but also contributes to patient safety and care.
| Product |
Custom UEW / EIW / PEW Enameled Copper Wire Solid Conductor 0.012mm - 0.10mm |
|
Key word |
Custom UEW / EIW / PEW Enameled Copper Wire Solid Conductor 0.012mm - 0.10mm |
|
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
1st Sample |
2nd Sample |
3rd Sample |
||||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
OK |
|
|
Conductor Diameter |
0.090± |
0.002 |
0.090 |
0.090 |
0.090 |
OK |
|
Thickness of Insulation |
≥ 0.010 mm |
0.013 |
0.012 |
0.013 |
OK |
|
|
Overall Diameter |
≤ 0.107 mm |
0.103 |
0.102 |
0.103 |
OK |
|
|
DC Resistance |
≤ 2.835Ω/m |
2.702 |
2.729 |
2.716 |
OK |
|
|
Elongation |
≥ 17 % |
22.5 |
23.4 |
21.9 |
OK |
|
|
Breakdown Voltage |
≥ 700 V |
2081 |
2143 |
1986 |
OK |
|
|
Pin Hole |
≤ 5 Faults/5m |
0 |
0 |
0 |
OK |
|
|
Continuity |
≤12Faults/30m |
0 |
0 |
0 |
OK |
|
|
Test Items |
Technical Requests |
Results |
||||
|
Adhesive |
Coating layer is good |
OK |
||||
|
Cut-through |
200℃ 2mins no breakdown |
OK |
||||
|
Heat Shock |
175±5℃/30min no crack |
OK |
||||
|
Solder Ability |
390± 5℃ 2Sec Smooth |
OK |
||||
