| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155 0.09mm 0.08mm Super Thin Enameled Copper Wire Magnet Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | 2UEW155 0.09mm 0.08mm Super Thin Enameled Copper Wire Magnet Wire |
| Highlight: | Magnet Wire Enameled Copper Wire,0.09mm Enameled Copper Wire,0.08mm Enameled Copper Wire |
||

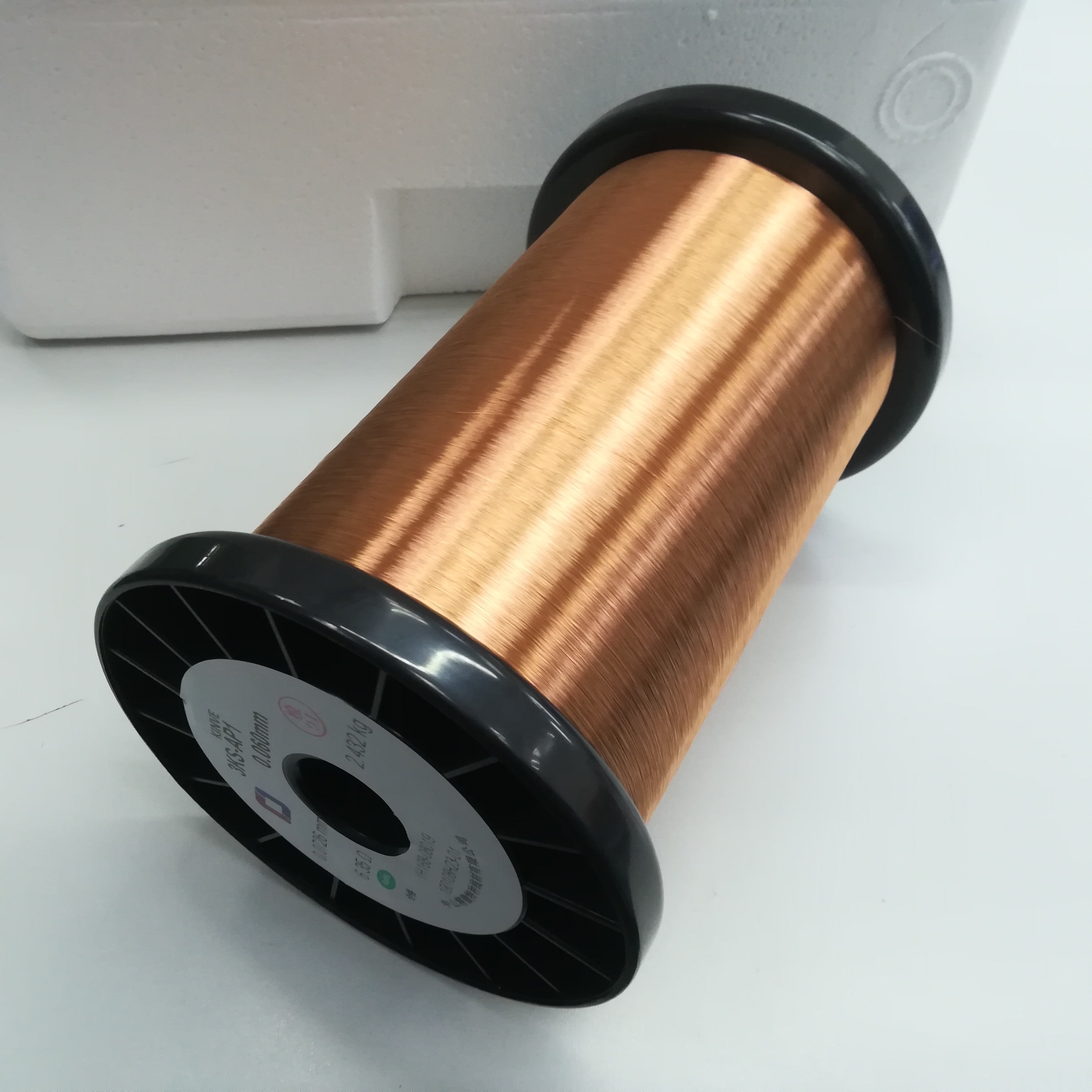

2UEW155 0.09mm 0.08mm Super Thin Enameled Copper Wire Magnet Wire
he applications for our ultra-fine enameled copper wire are wide and varied. In the world of electronics, this wire is essential for creating compact and efficient circuits. Its tiny diameter allows for complex windings, allowing manufacturers to produce smaller, lighter devices without compromising performance.
Whether in smartphones, laptops or other consumer electronics, our wire plays a key role in ensuring optimal functionality and reliability. The precision of our wire enables engineers to design more complex electronic components, pushing the limits of modern technology.
| Product |
2UEW155 0.09mm super thin enameled copper wire for microelectronics |
|
Key word |
2UEW155 0.09mm super thin enameled copper wire for microelectronics |
|
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
1st Sample |
2nd Sample |
3rd Sample |
||||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
OK |
|
|
Conductor Diameter |
0.090± |
0.002 |
0.090 |
0.090 |
0.090 |
OK |
|
Thickness of Insulation |
≥ 0.010 mm |
0.013 |
0.012 |
0.013 |
OK |
|
|
Overall Diameter |
≤ 0.107 mm |
0.103 |
0.102 |
0.103 |
OK |
|
|
DC Resistance |
≤ 2.835Ω/m |
2.702 |
2.729 |
2.716 |
OK |
|
|
Elongation |
≥ 17 % |
22.5 |
23.4 |
21.9 |
OK |
|
|
Breakdown Voltage |
≥ 700 V |
2081 |
2143 |
1986 |
OK |
|
|
Pin Hole |
≤ 5 Faults/5m |
0 |
0 |
0 |
OK |
|
|
Continuity |
≤12Faults/30m |
0 |
0 |
0 |
OK |
|
|
Test Items |
Technical Requests |
Results |
||||
|
Adhesive |
Coating layer is good |
OK |
||||
|
Cut-through |
200℃ 2mins no breakdown |
OK |
||||
|
Heat Shock |
175±5℃/30min no crack |
OK |
||||
|
Solder Ability |
390± 5℃ 2Sec Smooth |
OK |
||||
