| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.020mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | 0.02mm Ultra Fine Copper Wire Magnet Wire For Mini Motors | Insulation: | Polyurethane |
|---|---|---|---|
| Conductor Type: | Solid | Temperature: | 155 |
| Key Word: | 0.02mm Ultra Fine Copper Wire Magnet Wire For Mini Motors | Stock: | Avalable |
| Diameter: | 0.020mm | Material: | Copper |
| Highlight: | 0.02mm Ultra Fine Copper Wire,Mini Motors Ultra Fine Copper Wire,Magnet Ultra Fine Copper Wire |
||

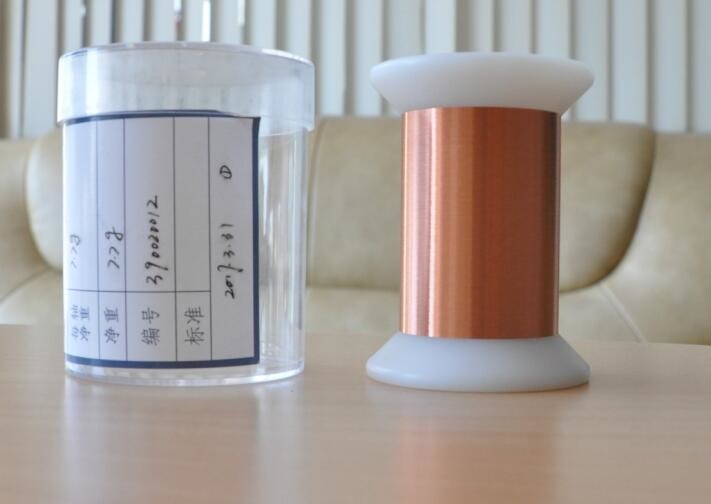

0.02mm Ultra Fine Copper Wire Magnet Wire For Mini Motors
Our commitment to quality is reflected in our manufacturing process, where we prioritize the production of premium magnet wire. Ultra-fine magnet wire, from 0.012mm to 0.08mm, is carefully crafted to ensure that each wire meets the highest performance standards. For applications that require higher temperature resistance, we offer thicker magnet wires rated at 200 degrees, 220 degrees, and 240 degrees. This comprehensive range of products allows us to meet the varying needs of our customers and provide the right solution for their specific application.
|
Characteristics
|
Technical requests
|
Test Results
|
Conclusion
|
|||
|
|
Sample1
|
Sample 2
|
Sample 3
|
|
||
|
Surface
|
Good
|
OK
|
OK
|
OK
|
OK
|
|
|
Bare Wire Diameter
|
0.020±
|
0.001
|
0.020
|
0.020
|
0.020
|
OK
|
|
0.001
|
||||||
|
Overall diameter
|
≤ 0.027 mm
|
0.0260
|
0.0260
|
0.0260
|
OK
|
|
|
Insulation thickness
|
≥ 0.003 mm
|
0.0060
|
0.0060
|
0.0060
|
OK
|
|
|
Elongation
|
≥ 8 %
|
11
|
10
|
11
|
OK
|
|
|
Breakdown voltage
|
≥ 200 V
|
1234
|
1178
|
1246
|
OK
|
|
|
Pinbole test
|
≤ 24 hole/30m
|
0
|
0
|
0
|
OK
|
|
|
Electrical Resistance
|
≤ 59.779 Ω/m
|
55.68
|
55.73
|
55.64
|
OK
|
|
|
Remark
|
||||||
|
Test items
|
Technical Requests
|
Results
|
Conclusion
|
|||
|
Adhesive
|
No crack
|
OK
|
Aprroved
|
|||
|
Heat Shock
|
175± 5℃/30min no crack
|
OK
|
||||
|
Solder Ability
|
390± 5℃ 2Sec Smooth
|
OK
|
||||
|
Cut-through
|
200℃ 2min No breakdown
|
OK
|
||||
