| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.032mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 200 Ton/Tons per Month |
| Product Name: | 2UEW F/H Super Thin 0.032mm Enameled Copper Winding Wire Solerable Type | Diameter: | 0.032mm |
|---|---|---|---|
| Insulation: | UEW | Thermal Class: | 155/180 |
| Type: | Solid | Key Word: | 2UEW F/H Super Thin 0.032mm Enameled Copper Winding Wire Solerable Type |
| Highlight: | 0.032mm Enameled Copper Winding Wire,Solerable Enameled Copper Winding Wire,Solerable Type enamelled wire |
||

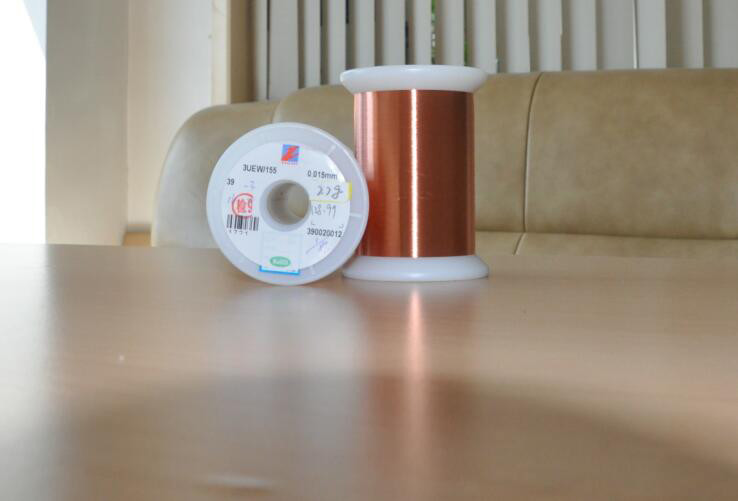

2UEW F/H Super Thin 0.032mm Enameled Copper Winding Wire Solerable Type
our ultra-fine magnet wires are used in a variety of other fields, including telecommunications, automotive, and medical devices. Our products are versatile and can be integrated into a variety of applications, from high-frequency transformers to sensitive medical devices. Our wires are resistant to high temperatures and maintain excellent insulation properties, making them the first choice for manufacturers who want to increase product reliability and service life.
|
Characteristics |
Technical requests |
Test Results |
Conclusion |
||
|
Sample 1 |
Sample 2 |
||||
|
Surface |
Good |
|
OK |
OK |
OK |
|
Bare Wire Diameter |
0.032± |
0.001 |
0.032 |
0.032 |
OK |
|
0.001 |
|||||
|
Coating Thickness |
≥ 0.005 mm |
0.009 |
0.008 |
OK |
|
|
Overall Diameter |
≤ 0.042 mm |
0.041 |
0.04 |
OK |
|
|
Conductor Resistance |
≤ 22.843 Ω/m |
22.032 |
22.076 |
OK |
|
|
Elongation |
≥ 10 % |
14 |
15 |
OK |
|
|
Breakdown Voltage |
≥ 275 V |
1456 |
1312 |
OK |
|
|
Pinhole Test |
≤ 5 faults/5m |
0 |
0 |
OK |
|
|
Continuity |
---- |
---- |
---- |
---- |
|
|
Test Items |
Technical Requests |
Resulat |
|
|
|
|
Adhesive |
Coating layer is good |
OK |
|
|
|
|
Cut-through |
230℃ 2min no breakdown |
OK |
|
|
|
|
Heat Shock |
200± 5℃/30min no crack |
OK |
|
|
|
|
Solder Ability |
390± 5℃ 2Sec Smooth |
OK |
|
|
|
|
Solvent Resistance |
No blister, no expansion, no shed |
OK |
|
|
|
