| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Polyurethane 2UEW-F 0.04mm Enameled Copper Winding Wire 2uew / 3uew | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | Polyurethane 2UEW-F 0.04mm Enameled Copper Winding Wire 2uew / 3uew |
| Type: | Polyurethane 2UEW-F 0.04mm Enameled Copper Winding Wire 2uew / 3uew | ||
| Highlight: | 2UEW-F Enameled Copper Winding Wire,Polyurethane Enameled Copper Winding Wire,0.04mm Enameled Copper Winding Wire |
||

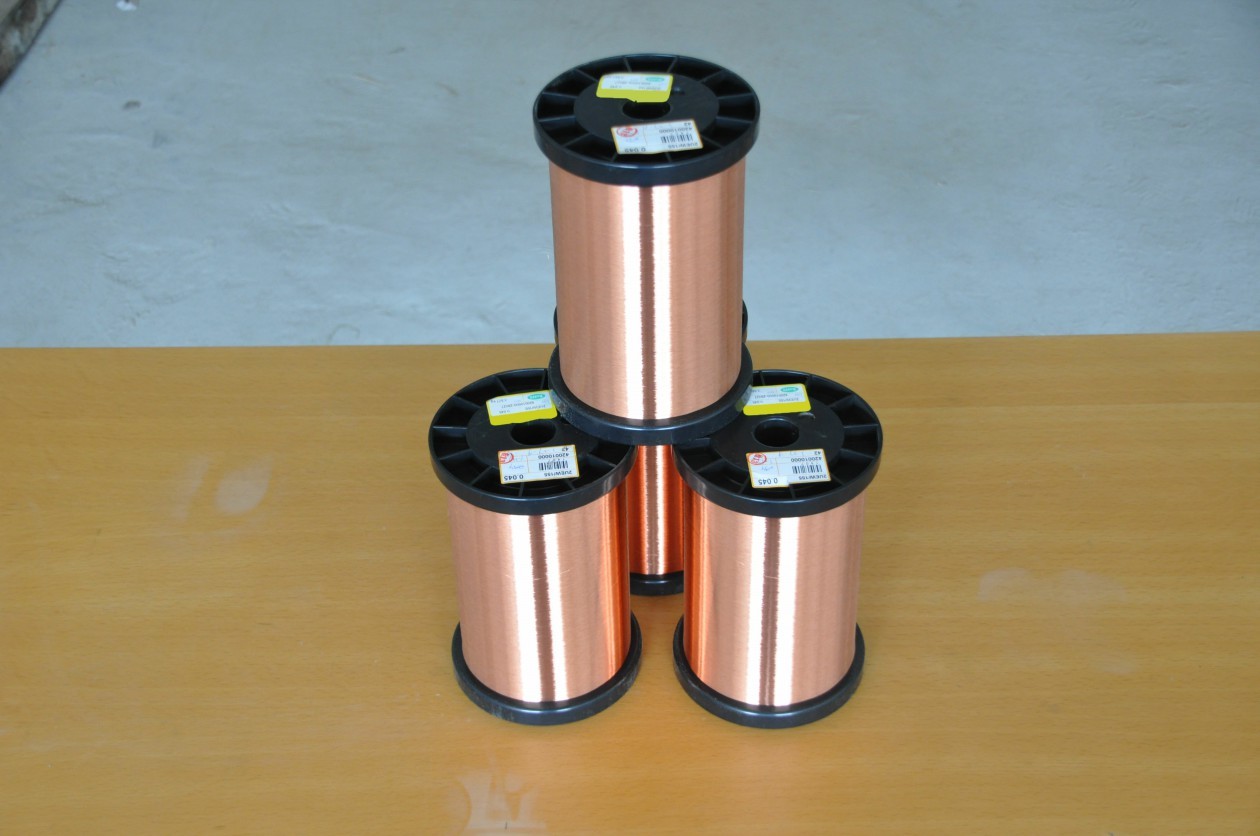

Polyurethane 2UEW-F 0.04mm Enameled Copper Winding Wire 2uew / 3uew
Our ultra-fine enameled copper wires have unique properties that make them essential components in precision electronic instruments. These wires are particularly well suited for use in miniature coils, transformers, and inductors, where space is at a premium and performance cannot be compromised. The fine diameter of our wires allows for complex windings and compact designs, allowing engineers to create more efficient and powerful devices. As technology continues to advance, the demand for smaller, more efficient components continues to grow, and our ultra-fine enameled wires are perfectly positioned to meet this need.
|
Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.05mm ± | 0.002mm | 0.050 | 0.050 | 0.050 |
| Thickness of Insulation | ≥0.005mm | 0.0080 | 0.0080 | 0.0080 | |
| Overall Diameter | ≤ 0.006 mm | 0.058 | 0.058 | 0.058 | |
| DC Resistance | ≤ 9.528 Ω/m | 8.753 | 8.713 | 8.723 | |
| Elongation | ≥ 12 % | 20 | 20 | 21 | |
| Breakdown Voltage | ≥275V | 863 | 747 | 832 | |
| Pin Hole | ≤ 8 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | / | 0 | 0 | 0 | |
|
Name |
Enamel Winding Wire 2uew / 3uew 155 Magnet Wire |
|
Key word |
Enamel Winding Wire 2uew / 3uew 155 Magnet Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.05mm |
