| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.03mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW-F Ultra Fine 0.03mm Enameled Copper Wire Magnet Wire For Earphone | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.03mm |
| Conductor Material: | Copper | Key Word: | 2UEW-F Ultra Fine 0.03mm Enameled Copper Wire Magnet Wire For Earphone |
| Type: | 2UEW-F Ultra Fine 0.03mm Enameled Copper Wire Magnet Wire For Earphone | ||
| Highlight: | Fine Magnet Enameled Copper Wire,0.03mm Enameled Copper Wire,Earphone Enameled Copper Wire |
||

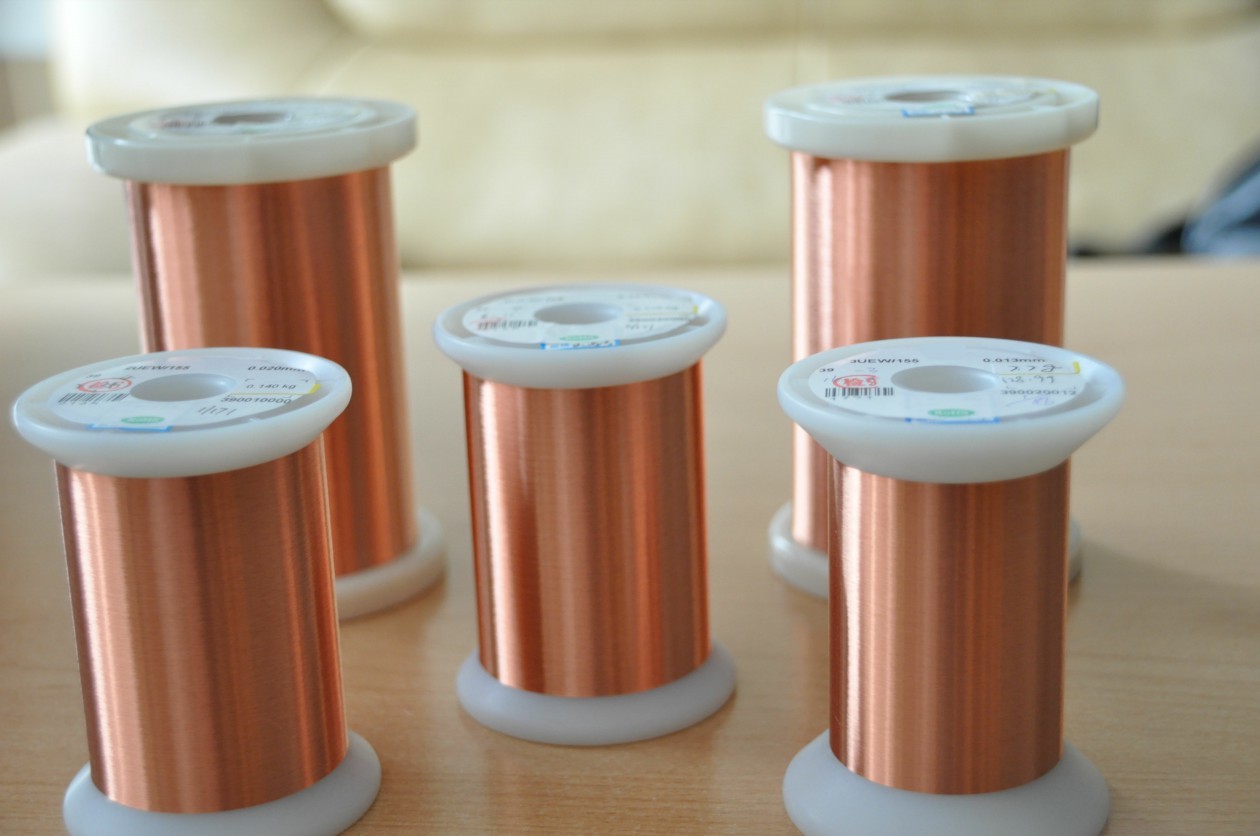

2UEW-F Ultra Fine 0.03mm Enameled Copper Wire Magnet Wire For Earphone
One of the outstanding features of this ultra-fine enameled wire is its extremely small diameter.
Our ultra-fine enameled copper wire (also known as magnet wire) is engineered to provide superior insulation without the risk of pinholes. This feature is critical for applications where electrical integrity is critical. The absence of pinholes ensures that the wire maintains its insulation properties, preventing short circuits and improving the overall safety of electronic devices. With temperature options of 155 and 180 degrees Celsius, our ultra-fine wire is ideal for applications that require reliable performance under varying thermal conditions.
|
Characteristics |
Technical requests |
|
Test Results |
|
|
|
Sample 1 |
Sample 2 |
||
|
Bare Wire Diameter |
0.030±0.001 |
0.030 |
0.030 |
|
|
Coating Thickness |
≥ 0.0025 mm |
0.0035 |
0.0035 |
|
|
Overall Diameter |
≤ 0.039 mm |
0.037 |
0.037 |
|
|
Conductor Resistance |
≤ 26.569Ω/m |
23.745 |
23.639 |
|
|
Elongation |
≥ 10 % |
15.4 |
14.7 |
|
|
Breakdown Voltage |
≥ 275V |
1350 |
1298 |
|
|
Pinhole Test |
≤ 2 holes/5m |
0 |
0 |
|
|
Continuity |
≤ 24 holes/20m |
0 |
0 |
|
|
Adherence |
no crack visible |
OK |
|
|
|
Cut-through |
200℃ 2minsno breakdown |
OK |
|
|
|
Heat Shock |
175±5℃/30minno crack |
OK |
|
|
|
Solderability |
390±5℃ 2second no slags |
OK |
|
|
