Product Name: | 2UEW-F/H 0.09mm Self-bonding Enameled Copper Wire For Coils | Thermal Rating: | 155 |
---|---|---|---|
Insulation Material: | Polyurethane | Diameter: | 0.09mm |
Conductor Material: | Copper | Key Word: | 2UEW-F/H 0.09mm Self-bonding Enameled Copper Wire For Coils |
Highlight: | Self-bonding Enameled Copper Wire,2UEW-F/H Enameled Copper Wire,0.09mm Enameled Copper Wire |

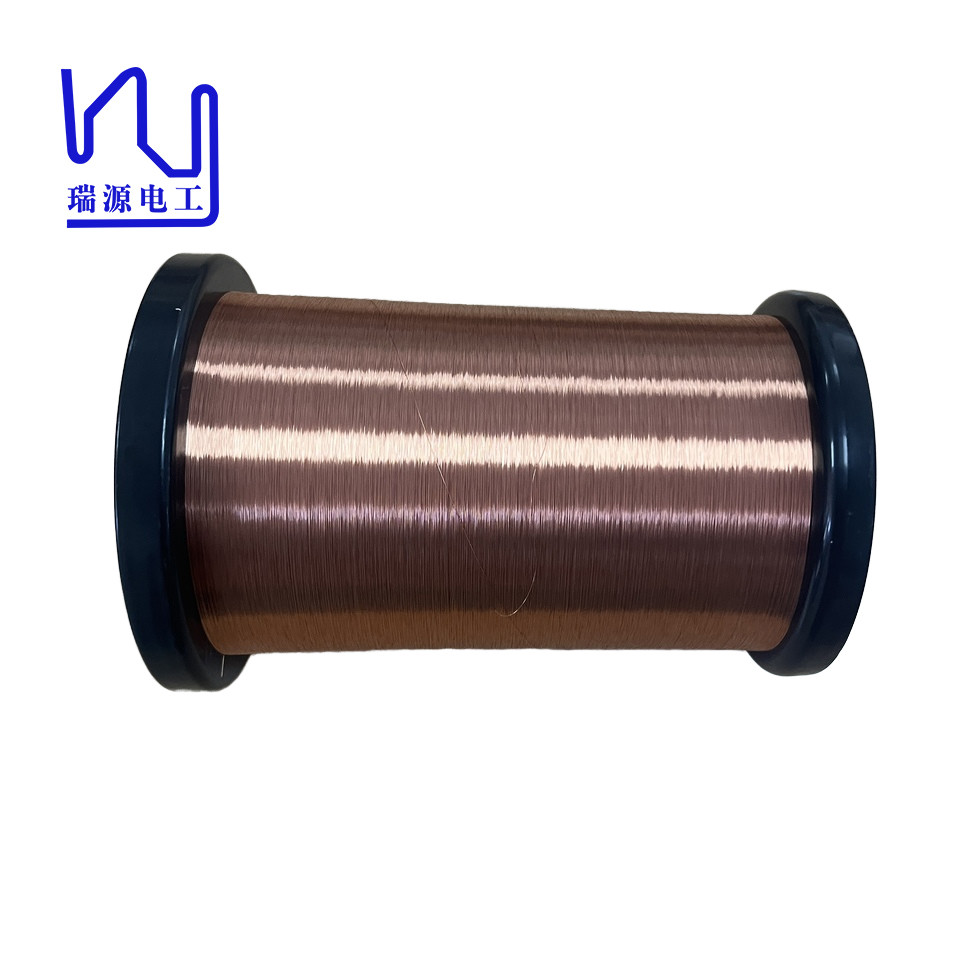

2UEW-F/H 0.09mm Self-bonding Enameled Copper Wire For Coils
The standout feature of our self-bonding enameled copper wire is its unique self-adhesive properties. This hot air type enameled copper wire simplifies the winding process, making coil production easier and more efficient. The self-adhesive ability means that once the wire is wound, it sticks to itself, providing a secure and stable structure without the need for additional adhesives. This feature is particularly useful in applications such as voice coil production, where precision and stability are critical. By reducing the need for external adhesives, our wire not only simplifies the manufacturing process, but also improves the overall performance of the final product.
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
|
|
Min |
Ave |
Max |
|
Conductor dimensions |
mm |
0.090±0.002 |
0.090 |
0.090 |
0.090 |
|
(Basecoat dimensions) Overall dimensions |
mm |
Max. 0.116 |
0.114 |
0.1145 |
0.115 |
|
Insulation Film Thickness |
mm |
Min0.010 |
0.014 |
0.0145 |
0.015 |
|
Bonding Film Thickness |
mm |
Min0.006 |
0.010 |
0.010 |
0.010 |
|
(50V/30m) Continuity of covering |
pcs. |
Max.60 |
Max.0 |
|||
Flexibility |
|
/ |
/ |
|||
Adherence |
|
|
Good |
|||
Breakdown Voltage |
V |
Min.3000 |
Min.4092 |
|||
Resistance to Softening (Cut Through) |
℃ |
Continue 2 times pass |
200℃/Good |
|||
(390℃±5℃) Solder test |
s |
/ |
/ |
|||
Bonding Strength |
g |
Min.9 |
19 |
|||
(20℃) Electrical Resistance |
Ω /Km |
Max.2834 |
2717 |
2718 |
2719 |
|
Elongation |
% |
Min.20 |
24 |
25 |
25 |
|
Breaking Load |
N |
Min |
/ |
/ |
/ |
|
Surface appearance |
|
Smooth coloury |
Good |
