| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | OCC |
| Minimum Order Quantity: | 1 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10/week |
| Product Name: | Custom High Quality 0.025-0.100 Ohno Continuous Casting 99.9999% OCC Wire For Audio Products | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.025mm |
| Conductor Material: | Copper | Key Word: | Custom High Quality 0.025-0.100 Ohno Continuous Casting 99.9999% OCC Wire For Audio Products |
| Highlight: | Audio Products OCC Wire,0.025-0.100 OCC Wire,Custom OCC Wire |
||

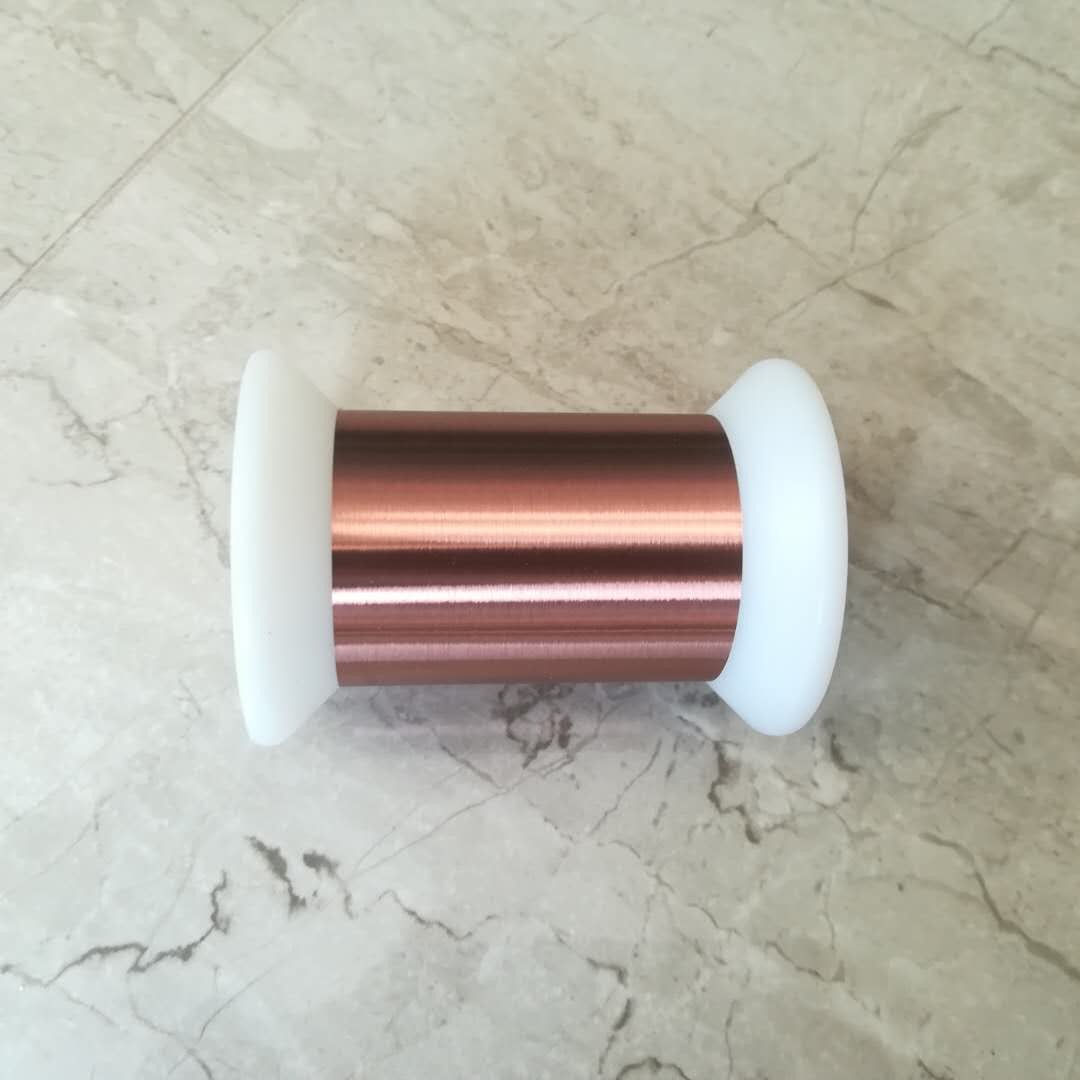

Custom High Quality 0.025-0.100 Ohno Continuous Casting 99.9999% OCC Wire For Audio Products
Thn terms of material characteristics, the biggest feature of single crystal copper is that there are relatively few grain boundaries and it has a columnar crystal structure. This characteristic means that when electrons are conducted in single crystal copper, there is less scattering, resulting in better electrical conductivity. At the same time, the columnar crystal structure also makes single crystal copper better able to withstand deformation when stressed, showing high flexibility.
|
Name |
6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
|
Key word |
6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
|
Thermal rating |
155 |
| Item | Tech requirement | Test value | ||
| Overall dimention mm | Max.0.035 | 0.035 | 0.034 | 0.0345 |
| Conductor Diameter mm |
0.025±0.002 |
0.025 |
0.025 |
0.025 |
|
Conductor resistance Ω/m
|
Tested value |
35.1 |
35.1 |
35.1 |
| Pinhole (5m) pcs |
Max 5 |
0 |
0 |
0 |
| Elongation % |
Min 10 |
16.8 |
15.2 |
16 |
| Solderability |
Max 2 |
OK |
||
