| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | OCC |
| Minimum Order Quantity: | 1 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10/week |
| Product Name: | 5N 6N Ohno Continuous Cast OCC 99.9999% High Purity Single Crystal Monocrystalline Enameled Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.025mm |
| Conductor Material: | Copper | Key Word: | 5N 6N Ohno Continuous Cast OCC 99.9999% High Purity Single Crystal Monocrystalline Enameled Copper Wire |
| Highlight: | Single Crystal OCC Enameled Copper Wire,5N 6N OCC Enameled Copper Wire,99.9999% OCC Enameled Copper Wire |
||

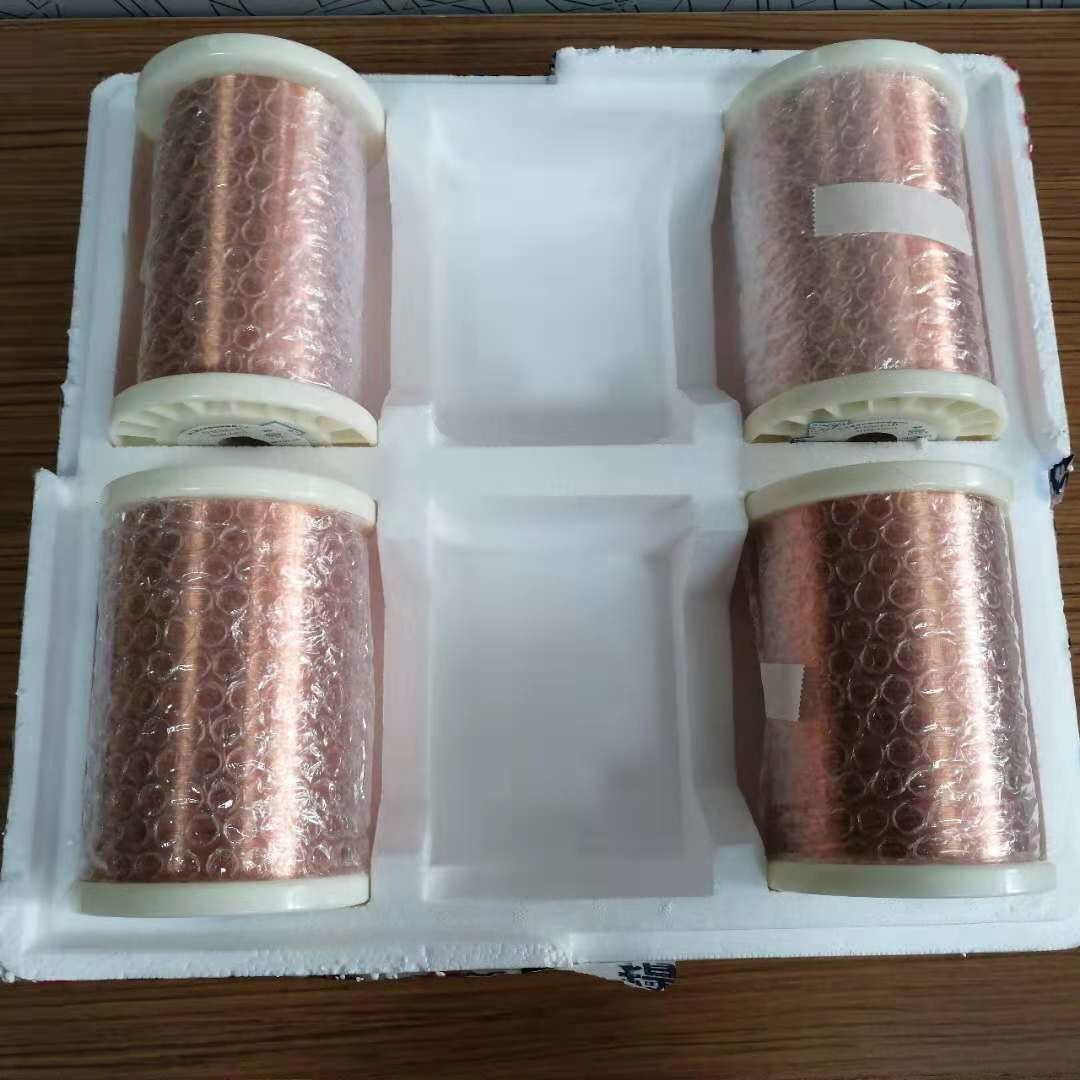

5N 6N Ohno Continuous Cast OCC 99.9999% High Purity Single Crystal Monocrystalline Enameled Copper Wire
The process of drawing has a significant influence on the crystal morphology. If drawing is applied to single crystal copper, a short and thick crystal may be compressed into a long and slender one. For instance, when an 8mm rod is drawn to an extremely small diameter such as a few hundredths of a millimeter, the crystals may experience fragmentation. In an extreme case, a single crystal could break into two, three, or more fragments depending on the drawing parameters. These parameters include the drawing speed and the ratio of the drawing dies. However, even after such fragmentation, the resulting crystals still maintain a columnar shape and continue to extend in a certain direction.
|
Name |
6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
|
Key word |
6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
|
Thermal rating |
155 |
| Item | Tech requirement | Test value | ||
| Overall dimention mm | Max.0.035 | 0.035 | 0.034 | 0.0345 |
| Conductor Diameter mm |
0.025±0.002 |
0.025 |
0.025 |
0.025 |
|
Conductor resistance Ω/m
|
Tested value |
35.1 |
35.1 |
35.1 |
| Pinhole (5m) pcs |
Max 5 |
0 |
0 |
0 |
| Elongation % |
Min 10 |
16.8 |
15.2 |
16 |
| Solderability |
Max 2 |
OK |
||
