| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | OCC |
| Minimum Order Quantity: | 1 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10/week |
| Product Name: | High Quality 0.025mm Ohno Continuous Casting 6N OCC Enameled Copper Wire For High-end Audio Equipment | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.025mm |
| Conductor Material: | Copper | Key Word: | High Quality 0.025mm Ohno Continuous Casting 6N OCC Enameled Copper Wire For High-end Audio Equipment |
| Highlight: | 6N OCC Enameled Copper Wire,Audio Equipment OCC Enameled Copper Wire,0.025mm OCC Enameled Copper Wire |
||

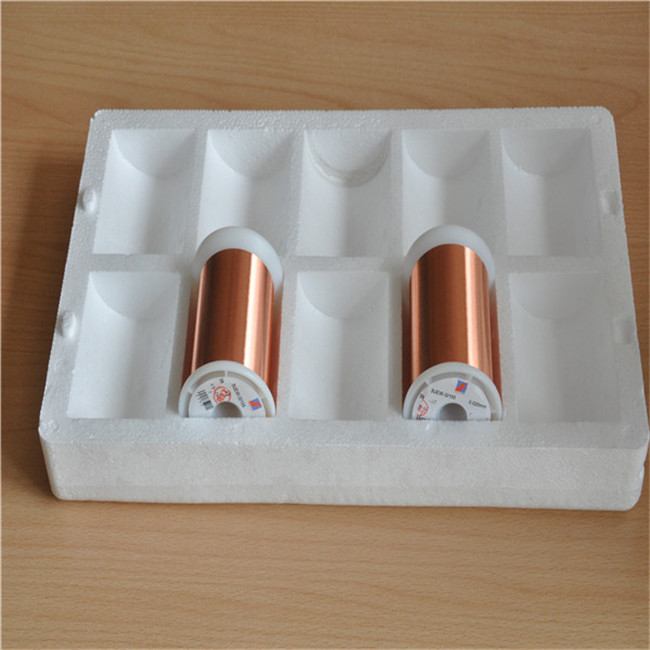

High Quality 0.025mm Ohno Continuous Casting 6N OCC Enameled Copper Wire For High-end audio equipment
Annealing is a crucial process in the treatment of single crystal copper materials. It is essential to understand that annealing does not have an impact on the quantity of single crystal copper crystals. When a single crystal copper undergoes annealing, the primary purpose is to relieve the thermal stress within the material. This process occurs without any alteration in the number of crystals. The crystal structure remains intact, neither increasing nor decreasing in quantity.
|
Name |
6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
|
Key word |
6N OCC 0.025mm Pure Self Bonding Enameled Copper Wire For Audio Cable |
|
Thermal rating |
155 |
| Item | Tech requirement | Test value | ||
| Overall dimention mm | Max.0.035 | 0.035 | 0.034 | 0.0345 |
| Conductor Diameter mm |
0.025±0.002 |
0.025 |
0.025 |
0.025 |
|
Conductor resistance Ω/m
|
Tested value |
35.1 |
35.1 |
35.1 |
| Pinhole (5m) pcs |
Max 5 |
0 |
0 |
0 |
| Elongation % |
Min 10 |
16.8 |
15.2 |
16 |
| Solderability |
Max 2 |
OK |
||
