| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Item: | AIW / UEW 180 / 220 Flat Wire 1.5mm Enameled Rectangular Copper Wire | Width: | 1.5mm |
|---|---|---|---|
| Product Name: | AIW / UEW 180 / 220 Flat Wire 1.5mm Enameled Rectangular Copper Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Audio | Thickness: | 0.1mm |
| Material: | Copper | Key Word: | AIW / UEW 180 / 220 Flat Wire 1.5mm Enameled Rectangular Copper Wire |
| Highlight: | 1.5mm Rectangular Copper Wire,UEW 220 Rectangular Copper Wire,AIW 180 Rectangular Copper Wire |
||

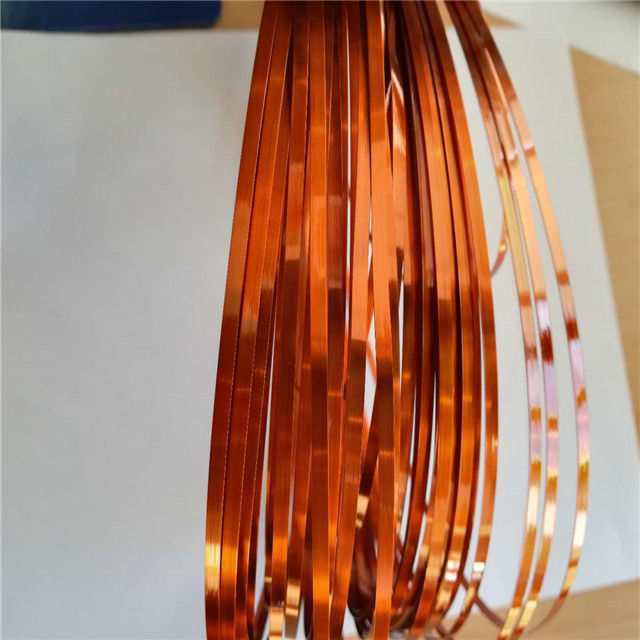

AIW / UEW 180 / 220 Flat Wire 1.5mm Enameled Rectangular Copper Wire
The automotive industry has also recognized the value of enameled flat copper wire. As vehicles become more advanced, the need for reliable electrical systems increases. This wire is used in a variety of automotive applications including electric motors, sensors and wiring harnesses. Its high temperature resistance is particularly beneficial in engine bays where temperatures can soar. By using enameled flat copper wire, manufacturers can ensure that their electrical systems remain functional and efficient even under extreme conditions. This reliability is critical to improving vehicle performance and safety, making it the first choice of automotive engineers.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
Elongation |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.100 | 1.500 | 0.025 | 0.025 | |||||
| Max | 0.109 | 1.560 | 0.040 | 0.040 | 0.150 | 1.600 | 124.770 | |||
| Min | 0.091 | 1.440 | 0.010 | 0.010 | 0.700 | 30 | ||||
| No. 1 | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 |
120.540 |
42 |
|
| No. 2 | 1.850 | |||||||||
| No. 3 | 1.360 | |||||||||
| No. 4 | 2.520 | |||||||||
| No. 5 | 2.001 | |||||||||
| No. 6 | ||||||||||
| No. 7 | ||||||||||
| No. 8 | ||||||||||
| No. 9 | ||||||||||
| No. 10 | ||||||||||
| Avg | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.810 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 | |||
| Max. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 2.520 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.200 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
