| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Item: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire | Width: | 1.5mm |
|---|---|---|---|
| Product Name: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Audio | Thickness: | 0.1mm |
| Material: | Copper | Key Word: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire |
| Highlight: | High Quality Rectangular Magnet Wire,Rectangular Magnet Wire,Enamel Coated flat magnet wire |
||

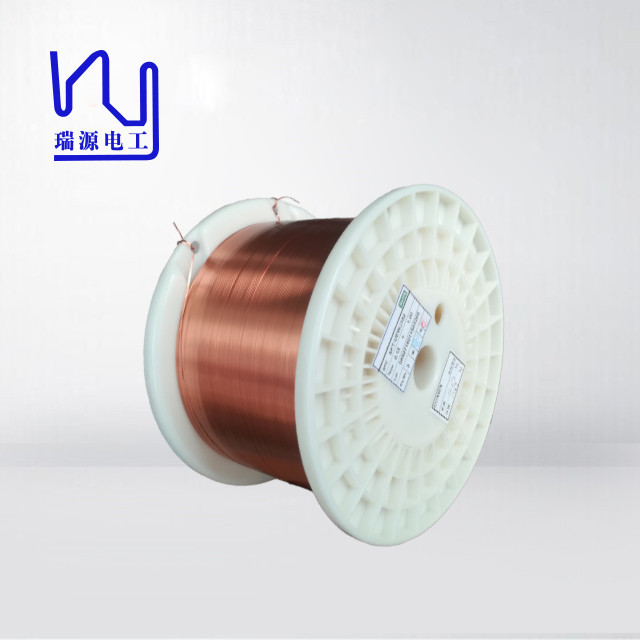

High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire
Enameled flat copper wire is widely used in industrial fields, especially in motor and transformer windings. In electric motors, wires are critical to creating the electromagnetic field that drives the motor's operation. Its high temperature resistance ensures that it can handle the heat generated during operation without degrading. Likewise, in transformers, the efficiency and durability of wires are critical to maintaining performance and reliability. The ability to withstand high temperatures makes it ideal for applications where heat build-up is a concern, ensuring equipment operates smoothly and efficiently.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
Elongation |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.100 | 1.500 | 0.025 | 0.025 | |||||
| Max | 0.109 | 1.560 | 0.040 | 0.040 | 0.150 | 1.600 | 124.770 | |||
| Min | 0.091 | 1.440 | 0.010 | 0.010 | 0.700 | 30 | ||||
| No. 1 | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 |
120.540 |
42 |
|
| No. 2 | 1.850 | |||||||||
| No. 3 | 1.360 | |||||||||
| No. 4 | 2.520 | |||||||||
| No. 5 | 2.001 | |||||||||
| No. 6 | ||||||||||
| No. 7 | ||||||||||
| No. 8 | ||||||||||
| No. 9 | ||||||||||
| No. 10 | ||||||||||
| Avg | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.810 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 | |||
| Max. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 2.520 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.200 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
