| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Item: | 0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire | Width: | 1.5mm |
|---|---|---|---|
| Product Name: | 0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Audio | Thickness: | 0.1mm |
| Material: | Copper | Key Word: | 0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire |
| Highlight: | 0.1 * 1.5mm Rectangular Copper Wire,Flat Enamelled Rectangular Copper Wire,Class 155 Rectangular Copper Wire |
||

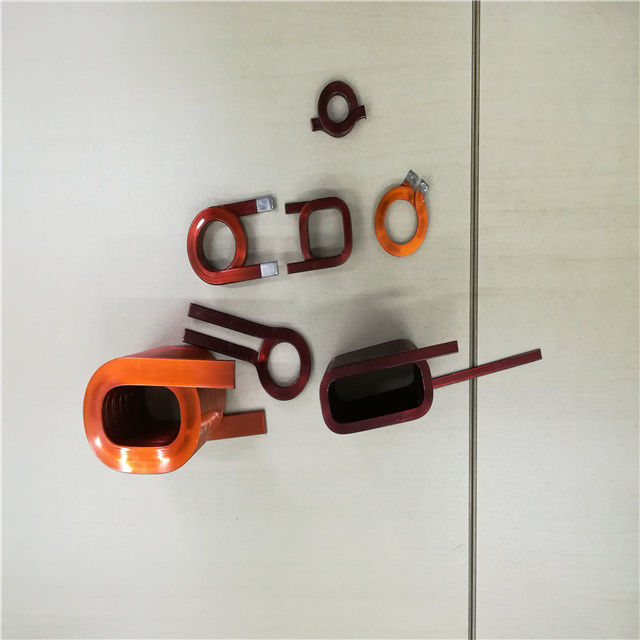

0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire
In the ever-evolving field of industrial applications, the need for reliable, efficient materials is crucial. Among them, high-temperature enameled flat copper wire stands out as the best choice for various fields such as motor and transformer windings and automotive applications. With an exceptional temperature resistance level of 220 degrees Celsius, this wire is able to withstand extreme conditions while maintaining optimal performance. This introduction will delve into the characteristics, advantages and diverse applications of enameled flat copper wire, highlighting its significance in modern industry.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
Elongation |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.100 | 1.500 | 0.025 | 0.025 | |||||
| Max | 0.109 | 1.560 | 0.040 | 0.040 | 0.150 | 1.600 | 124.770 | |||
| Min | 0.091 | 1.440 | 0.010 | 0.010 | 0.700 | 30 | ||||
| No. 1 | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 |
120.540 |
42 |
|
| No. 2 | 1.850 | |||||||||
| No. 3 | 1.360 | |||||||||
| No. 4 | 2.520 | |||||||||
| No. 5 | 2.001 | |||||||||
| No. 6 | ||||||||||
| No. 7 | ||||||||||
| No. 8 | ||||||||||
| No. 9 | ||||||||||
| No. 10 | ||||||||||
| Avg | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.810 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 | |||
| Max. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 2.520 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.200 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
