| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Item: | UL 0.1mm Enameled Coated Thin Copper Flat Wire Transformer Flexible Rectangular Winding Wire | Width: | 1.5mm |
|---|---|---|---|
| Product Name: | UL 0.1mm Enameled Coated Thin Copper Flat Wire Transformer Flexible Rectangular Winding Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Audio | Thickness: | 0.1mm |
| Material: | Copper | Key Word: | UL 0.1mm Enameled Coated Thin Copper Flat Wire Transformer Flexible Rectangular Winding Wire |
| Highlight: | UL Enameled Coated Copper Flat Wire,0.1mm Enameled Coated Copper Flat Wire,Transformer Flexible Rectangular Winding Wire |
||

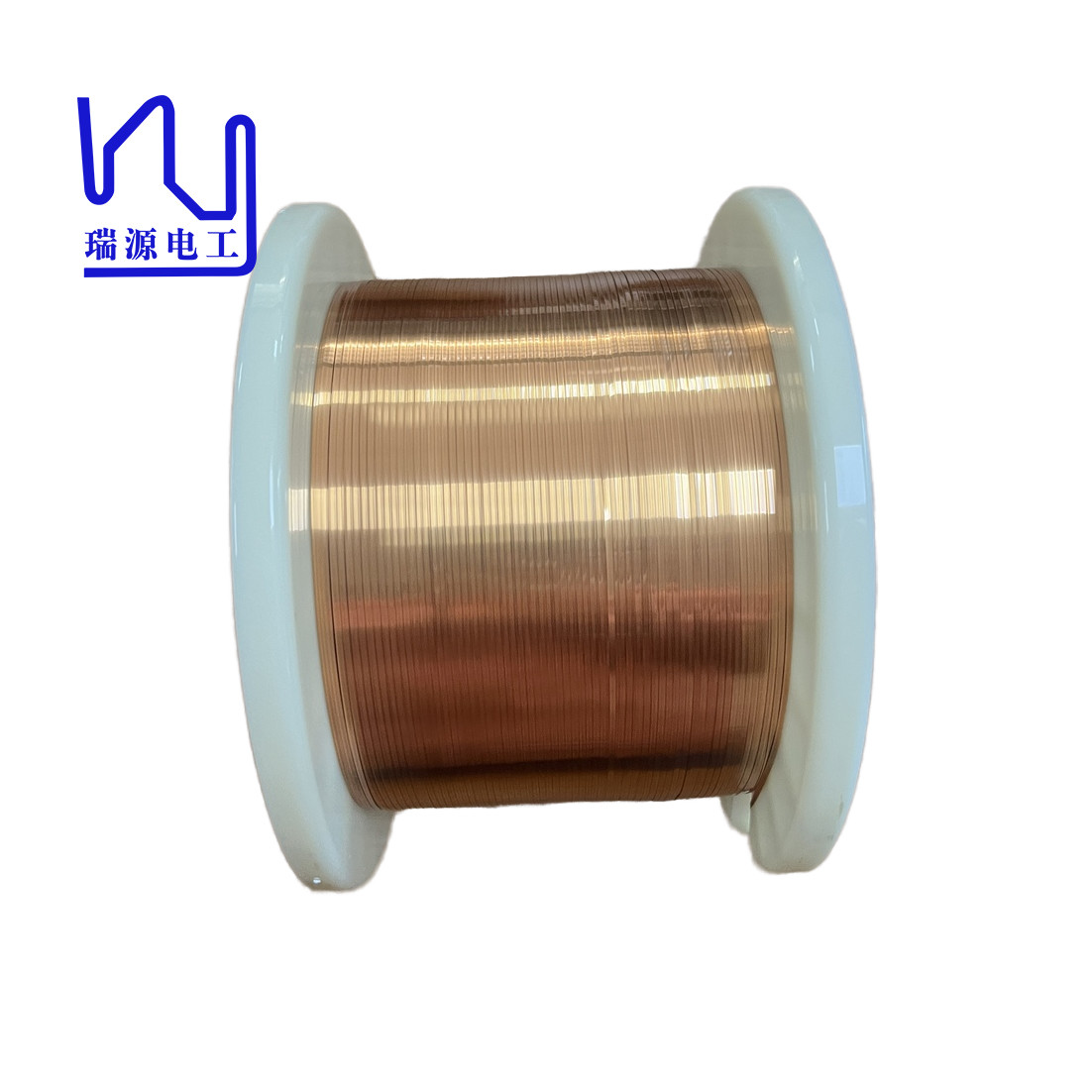

UL 0.1mm Enameled Coated Thin Copper Flat Wire Transformer Flexible Rectangular Winding Wire
Our ultra-fine enameled flat copper wire is an excellent choice for those looking for high-quality, customizable solutions for transformer windings and other electrical applications. With its excellent high temperature resistance, solderability and customization options, this line is designed to meet the changing needs of the industry. Trust our enameled flat wire to provide the performance and reliability your project needs. Experience the difference quality and customization make in your electrical designs and take your applications to new heights with our enameled flat copper wire.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
Elongation |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.100 | 1.500 | 0.025 | 0.025 | |||||
| Max | 0.109 | 1.560 | 0.040 | 0.040 | 0.150 | 1.600 | 124.770 | |||
| Min | 0.091 | 1.440 | 0.010 | 0.010 | 0.700 | 30 | ||||
| No. 1 | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 |
120.540 |
42 |
|
| No. 2 | 1.850 | |||||||||
| No. 3 | 1.360 | |||||||||
| No. 4 | 2.520 | |||||||||
| No. 5 | 2.001 | |||||||||
| No. 6 | ||||||||||
| No. 7 | ||||||||||
| No. 8 | ||||||||||
| No. 9 | ||||||||||
| No. 10 | ||||||||||
| Avg | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.810 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 | |||
| Max. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 2.520 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.200 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
