| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Item: | 1.5*0.10mm Ultra Fine Flat Enameled Copper Wire | Width: | 1.5mm |
|---|---|---|---|
| Product Name: | 1.5*0.10mm Ultra Fine Flat Enameled Copper Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Audio | Thickness: | 0.1mm |
| Material: | Copper | Key Word: | 1.5*0.10mm Ultra Fine Flat Enameled Copper Wire |
| Highlight: | 1.5*0.10mm Flat Enameled Copper Wire,Ultra Fine Flat Enameled Copper Wire,Flat rectangular copper wire |
||

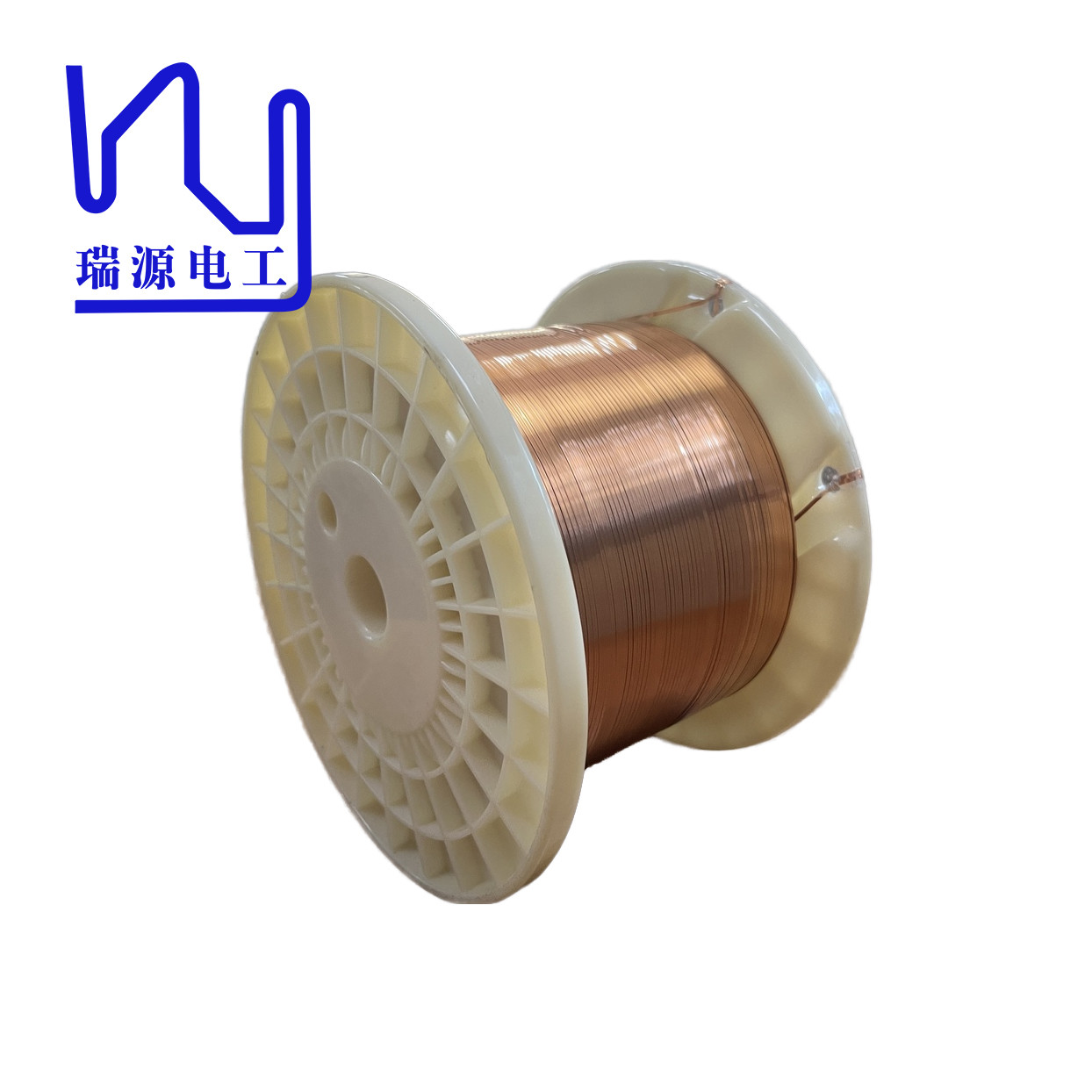

1.5.0*0.10mm Ultra Fine Flat Enameled Copper Wire
Our ultra-fine enameled flat copper wire, designed to meet the stringent requirements of modern electrical applications. This rectangular enamelled copper wire is 1.5 mm wide and only 0.1 mm thick and is designed for optimal performance in transformer windings and other critical electrical components. The unique low-profile design allows for efficient space utilization, making it ideal for applications where size and weight are critical. Not only are our enamelled flat wires lightweight, they also offer excellent solderability, ensuring seamless integration into your project.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
Elongation |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.100 | 1.500 | 0.025 | 0.025 | |||||
| Max | 0.109 | 1.560 | 0.040 | 0.040 | 0.150 | 1.600 | 124.770 | |||
| Min | 0.091 | 1.440 | 0.010 | 0.010 | 0.700 | 30 | ||||
| No. 1 | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 |
120.540 |
42 |
|
| No. 2 | 1.850 | |||||||||
| No. 3 | 1.360 | |||||||||
| No. 4 | 2.520 | |||||||||
| No. 5 | 2.001 | |||||||||
| No. 6 | ||||||||||
| No. 7 | ||||||||||
| No. 8 | ||||||||||
| No. 9 | ||||||||||
| No. 10 | ||||||||||
| Avg | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.810 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 1.320 | |||
| Max. reading | 0.101 | 1.537 | 0.021 | 0.012 | 0.143 | 1.560 | 2.520 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.200 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
