| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Item: | AIW Class 220 0.5 Enameled Flat Copper Winding Wire | Width: | 0.5mm |
|---|---|---|---|
| Product Name: | AIW Class 220 0.5 Enameled Flat Copper Winding Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Audio | Thickness: | 0.03mm |
| Material: | Copper | Key Word: | AIW Class 220 0.5 Enameled Flat Copper Winding Wire |
| Highlight: | 0.5 Enameled Flat Copper Winding Wire,220 Enameled Flat Copper Winding Wire,AIW Enameled Flat Copper Winding Wire |
||

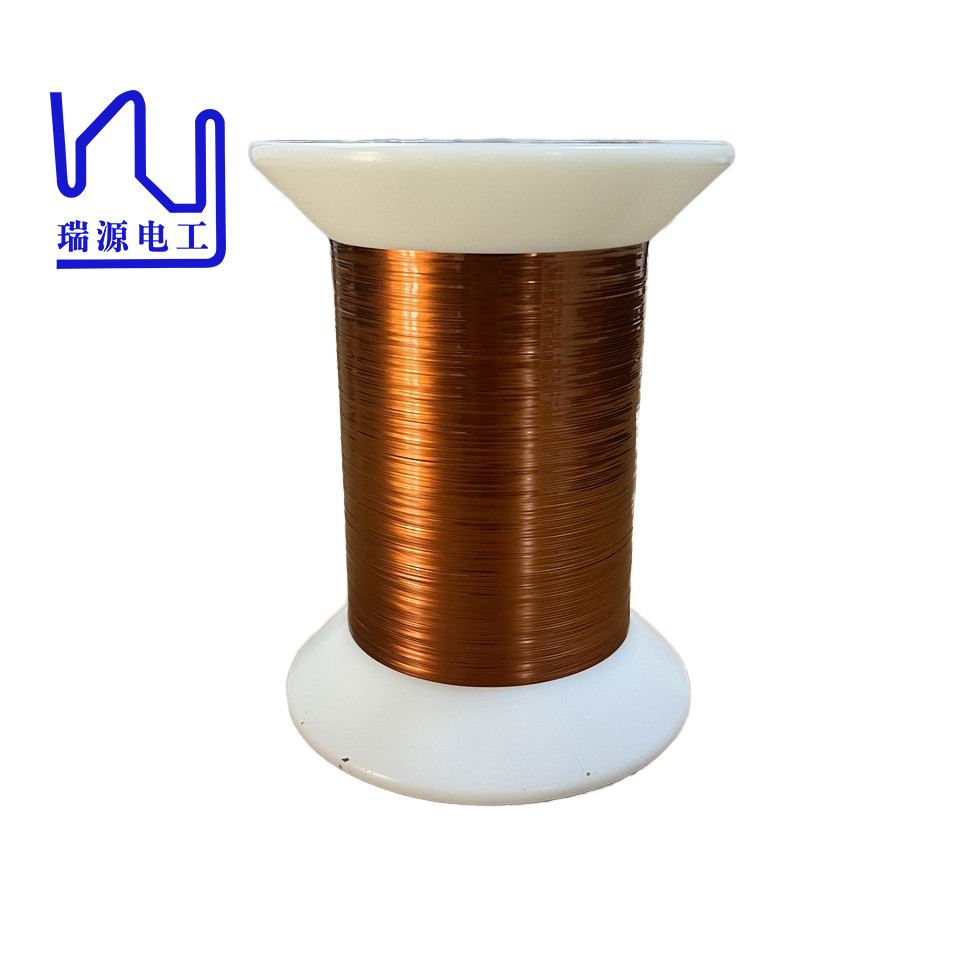

AIW class 220 0.5 Enameled Flat Copper Winding Wire
In the world of audio, the importance of high-quality wiring cannot be overstated. The transmission of audio signals is extremely sensitive to the materials and construction of the cables used. This rectangular enameled copper wire is carefully engineered to minimize signal loss and interference, ensuring that every note and nuance of your audio experience is preserved. This is especially important for high-end audio cables, where the fidelity of sound reproduction is paramount. By using our flat enameled copper wire, users can achieve superior sound quality, taking their listening experience to new heights.
| Item |
Conductor dimension |
Unilateral insulation thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | |
|
SPEC |
AVE | 0.030 | 0.500 | 0.005 | 0.039 | 0.039 | 0.510 | ||
| Max | 0.034 | 0.0520 | 0.006 | 0.043 | 0.043 | 0.530 | 1398 | ||
| Min | 0.091 | 1.940 | 0.010 | 0.010 | 0.035 | 0.490 | 0.500 | 989 | |
| No. 1 | 0.104 | 1.992 | 0.020 | 0.013 | 0.038 | 0.513 | 0.965 |
1164 |
|
| No. 2 | 0.725 | ||||||||
| No. 3 | 0.852 | ||||||||
| No. 4 | 0.632 | ||||||||
| No. 5 | 0.864 | ||||||||
| Ave | 0.030 | 0.501 | 0.004 | 0.006 | 0.038 | 0.513 | 0.808 | ||
| NO of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||
| Min. reading | 0.030 | 0.501 | 0.004 | 0.006 | 0.038 | 0.513 | 0.632 | ||
| Max. reading | 0.030 | 0.501 | 0.004 | 0.006 | 0.038 | 0.513 | 0.965 | ||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.333 | ||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | |
