| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | OCC |
| Minimum Order Quantity: | 1 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10/week |
| Product Name: | 6N OCC 0.025mm Pure Copper Wire Bondable Enameled Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.025mm |
| Conductor Material: | Copper | Key Word: | 6N OCC 0.025mm Pure Copper Wire Bondable Enameled Copper Wire |
| Highlight: | Pure Copper OCC Wire,HIFI OCC Wire,0.025mm OCC Wire |
||

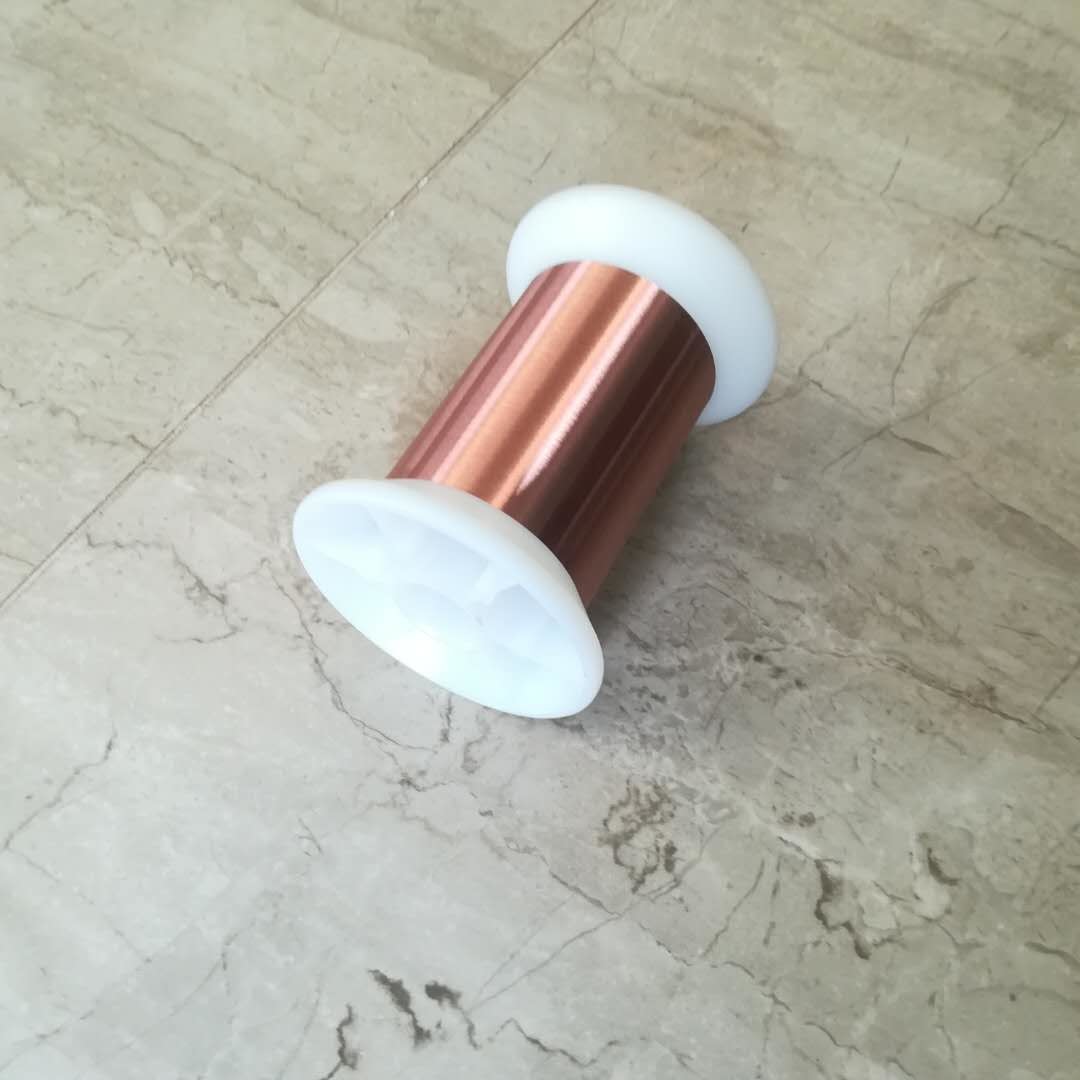

6N OCC 0.025mm Pure Copper Wire Bondable Enameled Copper Wire For HIFI
Our self-adhesive enamelled copper wire has applications beyond audio cables; it is a versatile solution for a variety of high-end audio applications. From speaker wire to interconnect wires, this ultra-thin wire is ideal for crafting custom cables to meet the specific needs of discerning audiophiles.
|
Name |
6N OCC 0.025mm Pure Copper Wire Bondable Enameled Copper Wire For HIFI |
|
Key word |
6N OCC 0.025mm Pure Copper Wire Bondable Enameled Copper Wire For HIFI |
|
Thermal rating |
155 |
| Item | Tech requirement | Test value | ||
| Overall dimention mm | Max.0.035 | 0.035 | 0.034 | 0.0345 |
| Conductor Diameter mm |
0.025±0.002 |
0.025 |
0.025 |
0.025 |
|
Conductor resistance Ω/m
|
Tested value |
35.1 |
35.1 |
35.1 |
| Pinhole (5m) pcs |
Max 5 |
0 |
0 |
0 |
| Elongation % |
Min 10 |
16.8 |
15.2 |
16 |
| Solderability |
Max 2 |
OK |
||
