| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | UL 5mm Enameled Coated Thin Copper Flat Wire Rectangular Winding Wire | Width: | 5.0mm |
|---|---|---|---|
| Product Name: | UL 5mm Enameled Coated Thin Copper Flat Wire Rectangular Winding Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 1.5mm |
| Material: | Copper | Key Word: | UL 5mm Enameled Coated Thin Copper Flat Wire Rectangular Winding Wire |
| Highlight: | 5mm Rectangular Winding Wire,UL Rectangular Winding Wire,Enameled Coated Rectangular Winding Wire |
||

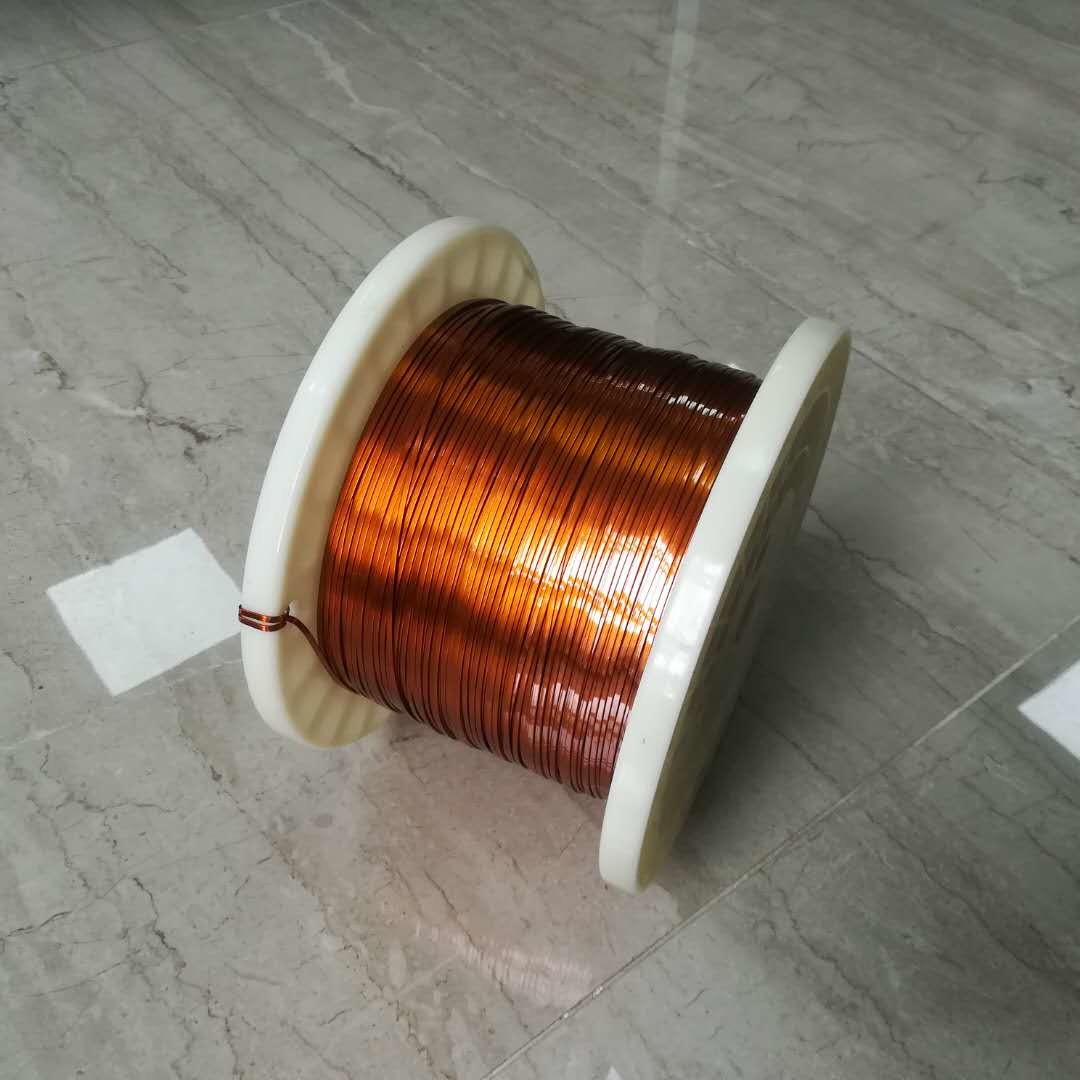

UL 5mm Enameled Coated Thin Copper Flat Wire Rectangular Winding Wire
As the industry continues to innovate and push technological boundaries, the importance of high-quality materials such as enameled flat copper wire cannot be overstated. Its unique combination of electrical conductivity, temperature resistance and mechanical durability makes it an indispensable component in a variety of applications.
Whether in the industrial or automotive sectors, such wires will play an important role in developing more efficient and reliable systems. Looking to the future, the continued development of enameled flat copper wire will undoubtedly contribute to technological advancement and ensure that various industries can meet future challenges with confidence.
| Model | Size(mm) |
Conductor Dimension(mm) |
Thickness of single insulation(mm) | Overall Dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) |
Pinhole |
Elongation |
Soderability | ||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | ||||||||||
| SFT-AIW | 1.50x5.00 |
|
±0.06 | 1.500 | ±0.03 | 0.025±0.015 | Max.5.1 | Max.1.58 | 2.960 | 0.7 Min | 3Max. | 30 Min. | 350 ℃ | ||
