| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | 1.5x5mm AIW 220 Rectangular Flat Enameled Copper Wire Winding Coils | Width: | 5.0mm |
|---|---|---|---|
| Product Name: | 1.5x5mm AIW 220 Rectangular Flat Enameled Copper Wire Winding Coils | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 1.5mm |
| Material: | Copper | Key Word: | 1.5x5mm AIW 220 Rectangular Flat Enameled Copper Wire Winding Coils |
| Highlight: | 1.5x5mm Rectangular Copper Wire,220 Rectangular Copper Wire,AIW Rectangular Copper Wire |
||

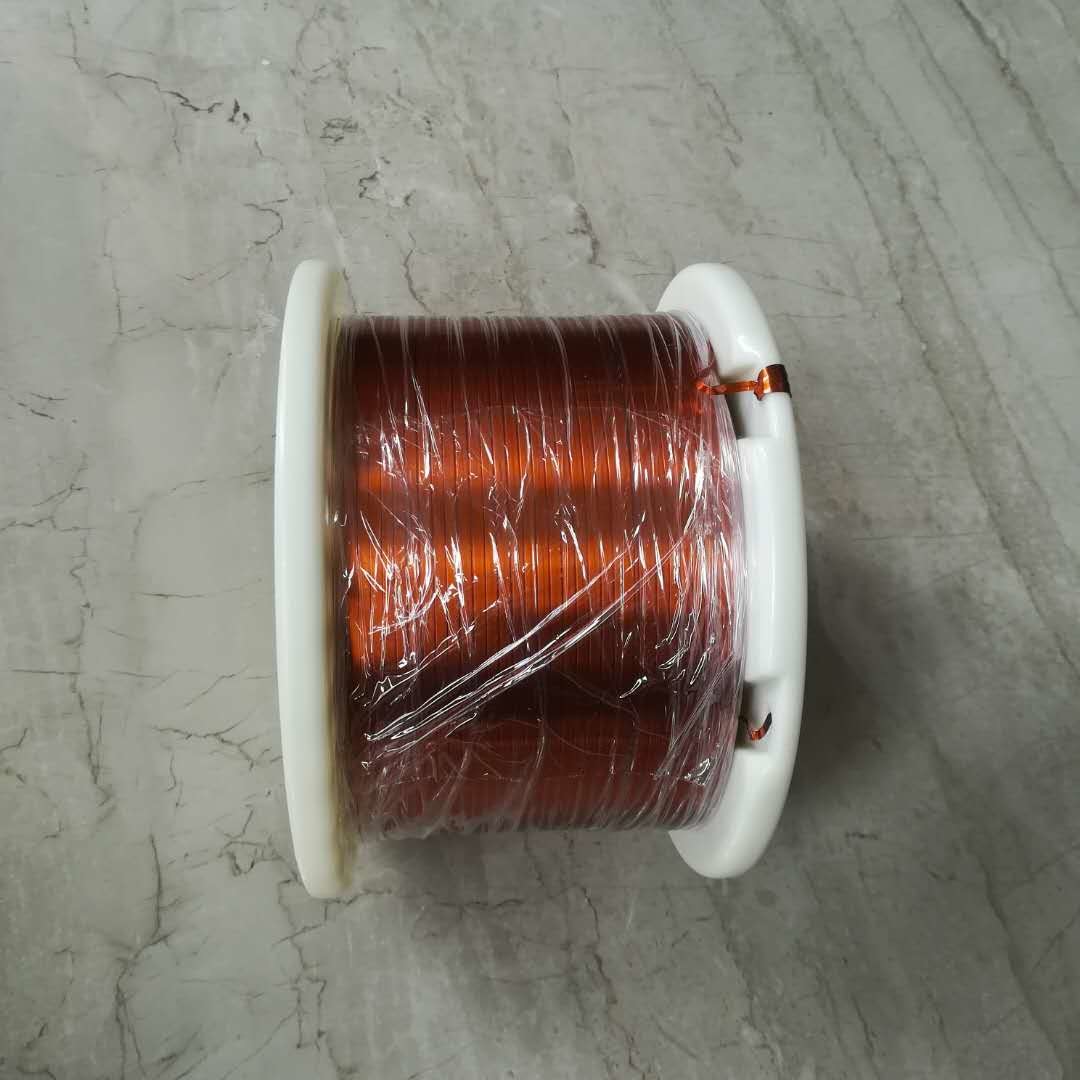

1.5x5mm AIW 220 Rectangular Flat Enameled Copper Wire Winding Coils
The automotive industry has also recognized the value of enameled flat copper wire.
As vehicles become more advanced, the need for reliable electrical systems increases. This wire is used in a variety of automotive applications including electric motors, sensors and wiring harnesses. Its high temperature resistance is particularly beneficial in engine bays where temperatures can soar.
By using enameled flat copper wire, manufacturers can ensure that their electrical systems remain functional and efficient even under extreme conditions. This reliability is critical to improving vehicle performance and safety, making it the first choice of automotive engineers.
| Model | Size(mm) |
Conductor Dimension(mm) |
Thickness of single insulation(mm) | Overall Dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) |
Pinhole |
Elongation |
Soderability | ||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | ||||||||||
| SFT-AIW | 1.50x5.00 |
|
±0.06 | 1.500 | ±0.03 | 0.025±0.015 | Max.5.1 | Max.1.58 | 2.960 | 0.7 Min | 3Max. | 30 Min. | 350 ℃ | ||
