| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.03mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Ultra Fine Polyurethane 0.03mm 155°C/180°C Enamelled Round Copper Wire High Purity Copper | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.03mm |
| Conductor Material: | Copper | Key Word: | Custom Ultra Fine Polyurethane 0.03mm 155°C/180°C Enamelled Round Copper Wire High Purity Copper |
| Type: | Custom Ultra Fine Polyurethane 0.03mm 155°C/180°C Enamelled Round Copper Wire High Purity Copper | ||
| Highlight: | High Purity Enamelled Round Copper Wire,Custom Enamelled Round Copper Wire,Polyurethane Enamelled Round Copper Wire |
||

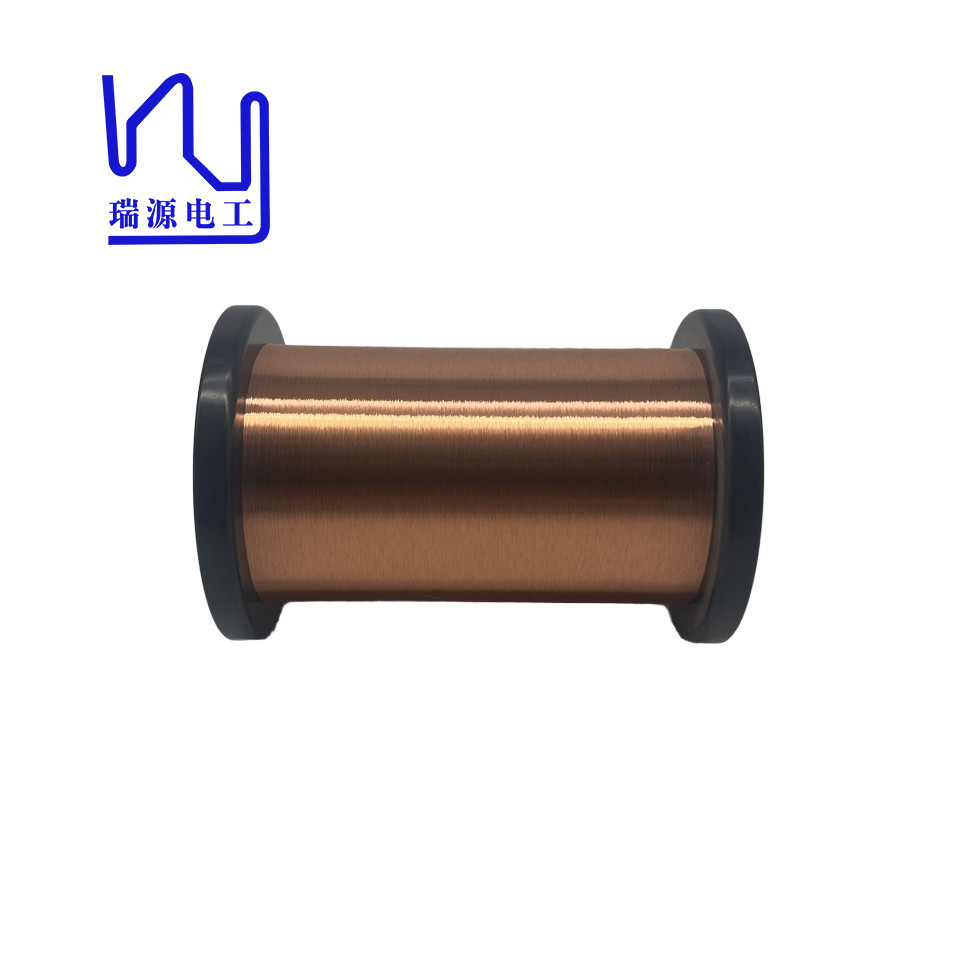

Custom Ultra Fine Polyurethane 0.03mm 155°C/180°C Enamelled Round Copper Wire High Purity Copper
The high temperature resistance make the enameled copper wire suitable for a wide range of electronic applications. Whether you're designing a new smartwatch, developing high-quality headphones, or creating the next generation of tablets, this enameled copper wire delivers the performance and reliability you need. Its small size and high durability make it ideal for any application where space and performance are critical.
| Characteristics |
Technical requests |
Test Results | ||
| Sample 1 | Sample 2 | |||
| Bare Wire Diameter | 0.030±0.001 | 0.030 | 0.030 | |
| Coating Thickness | ≥ 0.0025 mm | 0.0035 | 0.0035 | |
| Overall Diameter | ≤ 0.039 mm | 0.037 | 0.037 | |
| Conductor Resistance | ≤ 26.569Ω/m | 23.745 | 23.639 | |
| Elongation | ≥ 10 % | 15.4 | 14.7 | |
| Breakdown Voltage | ≥ 275V | 1350 | 1298 | |
| Pinhole Test | ≤ 2 holes/5m | 0 | 0 | |
| Continuity | ≤ 24 holes/20m | 0 | 0 | |
| Adherence | no crack visible | OK | ||
| Cut-through | 200℃ 2minsno breakdown | OK | ||
| Heat Shock | 175±5℃/30minno crack | OK | ||
| Solderability | 390±5℃ 2second no slags | OK | ||
