| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.03mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.03mm |
| Conductor Material: | Copper | Key Word: | Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products |
| Type: | Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products | ||
| Highlight: | Custom Enamelled Copper Wire,Solderable Winding Enamelled Copper Wire,Electronic Products Enamelled Copper Wire |
||

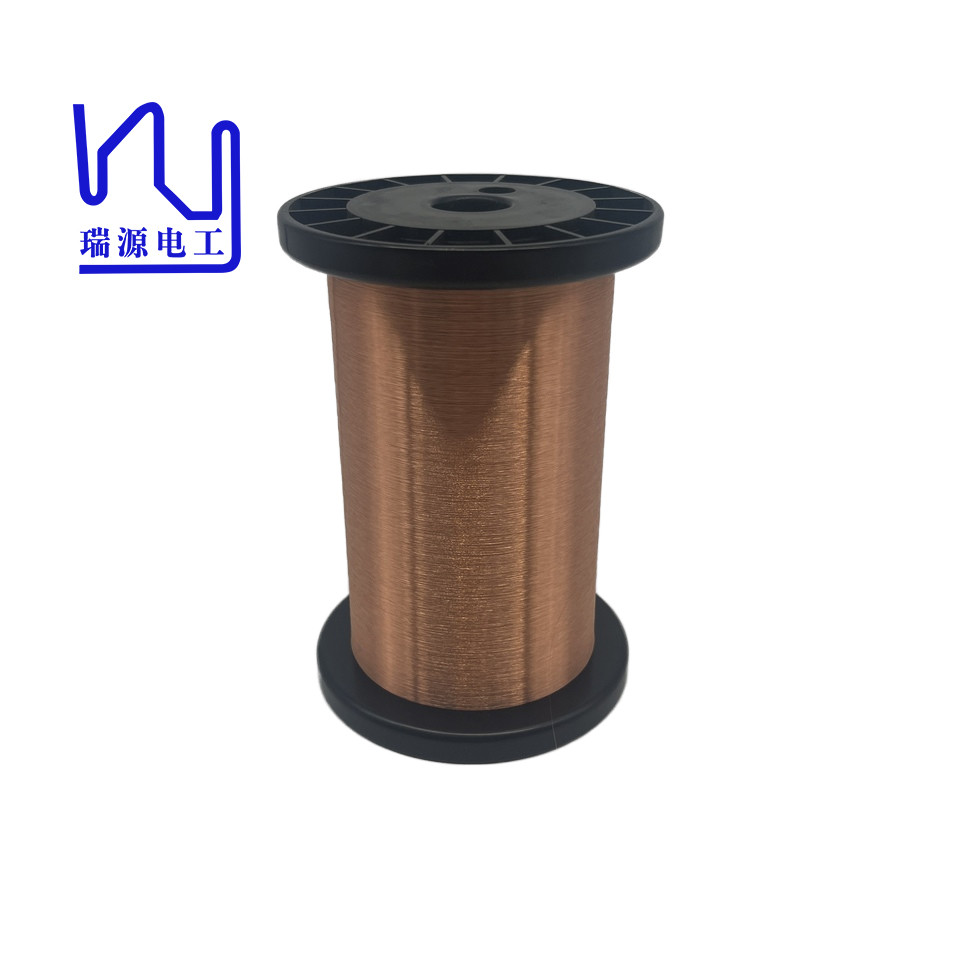

Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products
The polyurethane enamel coating on this wire is another key feature that sets it apart. This coating provides excellent insulation, ensuring the wire can withstand high temperatures without degrading.
With a standard temperature rating of 155 degrees Celsius and an optional upgrade to 180 degrees Celsius, the wire operates reliably in even the most demanding conditions. This makes it an excellent choice for applications such as headphone cables and tablets where durability and performance are critical.
| Characteristics |
Technical requests |
Test Results | ||
| Sample 1 | Sample 2 | |||
| Bare Wire Diameter | 0.030±0.001 | 0.030 | 0.030 | |
| Coating Thickness | ≥ 0.0025 mm | 0.0035 | 0.0035 | |
| Overall Diameter | ≤ 0.039 mm | 0.037 | 0.037 | |
| Conductor Resistance | ≤ 26.569Ω/m | 23.745 | 23.639 | |
| Elongation | ≥ 10 % | 15.4 | 14.7 | |
| Breakdown Voltage | ≥ 275V | 1350 | 1298 | |
| Pinhole Test | ≤ 2 holes/5m | 0 | 0 | |
| Continuity | ≤ 24 holes/20m | 0 | 0 | |
| Adherence | no crack visible | OK | ||
| Cut-through | 200℃ 2minsno breakdown | OK | ||
| Heat Shock | 175±5℃/30minno crack | OK | ||
| Solderability | 390±5℃ 2second no slags | OK | ||
